MPV L4-2606cc 2.6L SOHC
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Power Distribution
Power Distribution

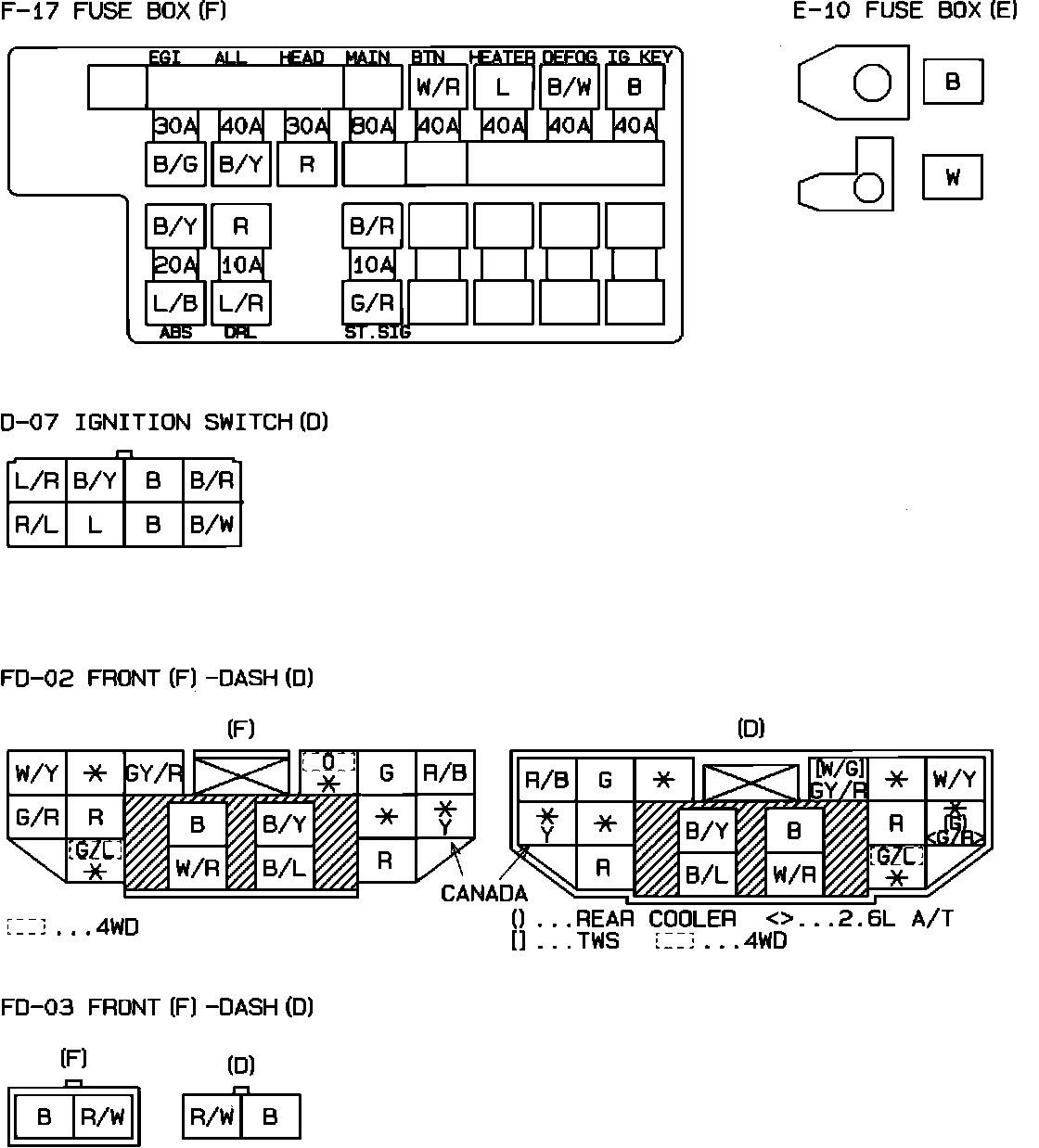

Power Distribution. Connector Identification:
