Control Module, A/T

Multi Mode 4WD Control. Connector Identification:

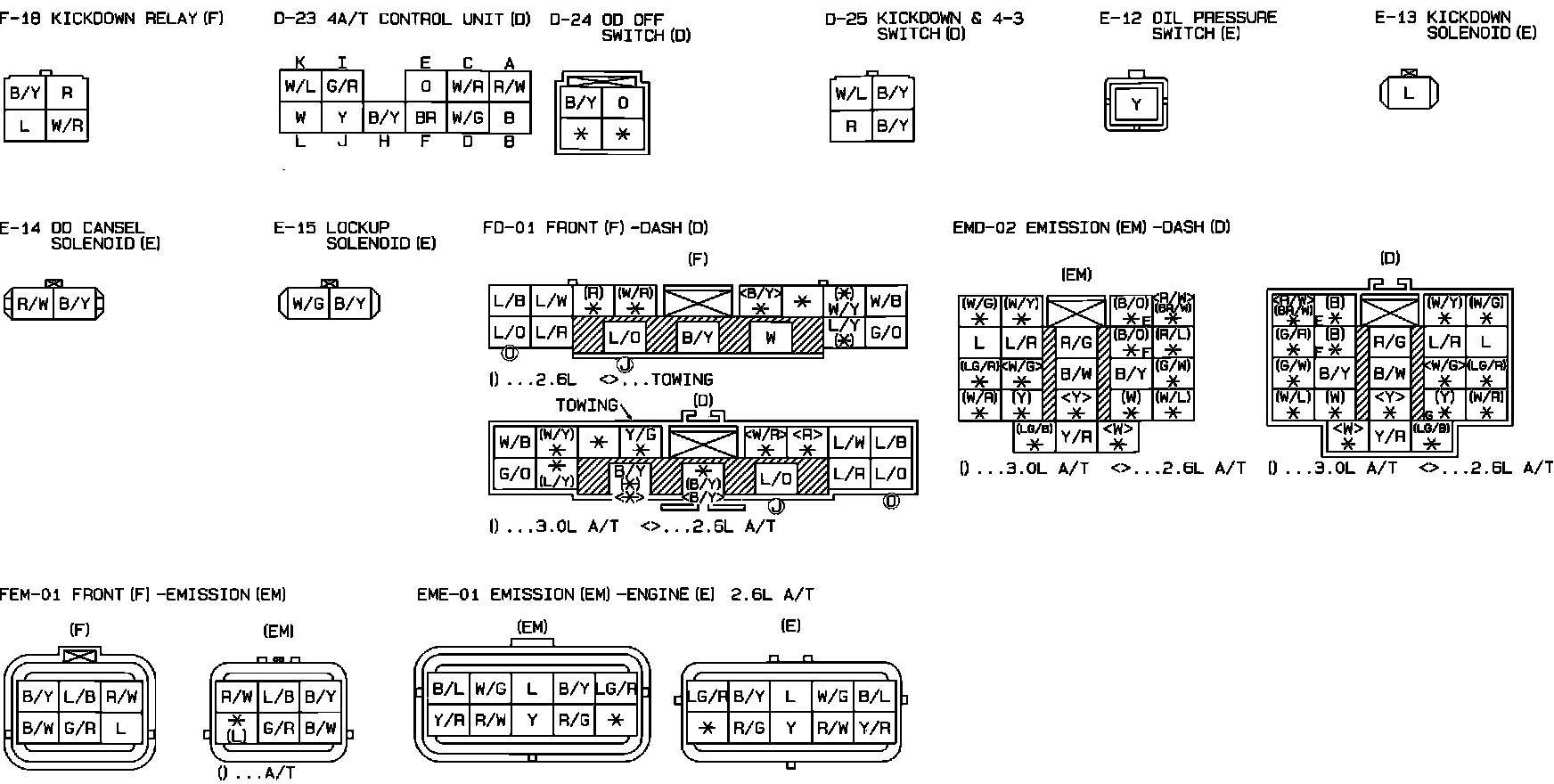

4A/T Control System. Connector Identification:
