Connector Locations

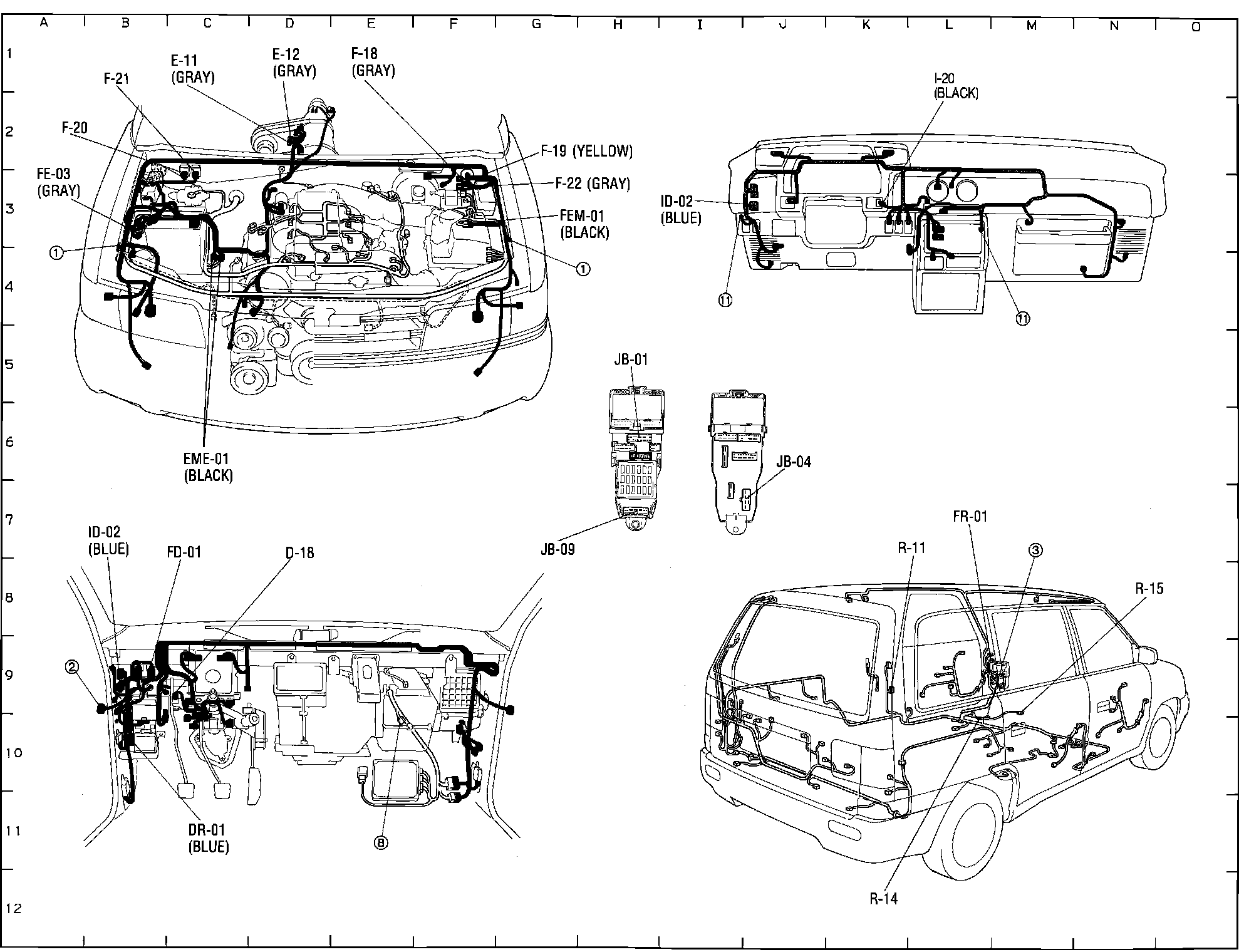

Multi Mode 4WD Control. Harness Locations:

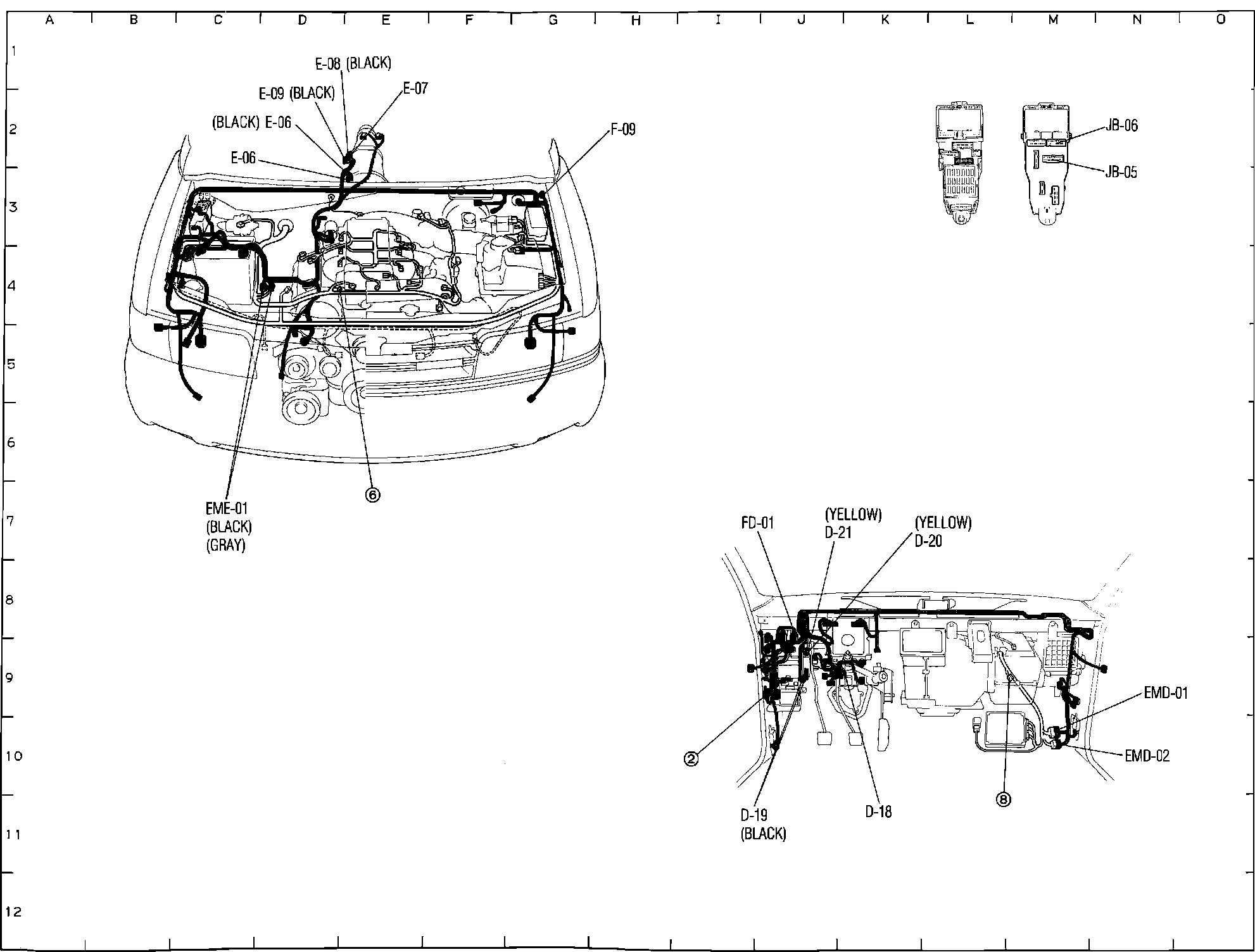

Automatic Transmission Control Unit. Harness Locations:
