Mazda
>>
1990
>>
929 V6-3.0L SOHC
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Power Window Switch
Power Window Switch

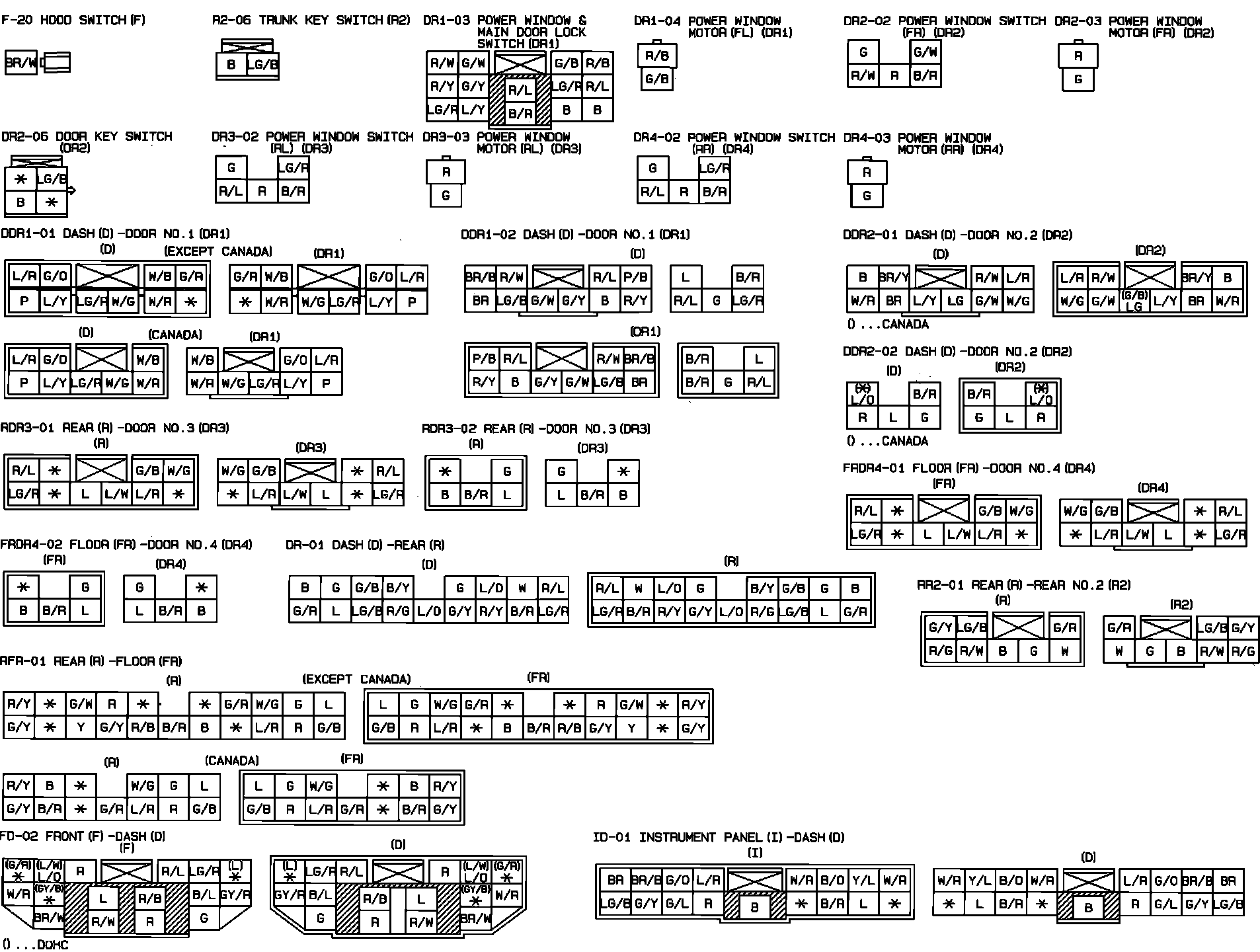

Power Mirror & Theft Deterrent. Connector Identification:
