Home >> Mazda >> 1990 >> 929 V6-3.0L DOHC >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Engine >> Cylinder Head Assembly >> System Specifications >> Torque Specifications

Torque Specifications

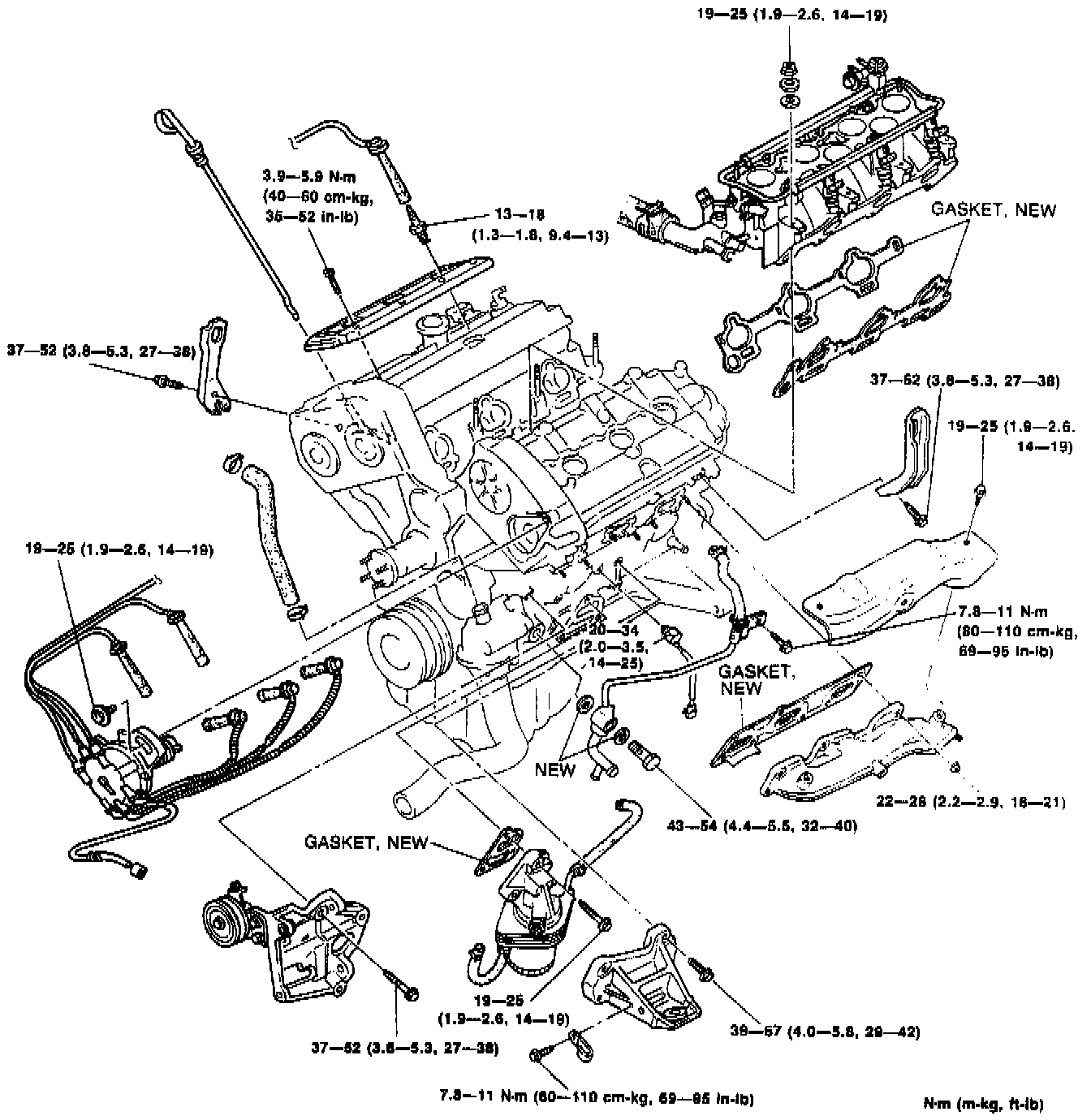

Intake & Exhaust Manifolds:











Upper Engine:

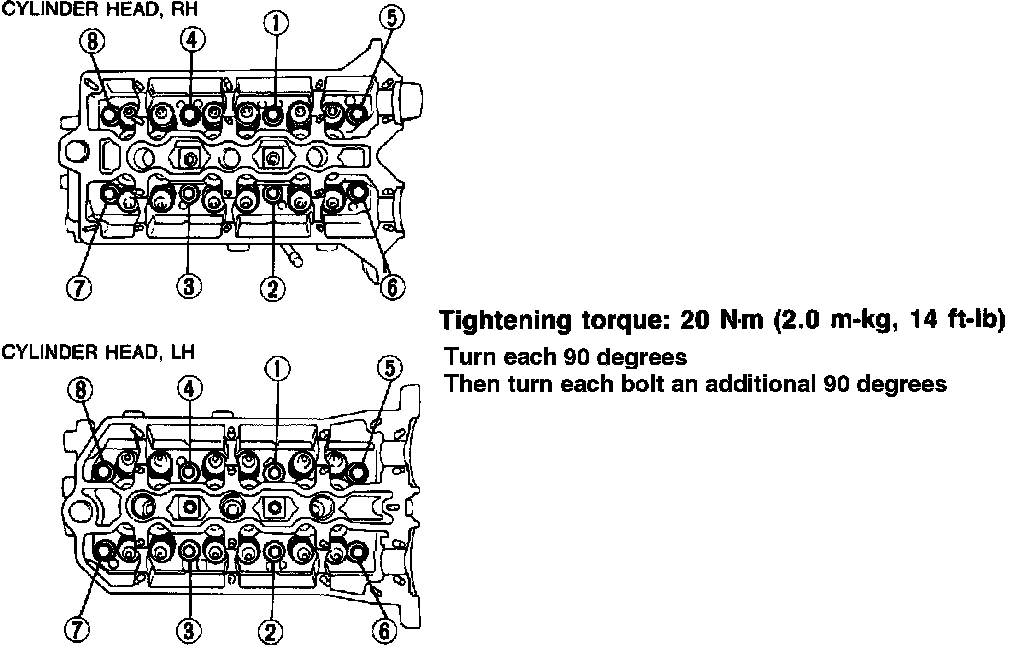

Head Torque/Sequence:






Camshaft Cap Torque/Sequence:
