Home >> Mazda >> 1990 >> 929 V6-3.0L DOHC >> Repair and Diagnosis >> Powertrain Management >> Ignition System >> Ignition Coil >> Specifications

Ignition Coil: Specifications

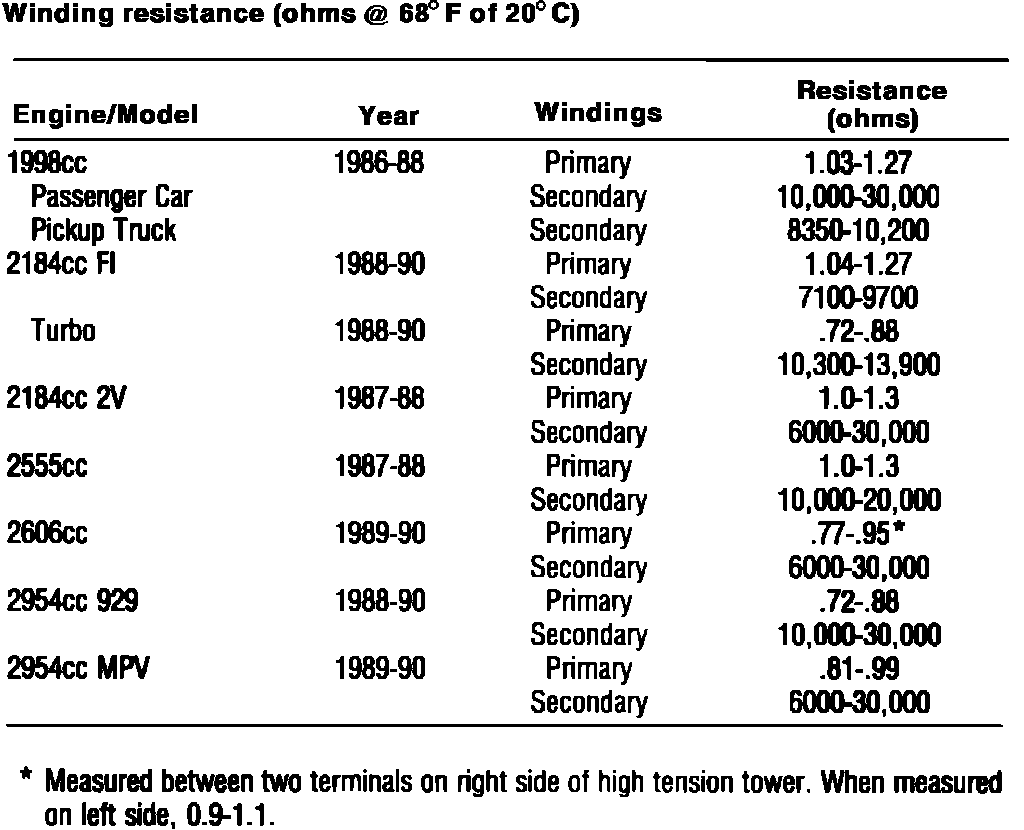

Fig. 2 Ignition Coil Specifications:
