Malfunction Indicator Lamp: Testing and Inspection

MIL Testing:

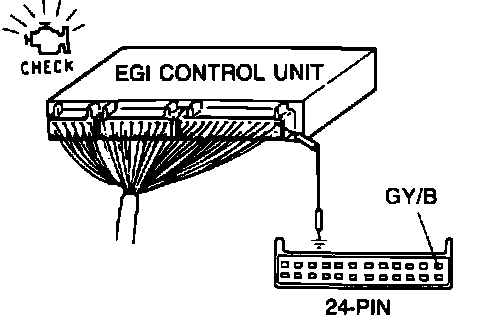

1. Start engine and verify that "CHECK" light illuminates when ECU terminal 1A (GY/B) is grounded.
2. If lamp does not light, check fuse, bulb, wiring harness, connections and ECU. Replace or repair as needed.
