Home >> Mazda >> 1990 >> 626 L4-2184cc 2.2L SOHC F2 >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Steering >> Steering Control Module

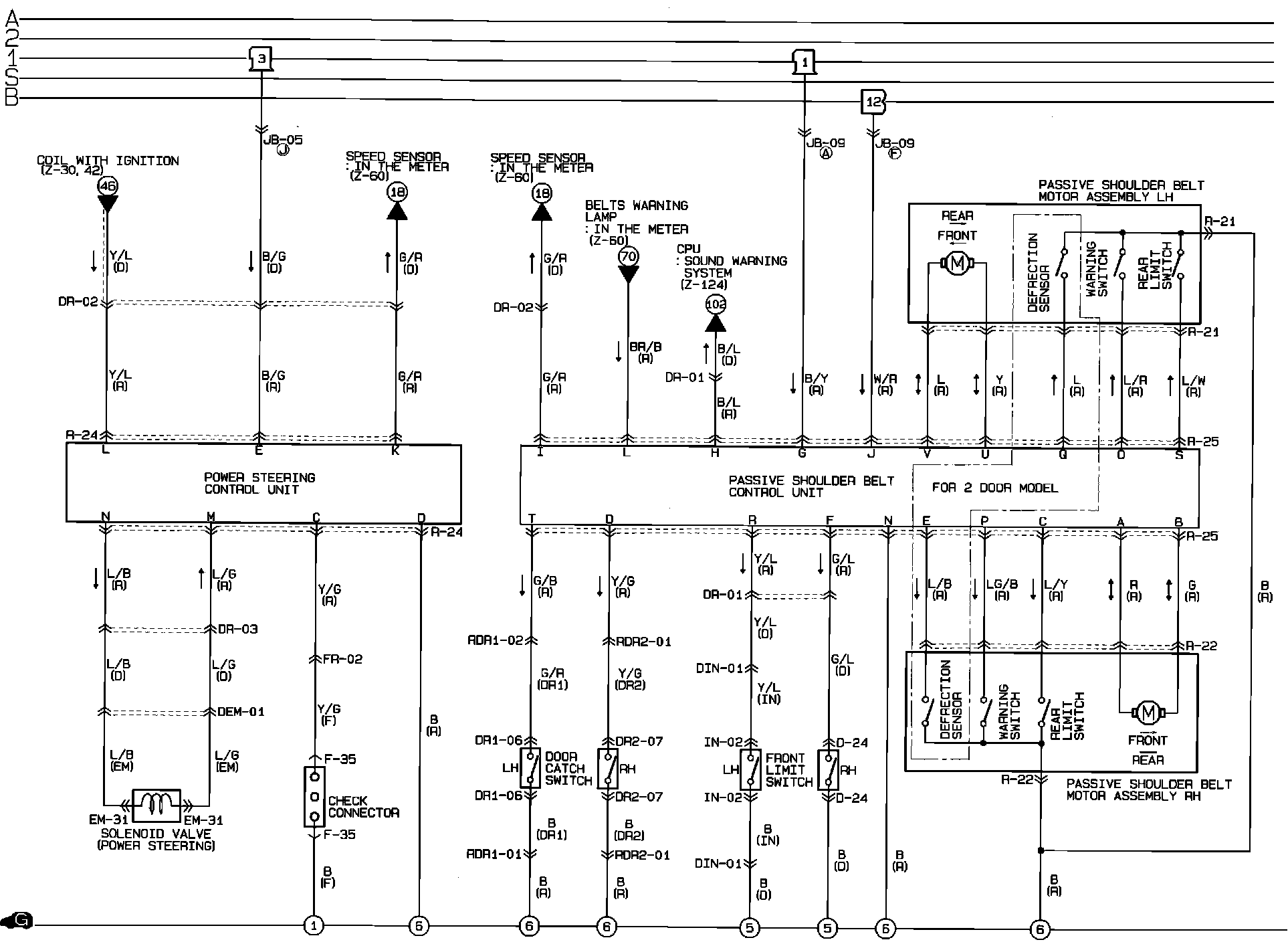

Steering Control Module

Power Steering Control & Passive Restraint System:
