With Logical Mode Control

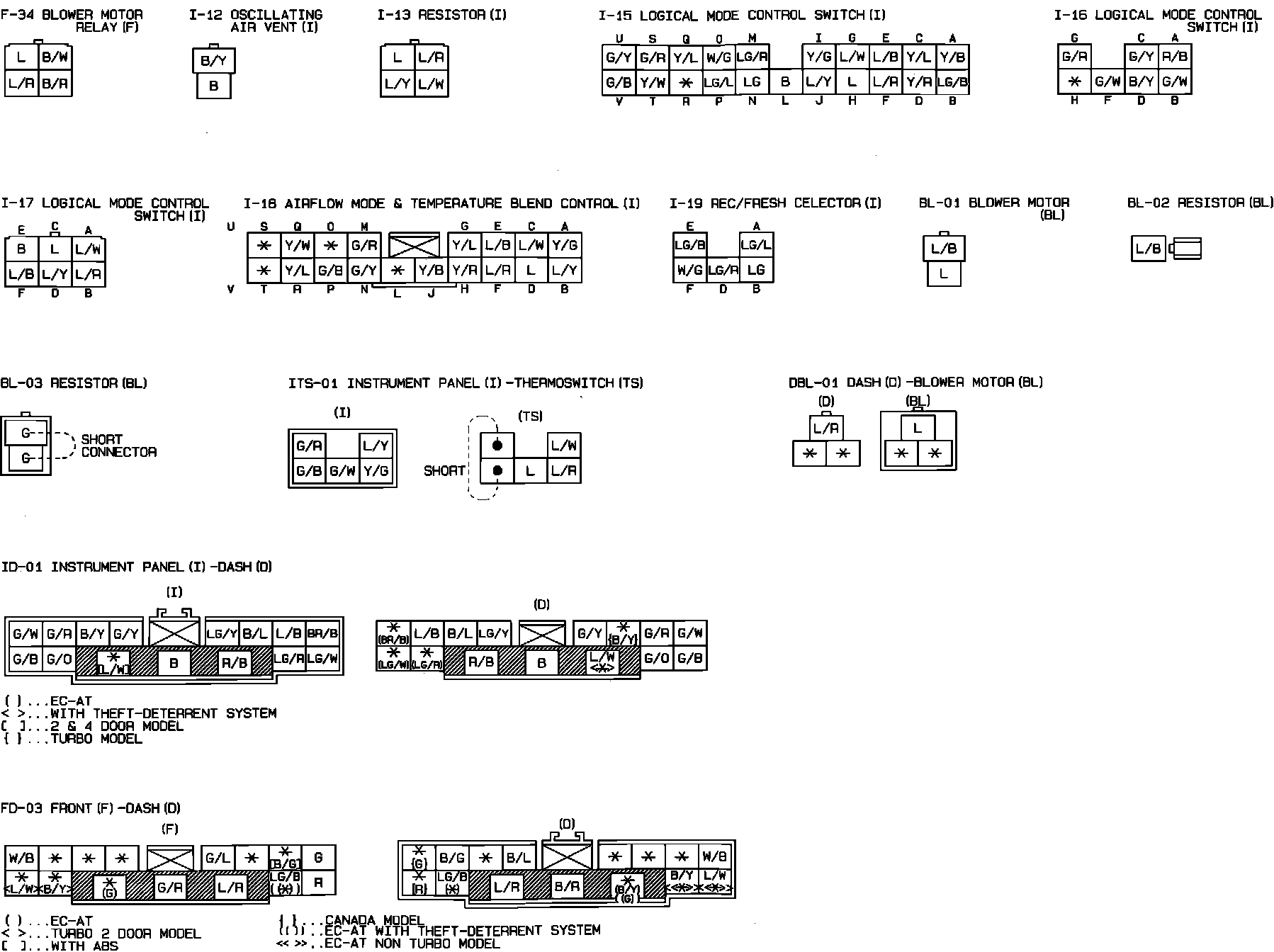

Heater & Air Conditioning. With Logical Mode Control. Connector Identification:
