LEMON Manuals
: Even more car manuals for everyone
Home
>>
Mazda
>>
1990
>>
323 L4-1600 1597cc
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Locations
>>
Connector Locations
>>
4WD
4WD

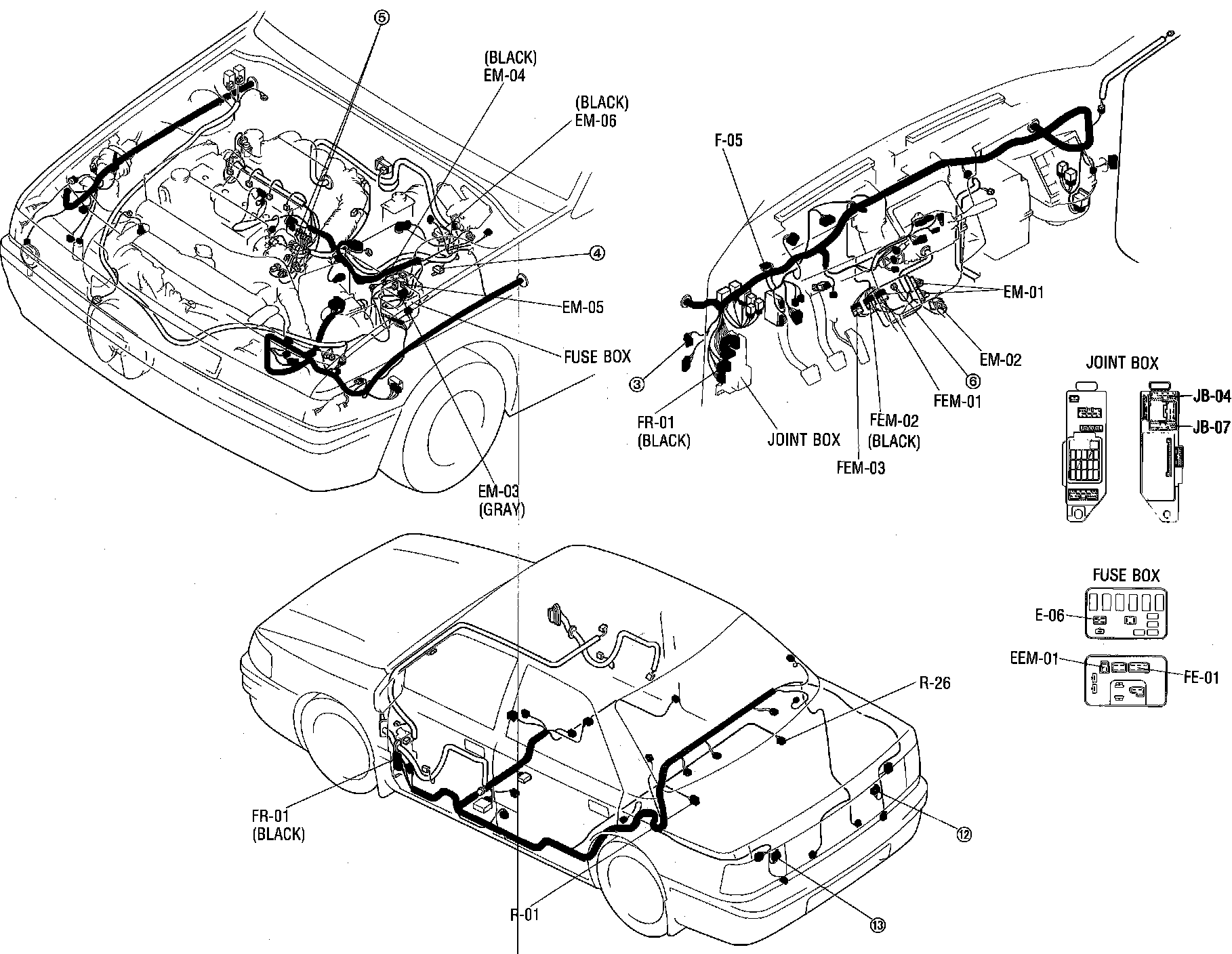

Engine Control System. 4WD. Harness Locations:

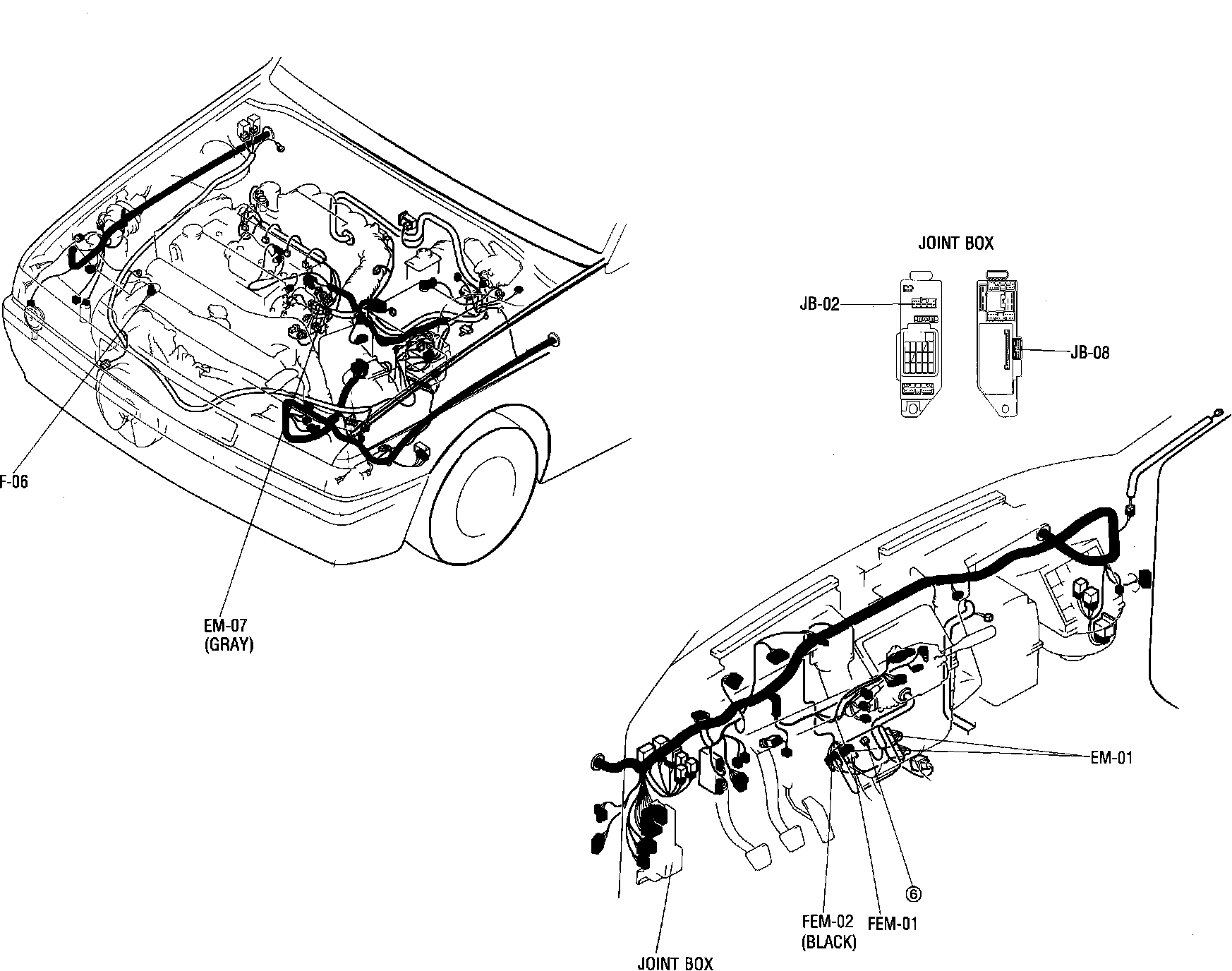

Engine Control System. 4WD. Harness Locations:

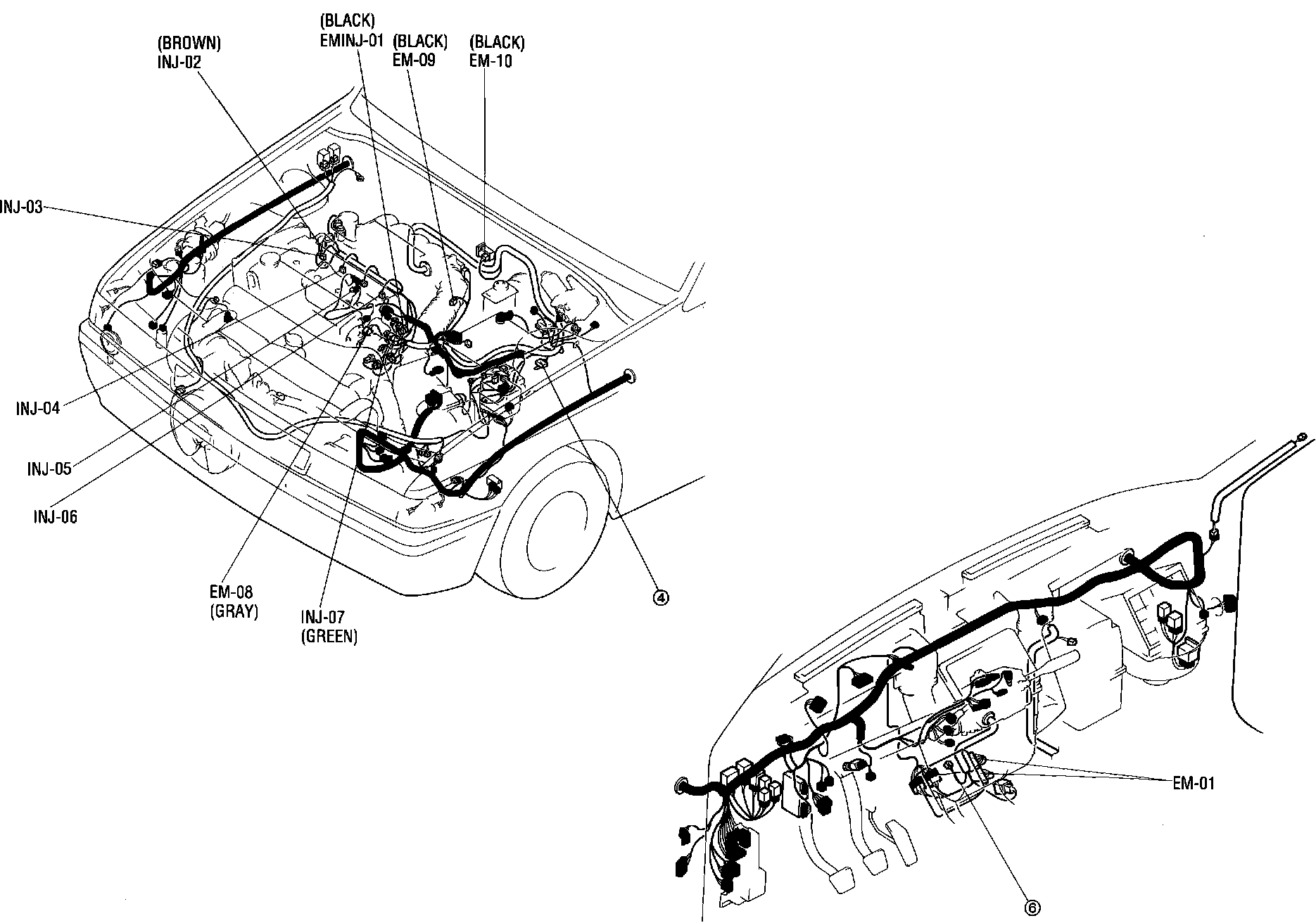

Engine Control System. 4WD. Harness Locations:

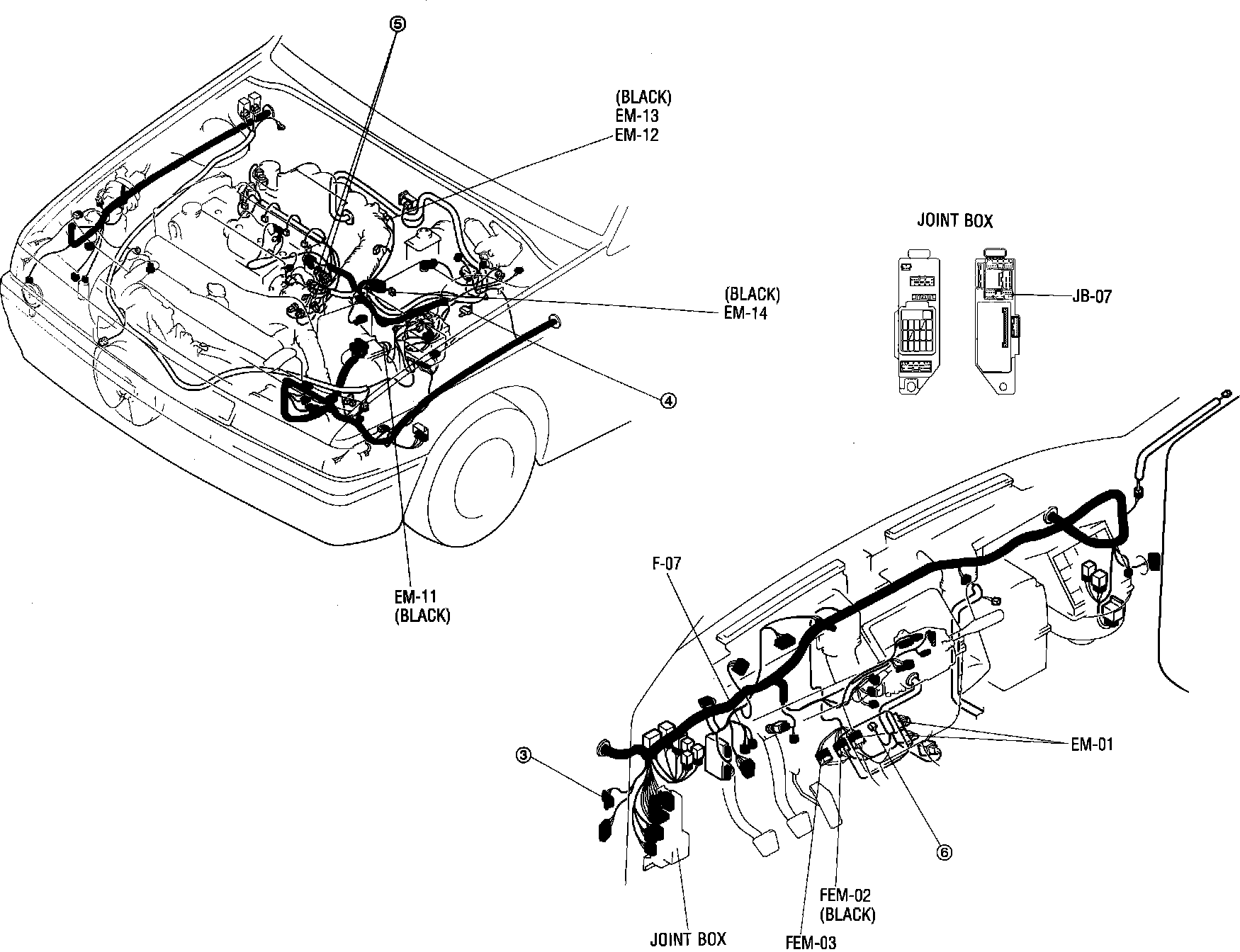

Engine Control System. 4WD. Harness Locations:
