2WD

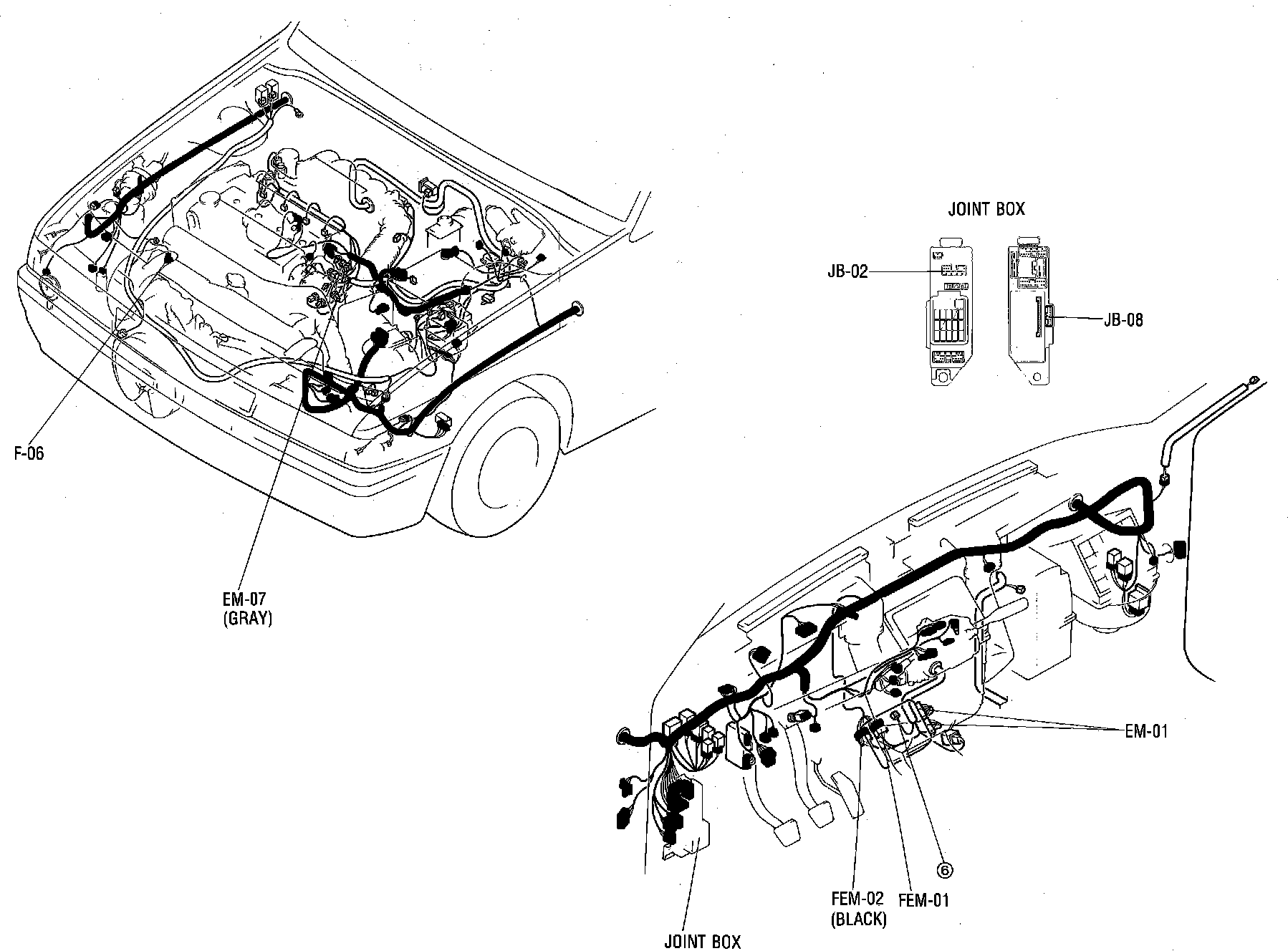

Engine Control System. Except 4WD . Harness Locations:

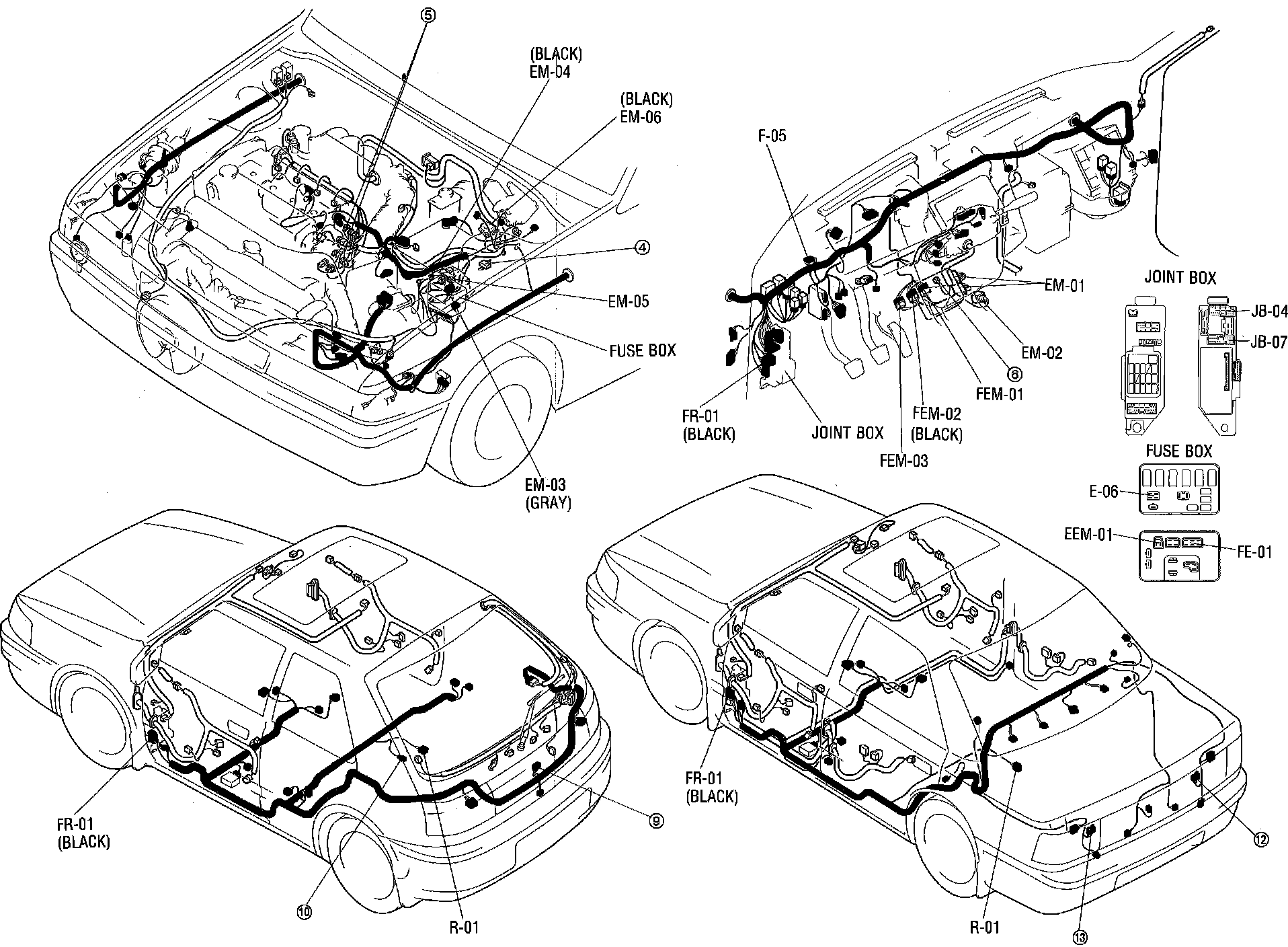

Engine Control System. Except 4WD . Harness Locations:

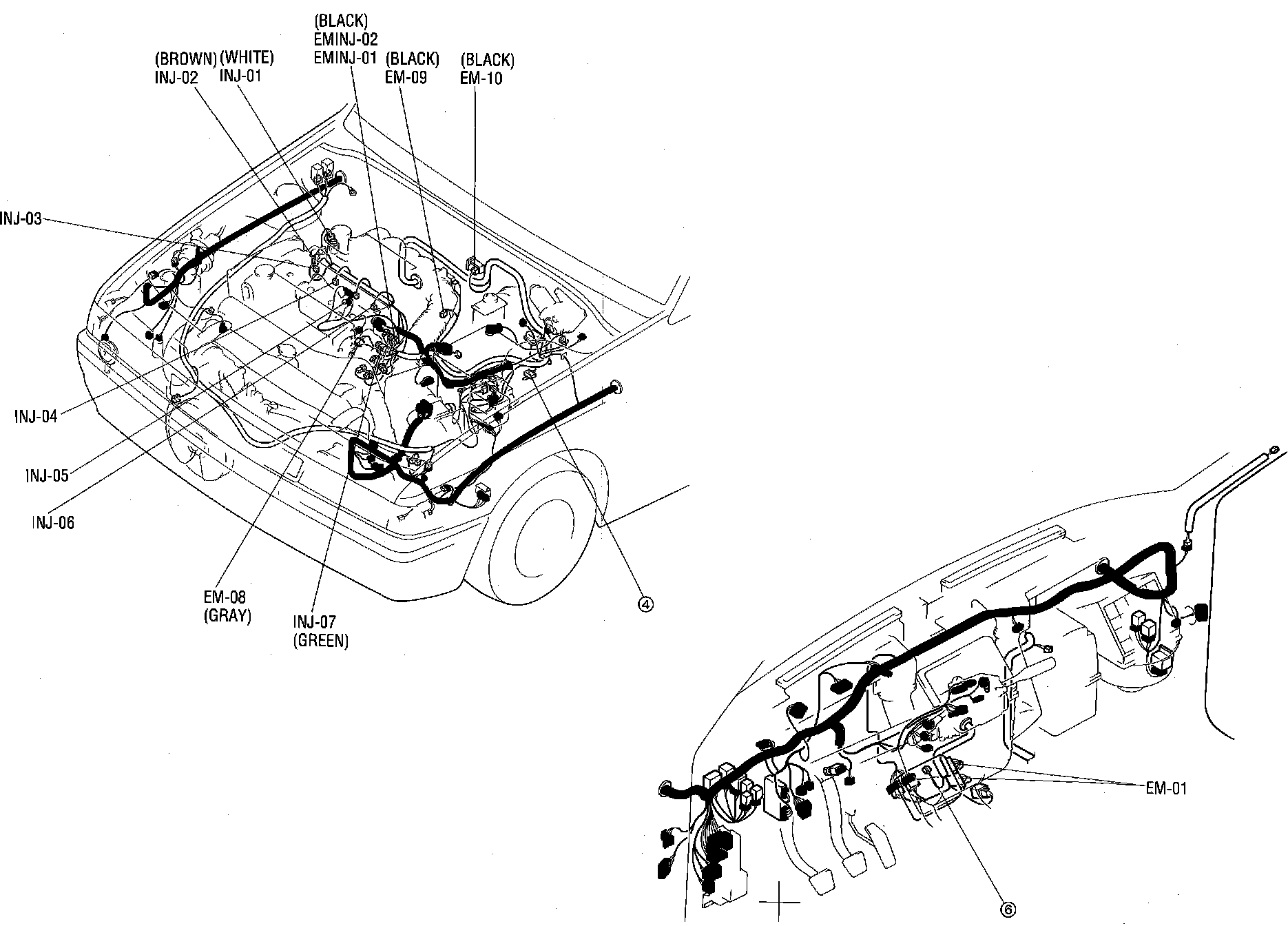

Engine Control System. Except 4WD . Harness Locations:

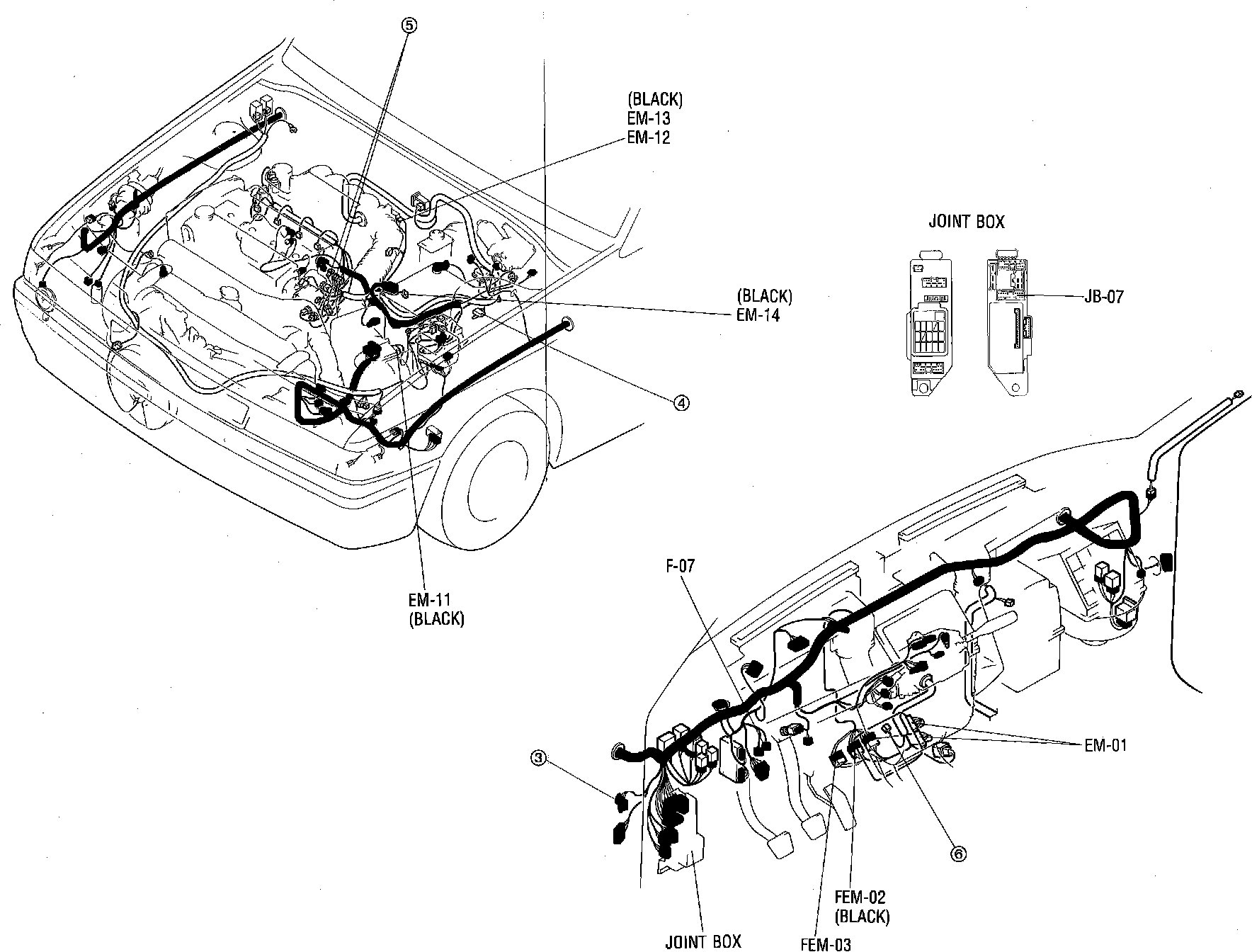

Engine Control System. Except 4WD . Harness Locations:
