Home >> Mazda >> 1989 >> 929 V6-3.0L SOHC >> Repair and Diagnosis >> Diagrams >> Connector Views >> Timer/Control Unit, Accessory Control

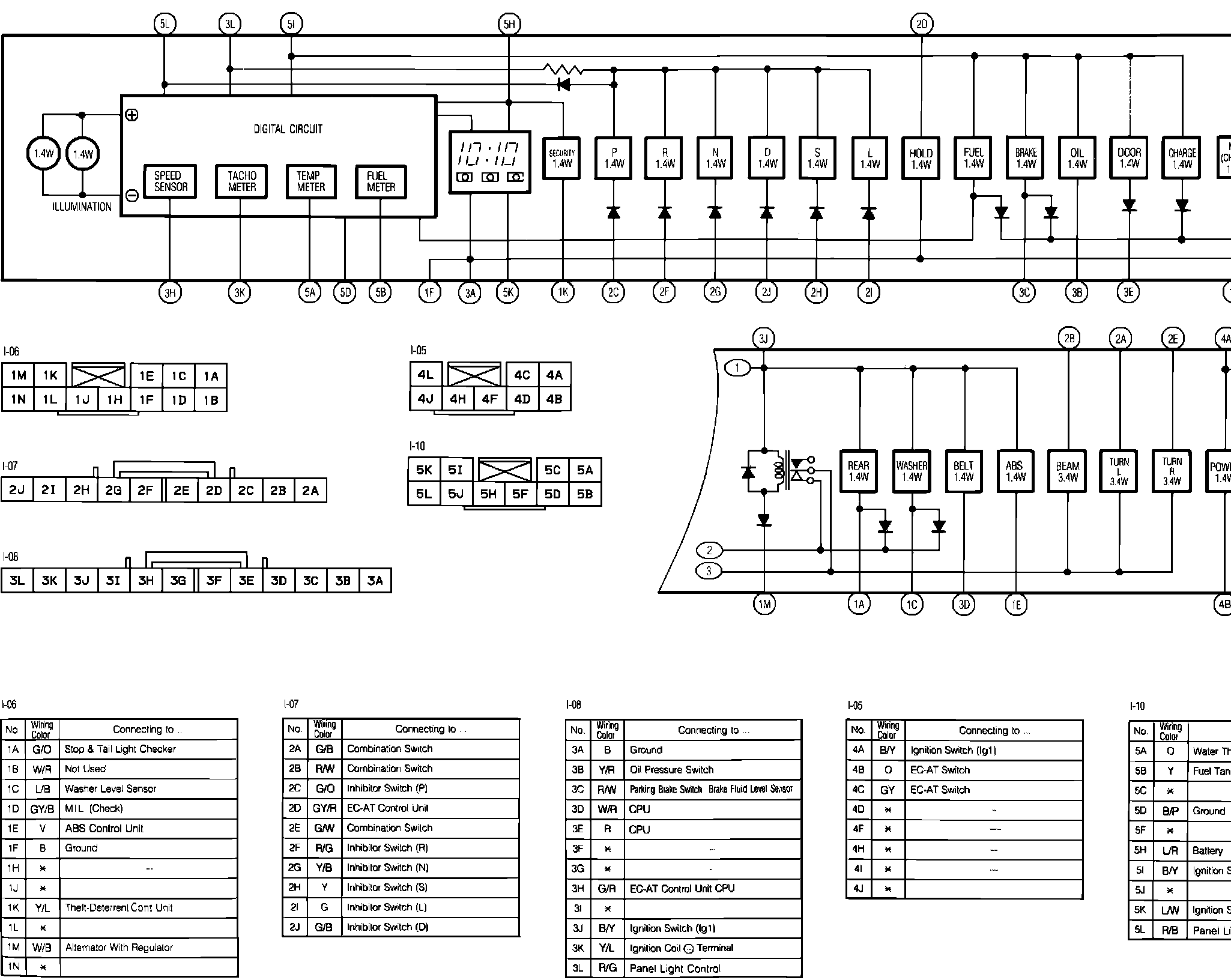

Timer/Control Unit, Accessory Control

�j�]Connector Identification:
