Home >> Mazda >> 1989 >> 929 V6-3.0L SOHC >> Repair and Diagnosis >> Diagrams >> Connector Views >> Control Module, A/T

Control Module, A/T

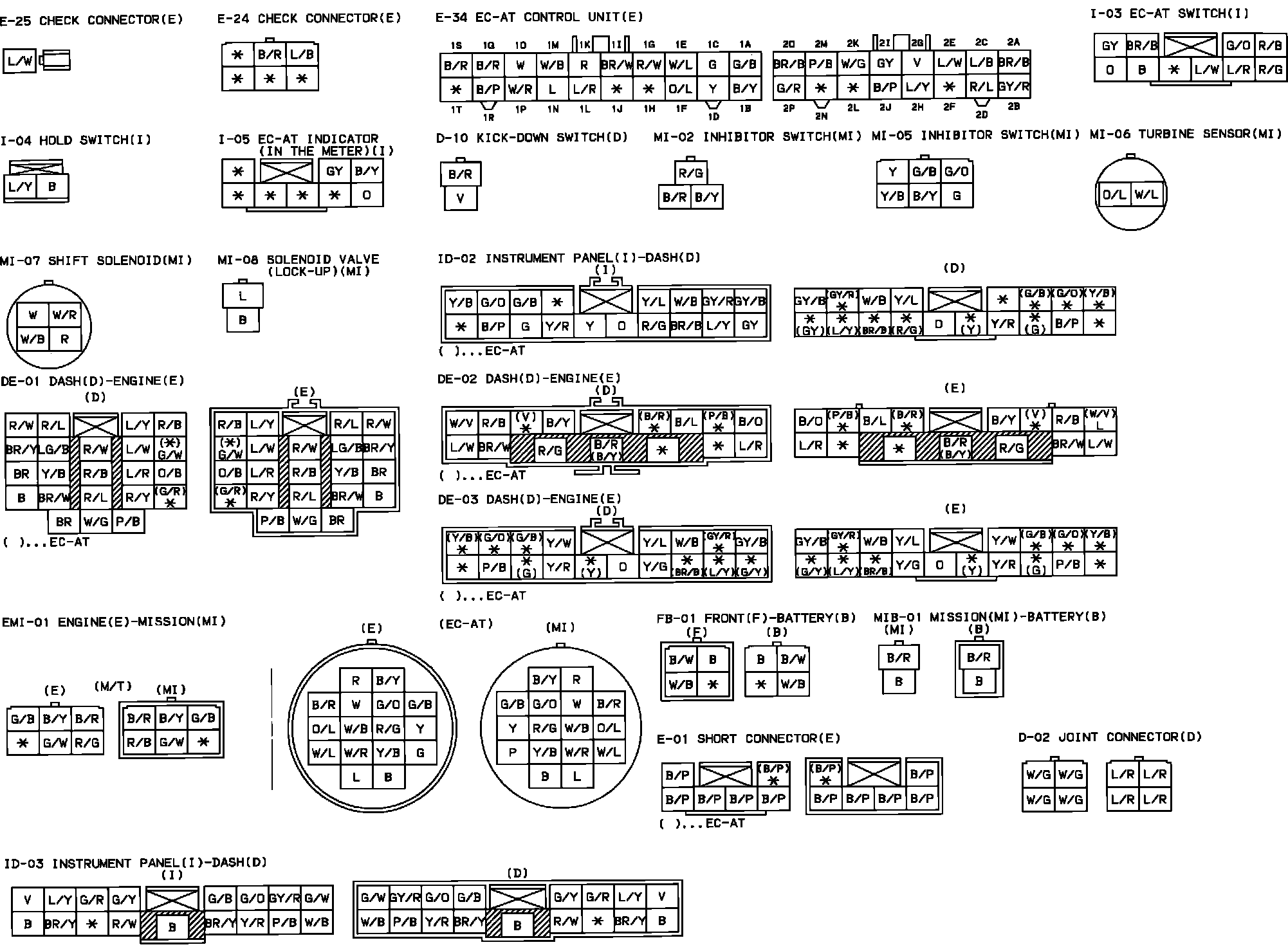

Connector Identification:
