Electric Load Sensor: Testing and Inspection

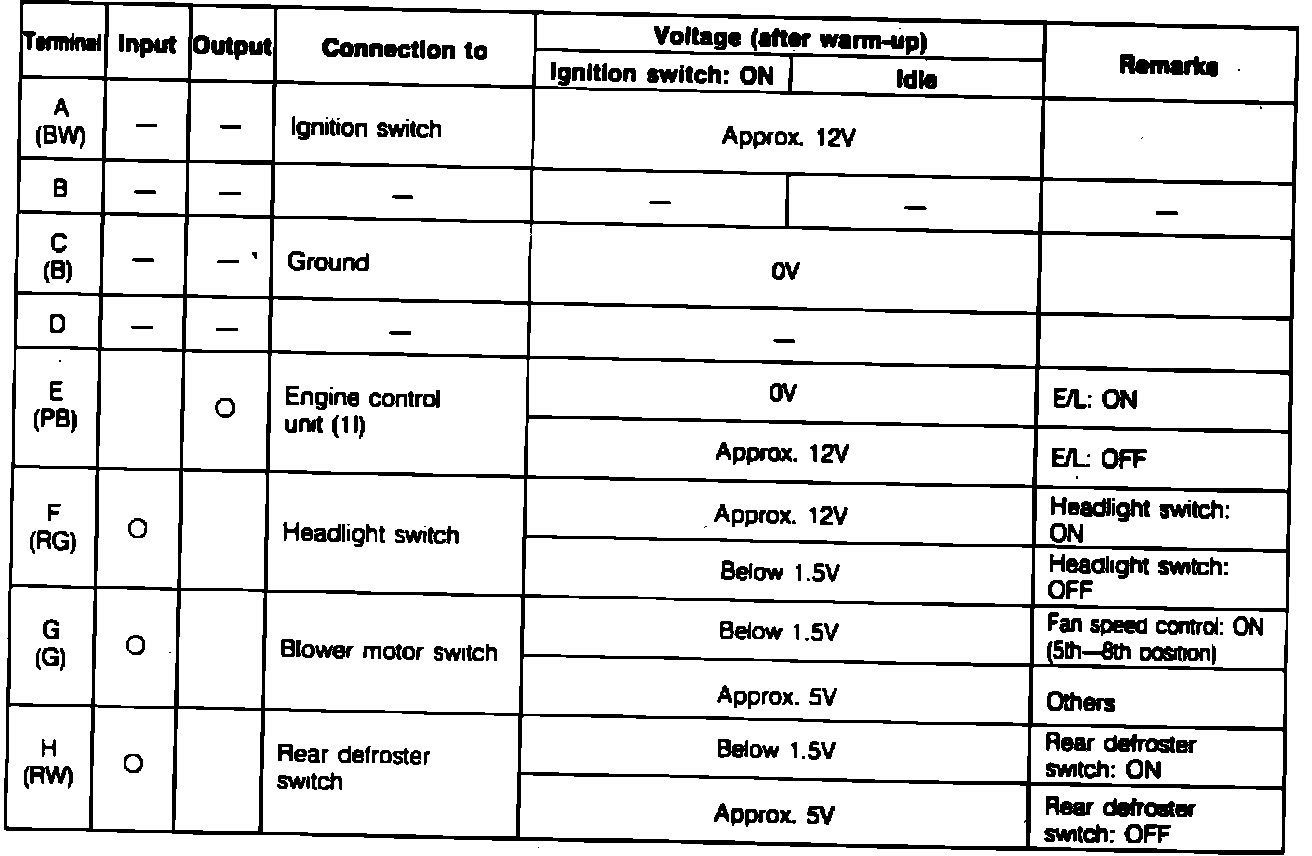

Fig. 90 E/L control unit terminal voltage specification chart.:

1. Connect voltmeter between E/L control unit and ground.
2. Start engine and check terminal voltages, Fig. 90.
