Engine Control Module

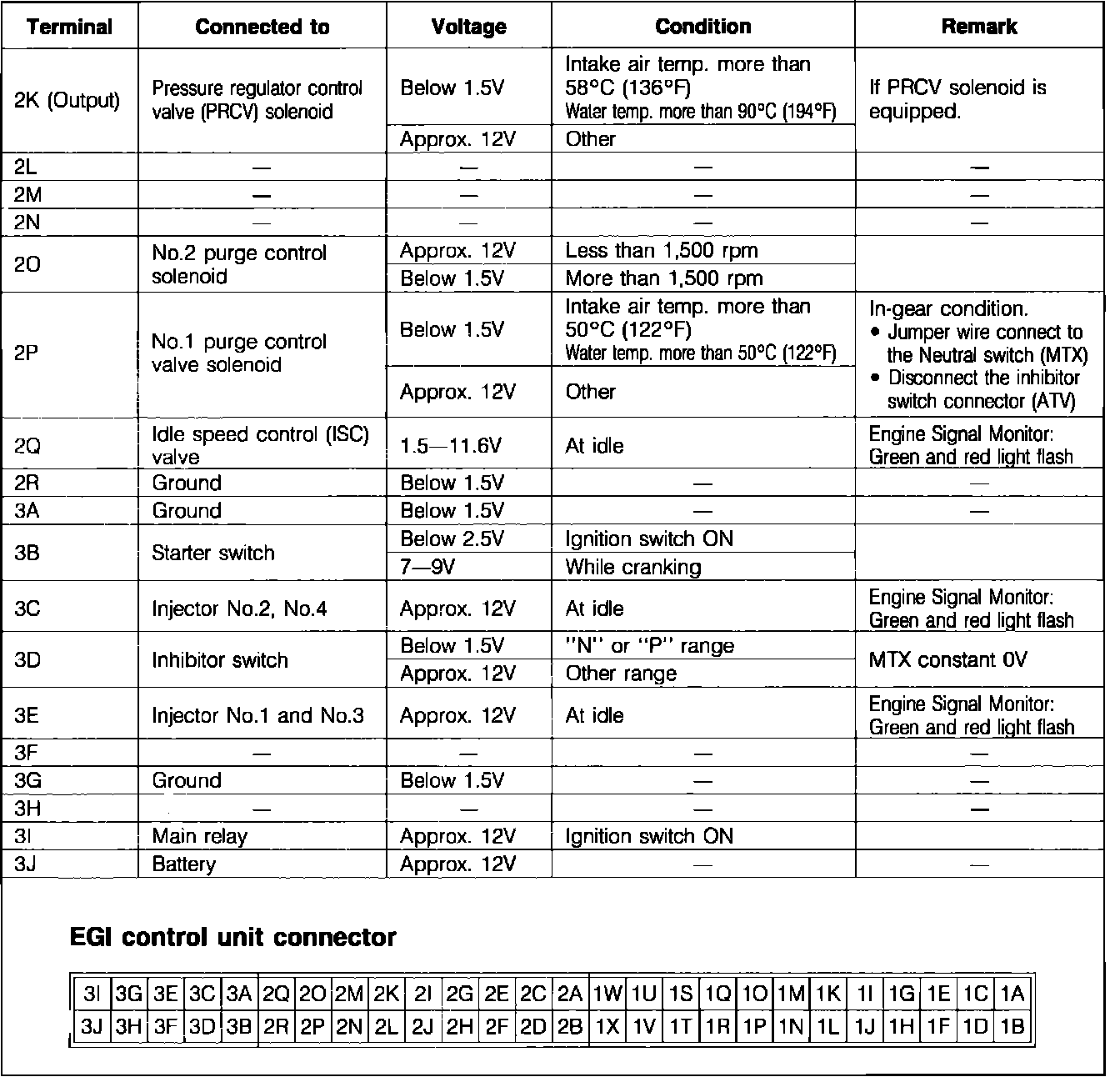

Fig. 65a Control unit voltage specifications chart. Non-Turbo:

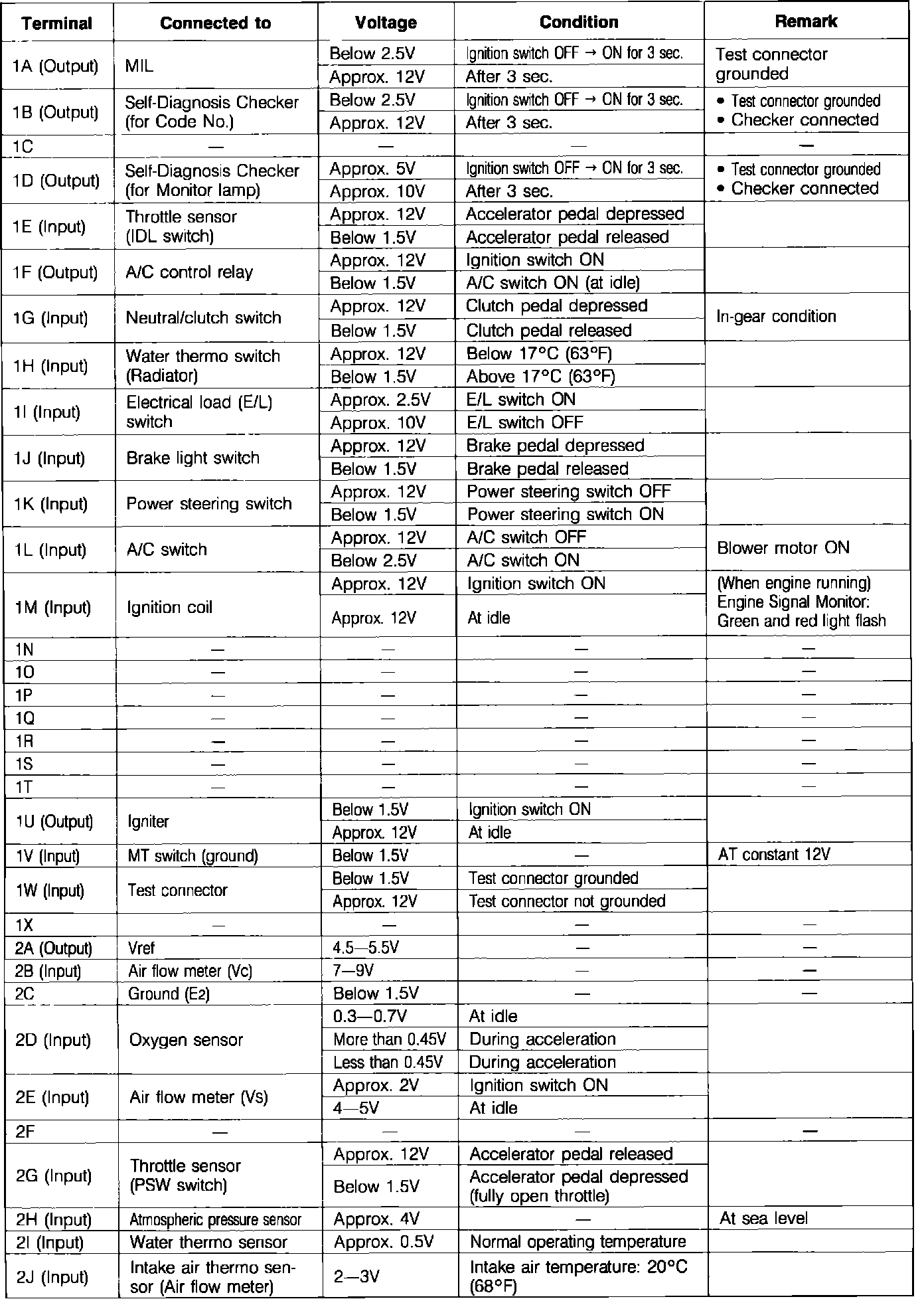

Fig. 65b Control unit voltage specifications chart. Non-Turbo:
