Cruise Control Actuator - Modification

86mazda06
Category 15 030/86
10/3/86

RX-7 TURBO

SUBJECT Actuator Modification




DESCRIPTION

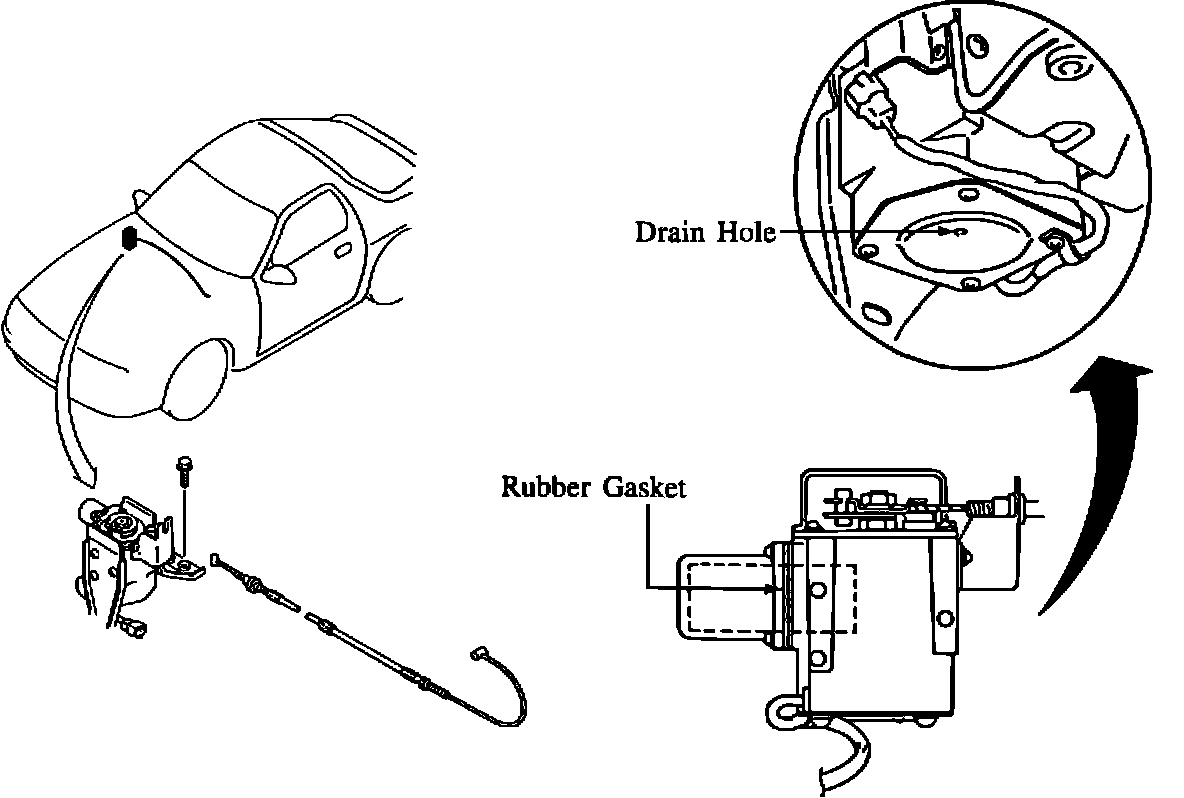

To prevent water from entering the cruise control actuator, a rubber gasket has been newly installed and drain hole newly provided on RX-7 turbo vehicles.

NOTE:
Drain hole identifies new actuator from old one.
VIN OF PRODUCTION CHANGE

RX-7 Turbo: JM1FC332 H0146093 May, 1986

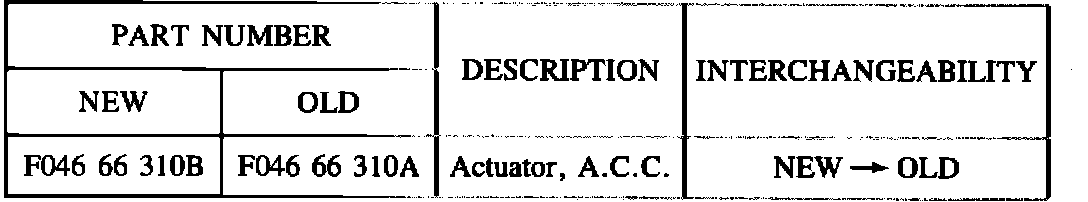

PARTS INFORMATION
