Home >> Mazda >> 1985 >> 626 L4-2.0L DSL >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Idle Up Control Valve >> Locations >> California

California

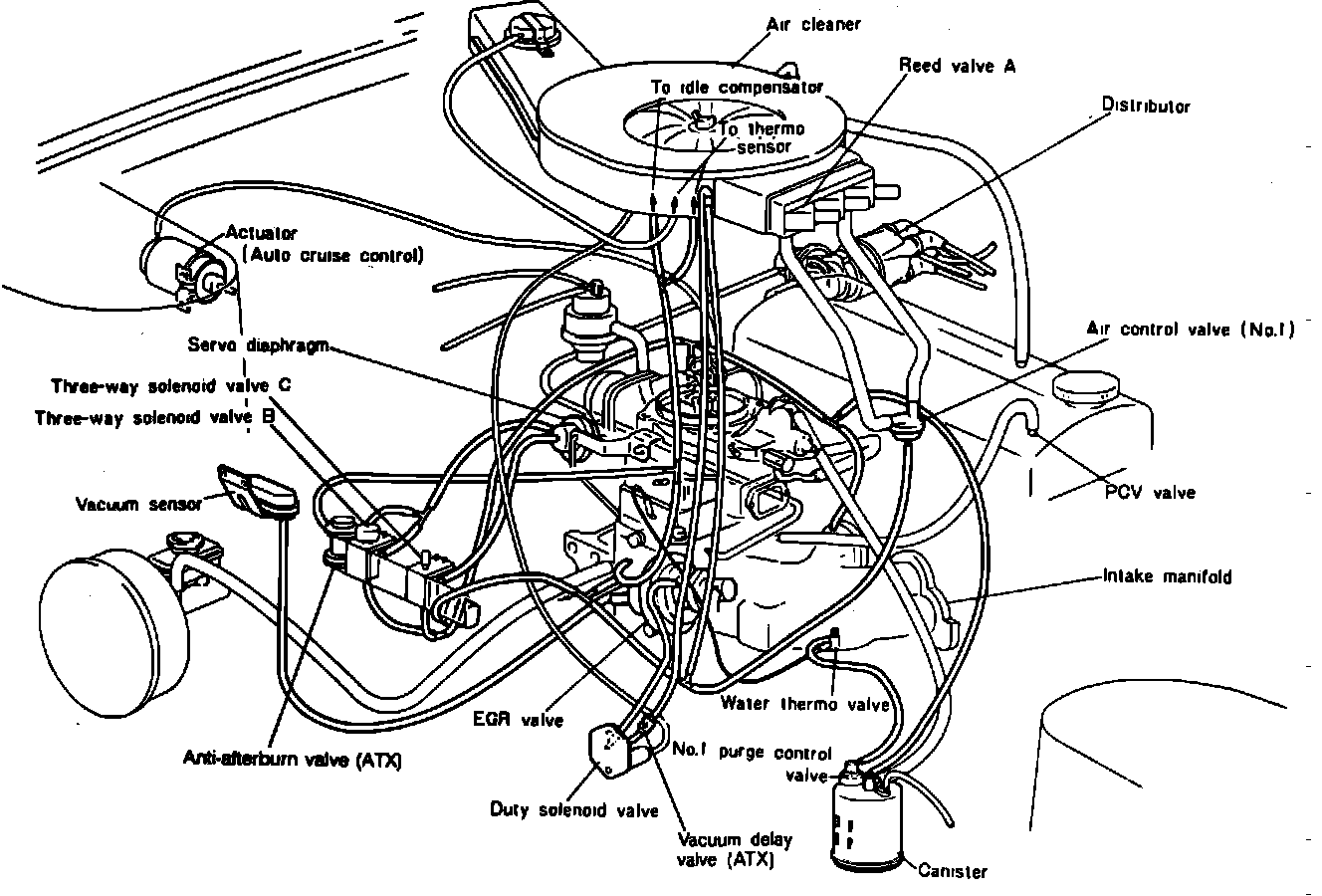

Vacuum Hose Routing.:




Front Side Of Engine

Applicable to: 1984-85 Calif. Models
