Mazda
>>
1983
>>
RX7 2RTR-1146cc 70
>>
Repair and Diagnosis
>>
Diagrams
>>

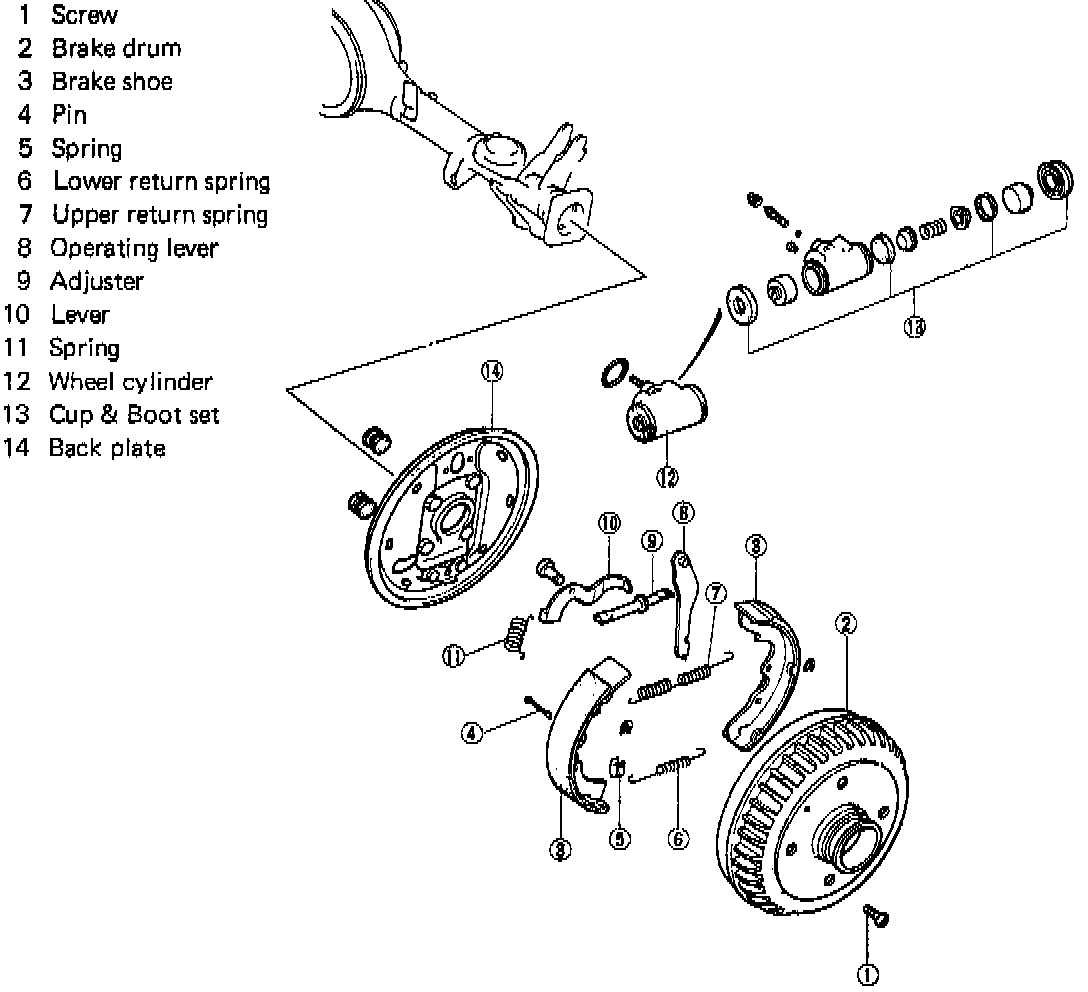

Exploded Views
>>
Drum Brake System
>>
System Diagram
System Diagram
