Carburetor

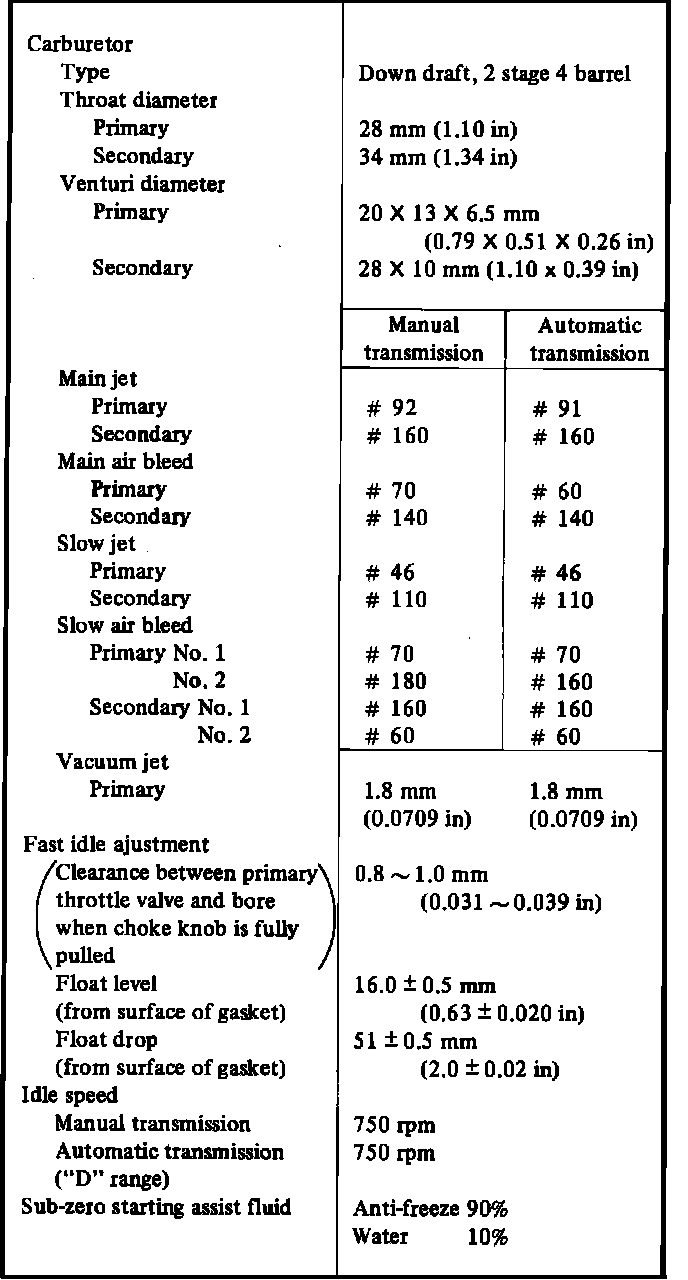

Fig. 17 Carburetor Specifications:

Fig. 3 Idle Speed W/O Computer Control - Specifications:
