B Series Truck L4-2000 1970cc
>>
Repair and Diagnosis
>>
Specifications
>>
Electrical Specifications
>>
Ignition System
>>
System Specifications
System Specifications

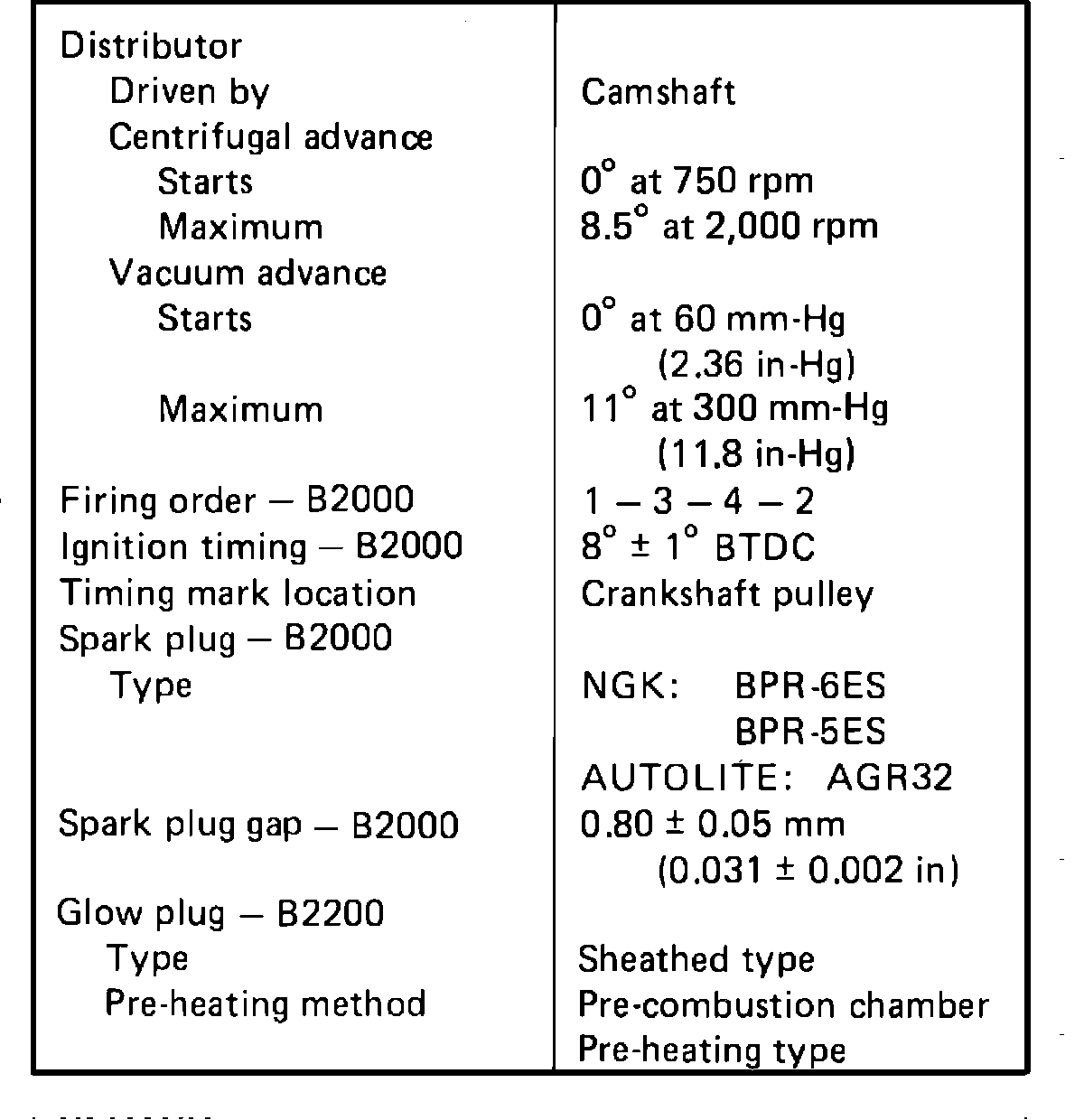

Fig. 8 Ignition system specifications:
