Wheel Speed Sensor - Front: Notes
NOTE:
For information on Ford Color Coded Illustrations refer to COLOR-CODING - FORD
.

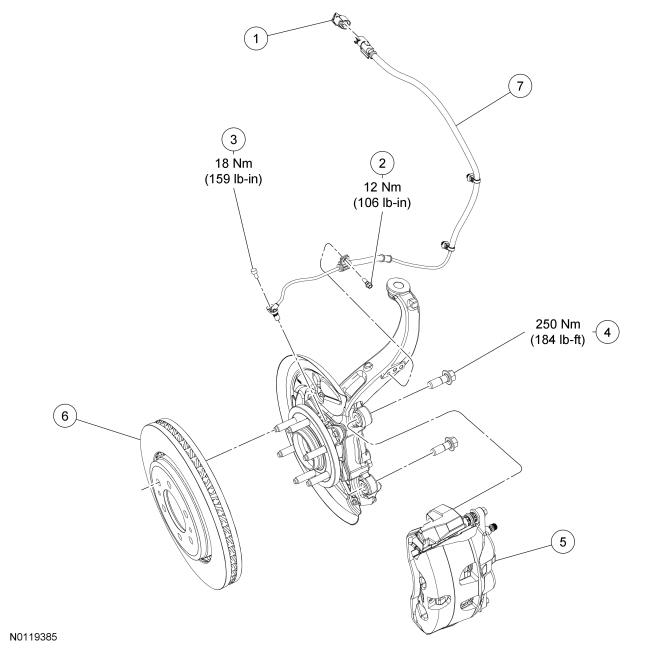

| Item | Part Number | Description |
|---|---|---|
| 1 | - | Front wheel speed sensor electrical connector (part of 14250) |
| 2 | W710279 | Front wheel speed sensor harness bolt |
| 3 | - | Front wheel speed sensor bolt (part of 2C204) |
| 4 | W714743 | Brake caliper anchor plate bolt (2 required) |
| 5 | 2B120 RH / 2B121 LH | Brake caliper |
| 6 | 1125 | Brake disc |
| 7 | 2C204 | Front wheel speed sensor |
