Home >> Lincoln >> 2013 >> MKX AWD V6-3.7L >> Repair and Diagnosis >> Power and Ground Distribution >> Fuse >> Locations >> Power Distribution Box

Power Distribution Box



The Power Distribution Box is located in the engine compartment.

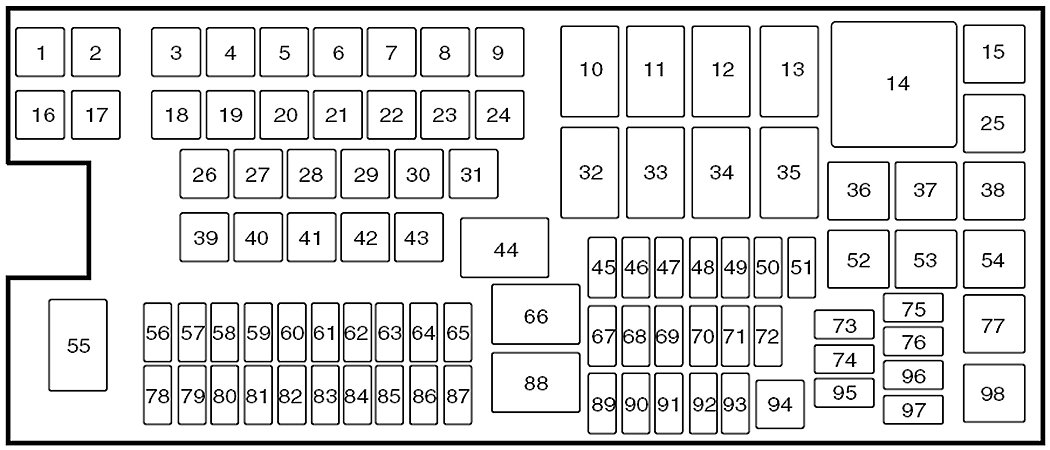

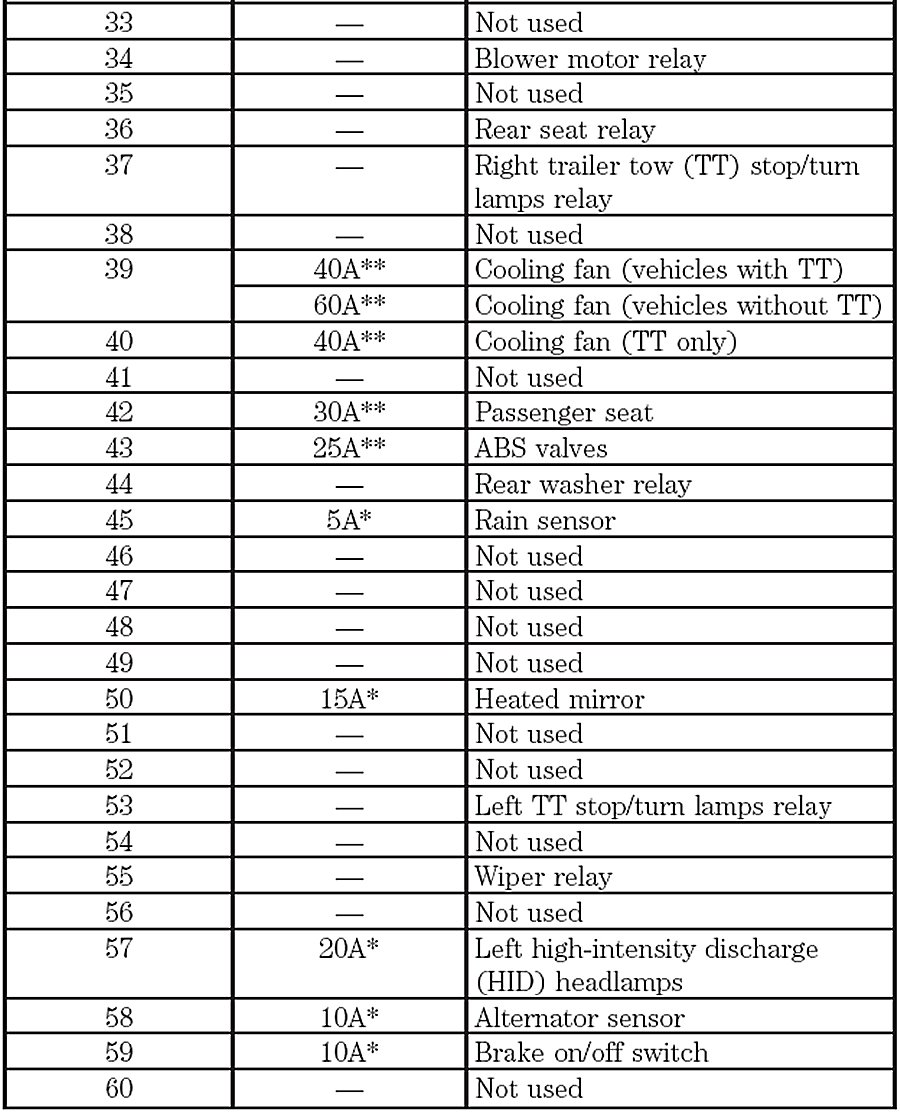

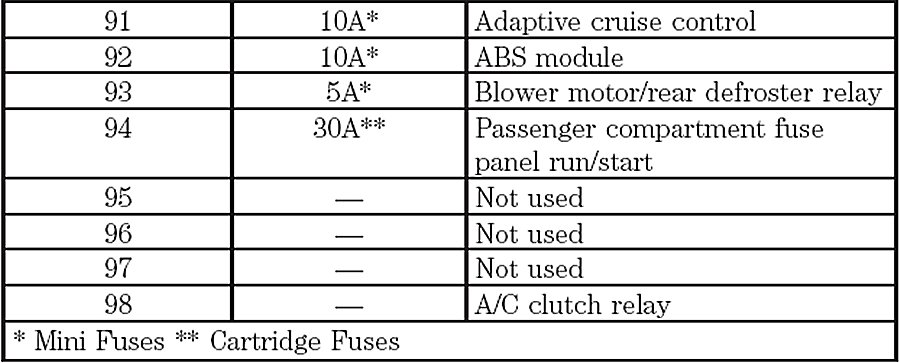

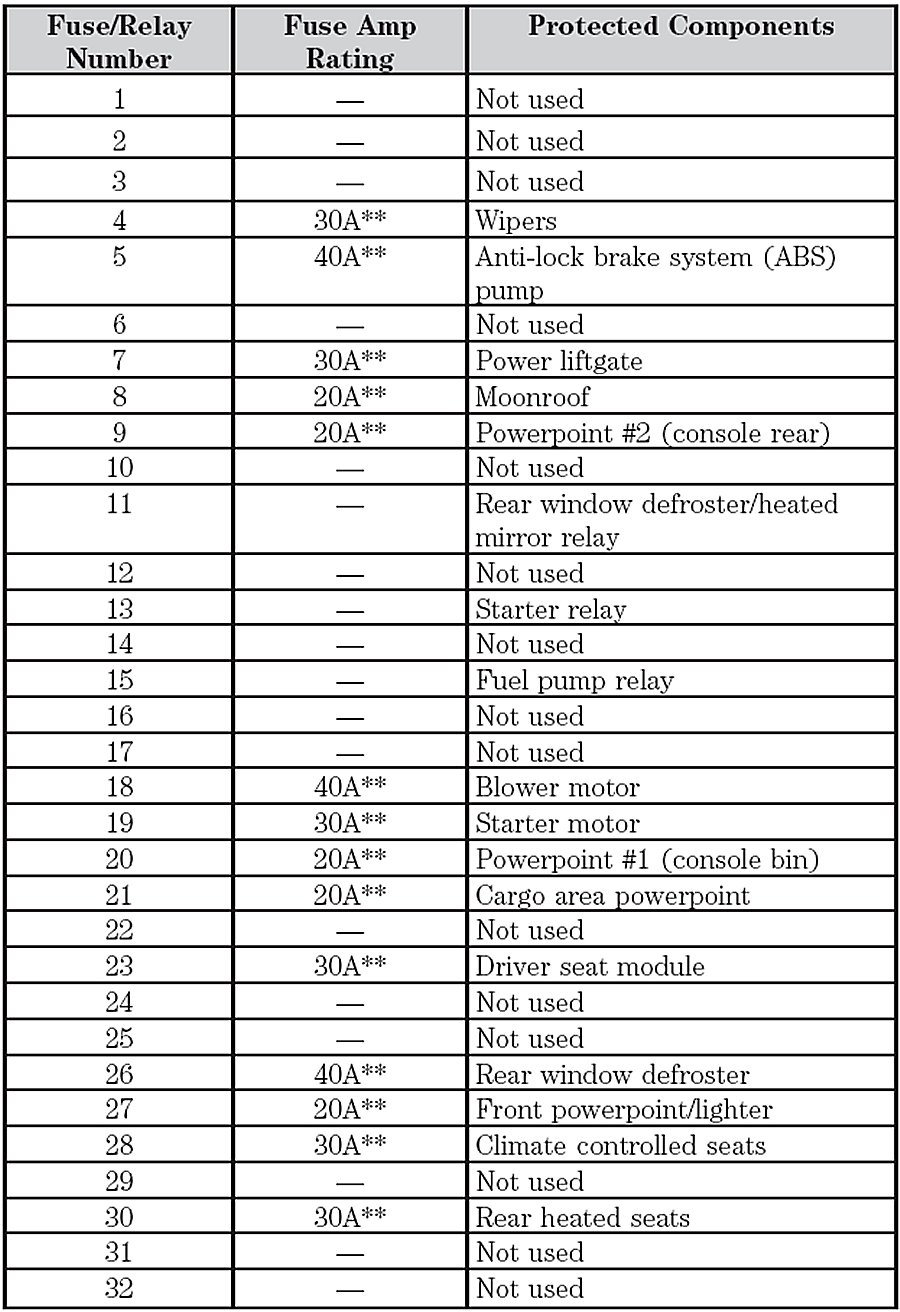

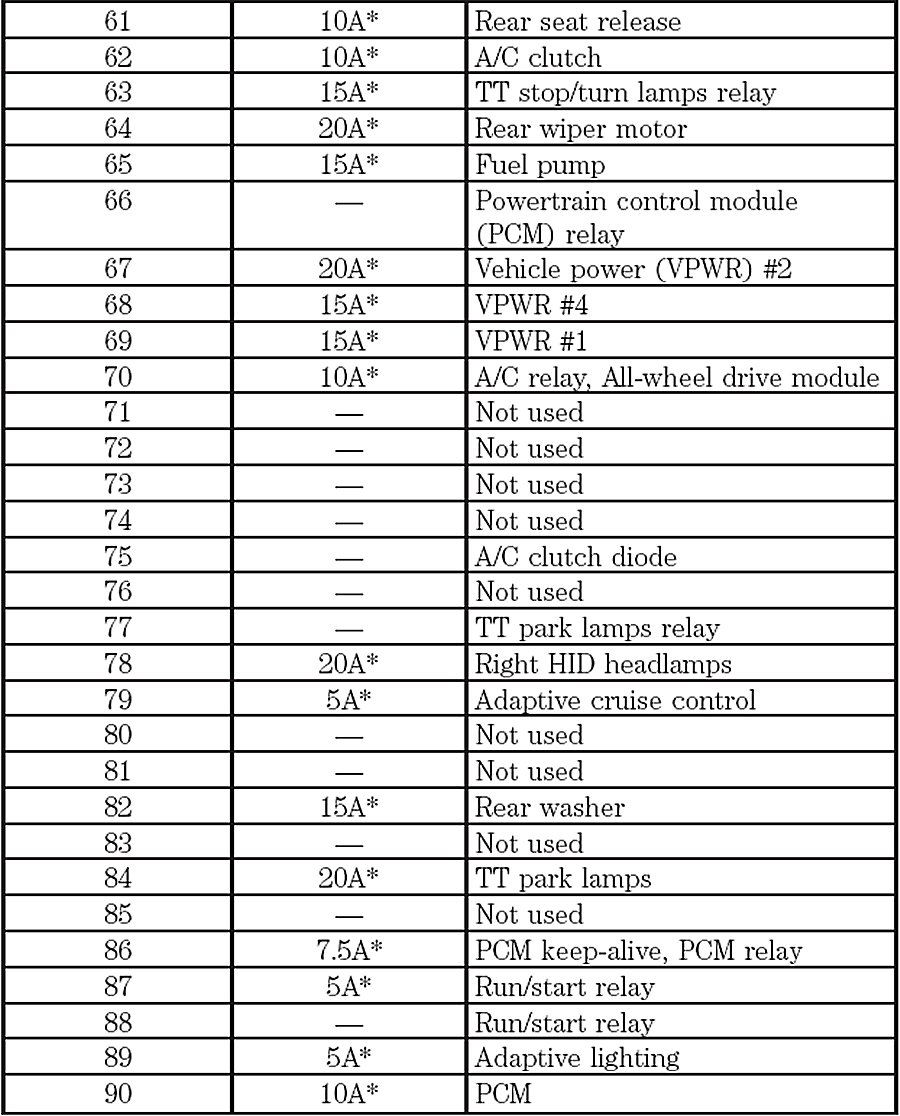

Power Distribution Box:
