Home >> Lincoln >> 2012 >> Navigator 2WD V8-5.4L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Seat Temperature Control Module >> C3054B Heated Seat Module, Rear

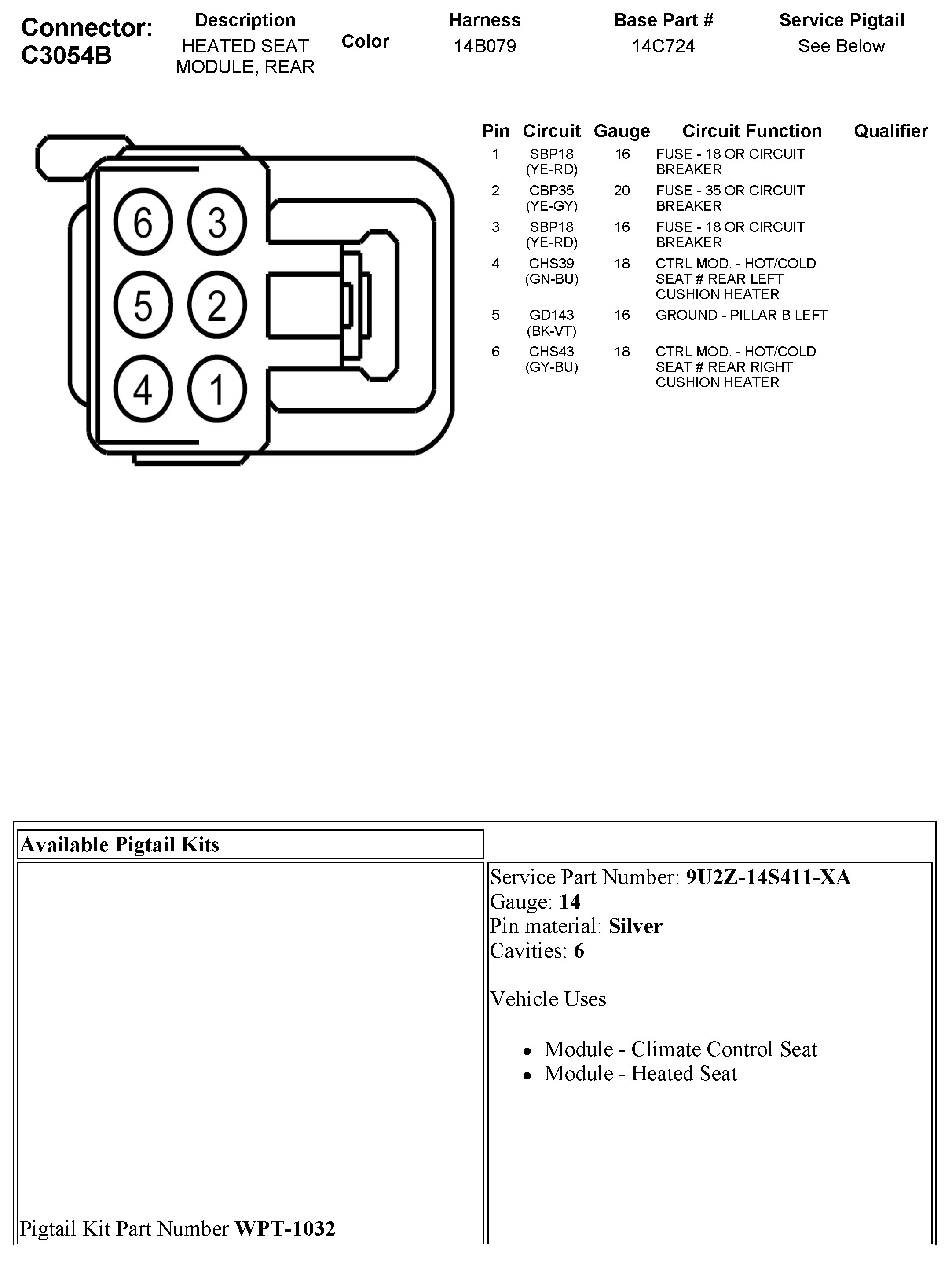

C3054B Heated Seat Module, Rear
