Wiper and Washer Systems




Wiper and Washer System - Exploded View

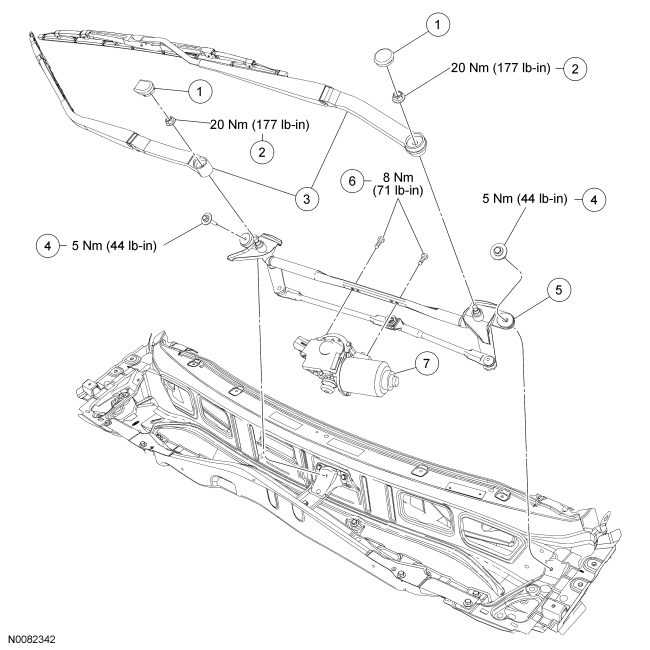

Windshield Wipers

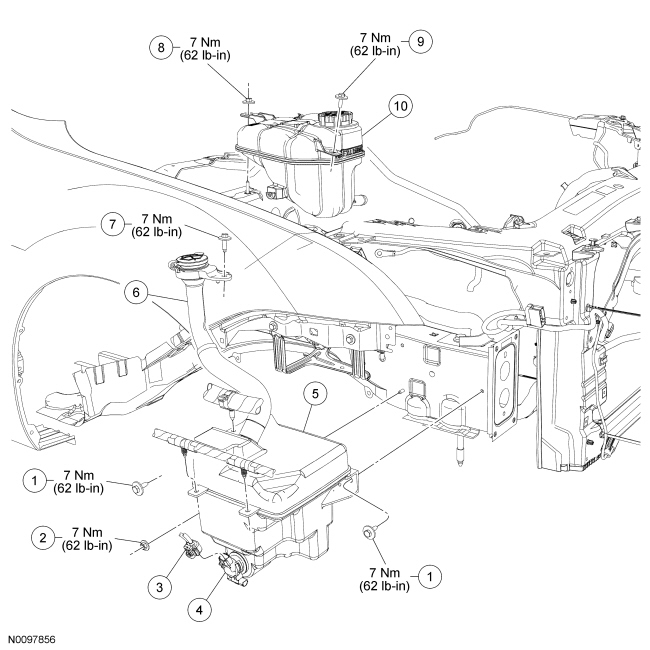

Washer Pump and Reservoir - Hybrid

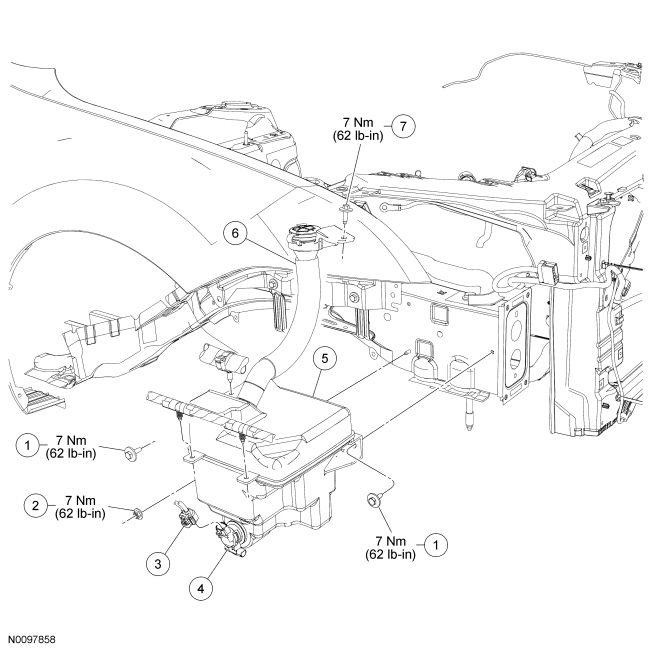

Washer Pump and Reservoir - Non-Hybrid
