Home >> Lincoln >> 2012 >> MKZ FWD V6-3.5L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Seat Temperature Control Module >> C3305C Dual Climate Controlled Seat Module (DCSM)

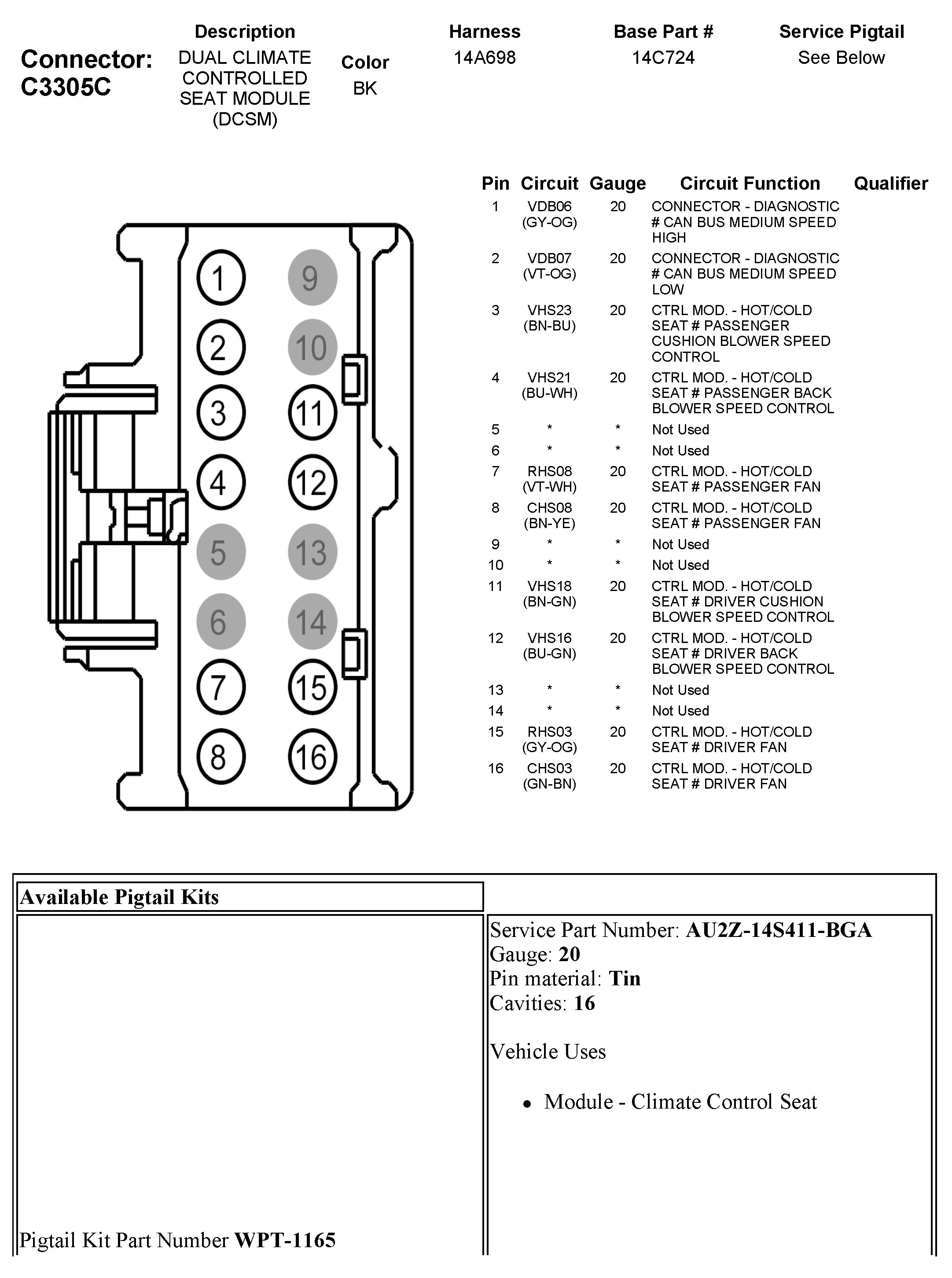

C3305C Dual Climate Controlled Seat Module (DCSM)
