Home >> Lincoln >> 2012 >> MKZ FWD L4-2.5L Hybrid >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Testing and Inspection >> Pinpoint Tests >> Pinpoint Tests >> Test H: Fuel Control

Test H: Fuel Control

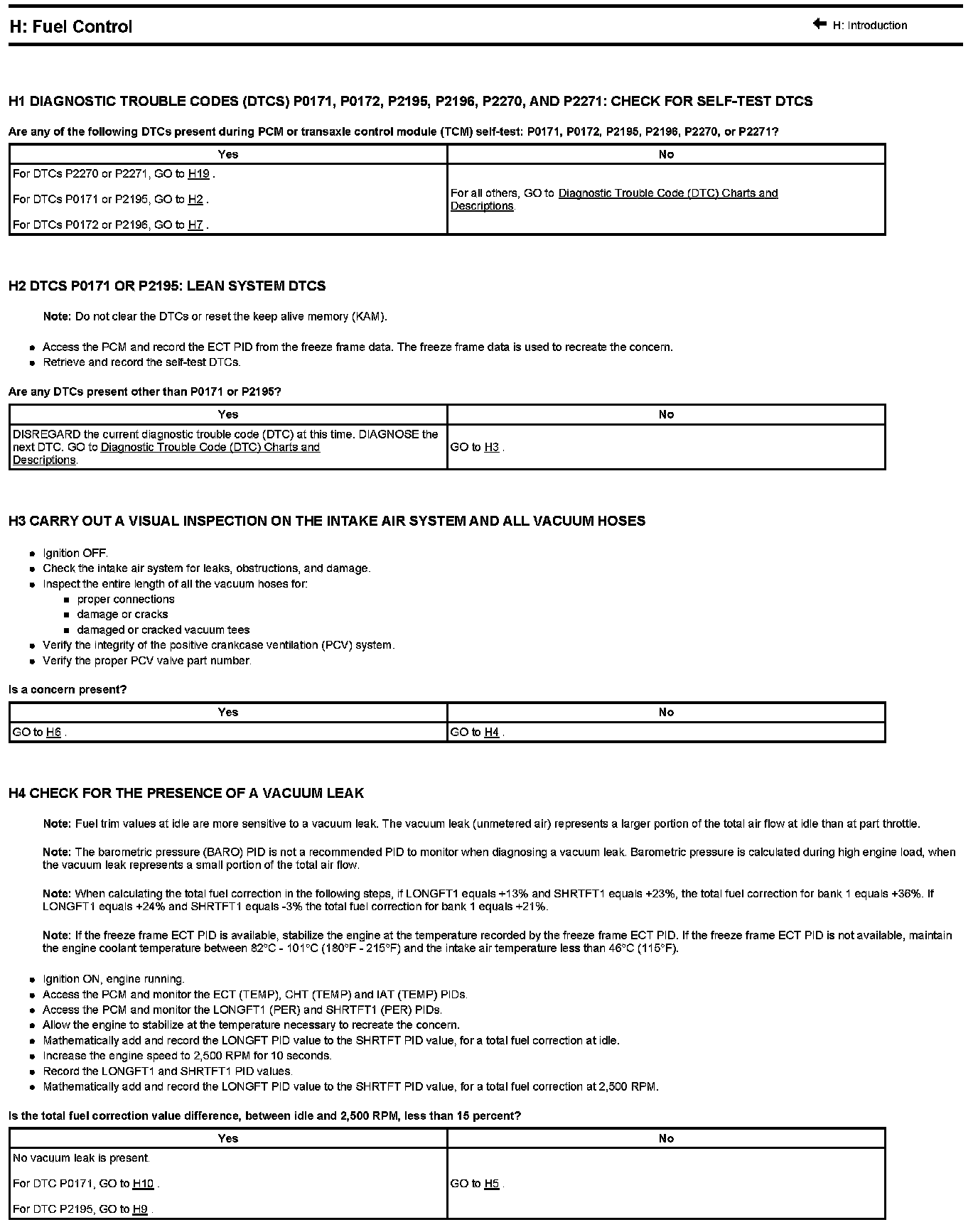

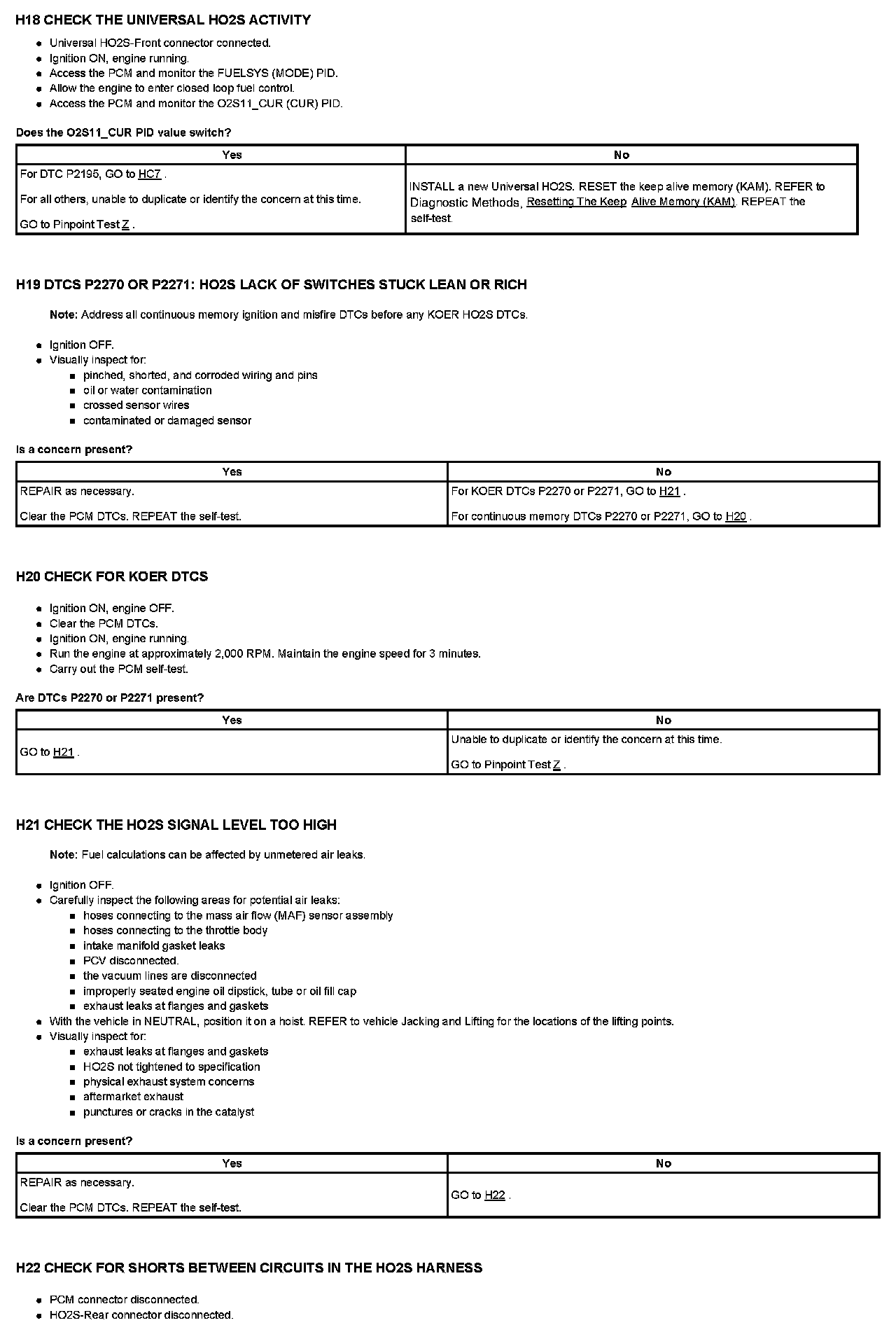

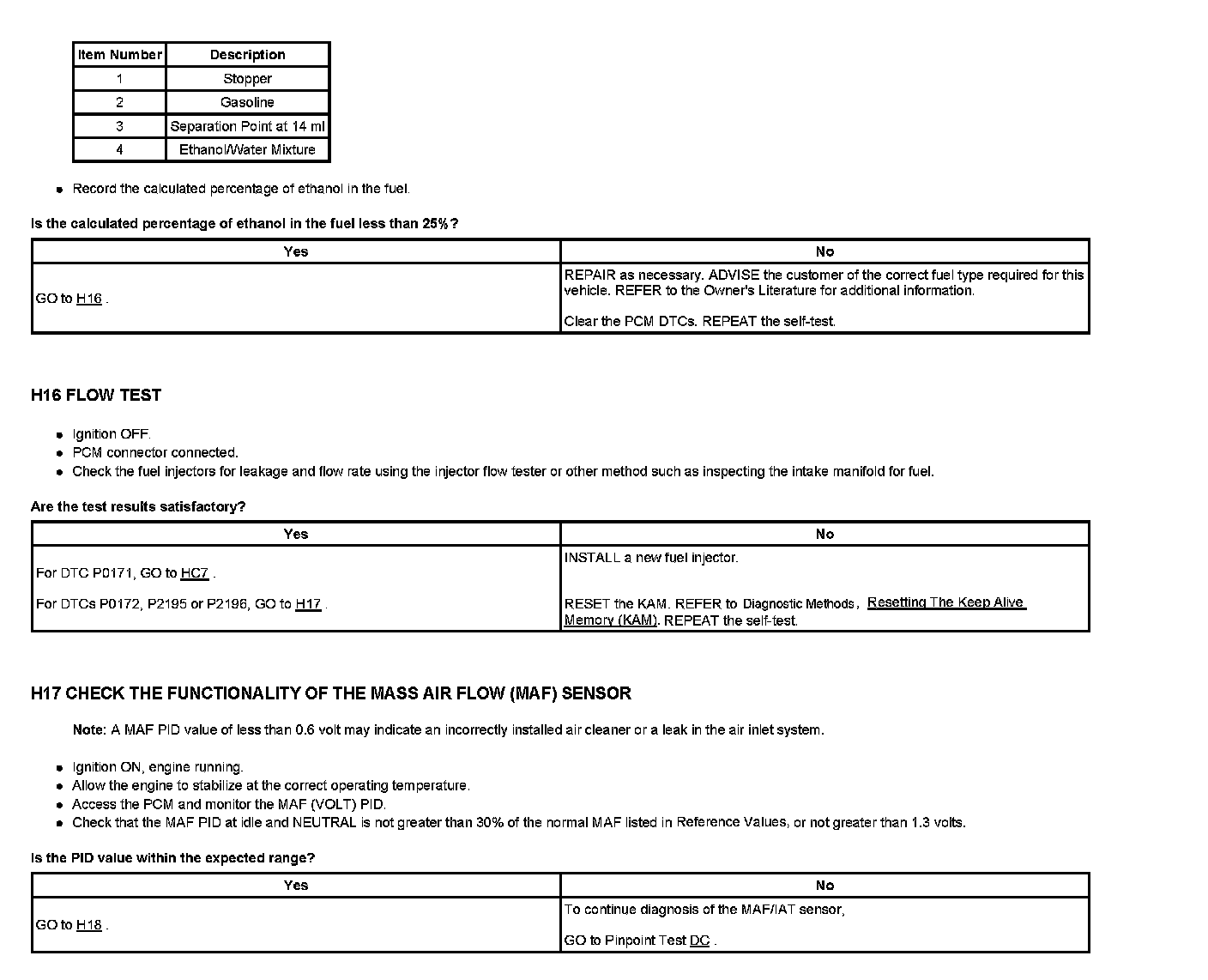

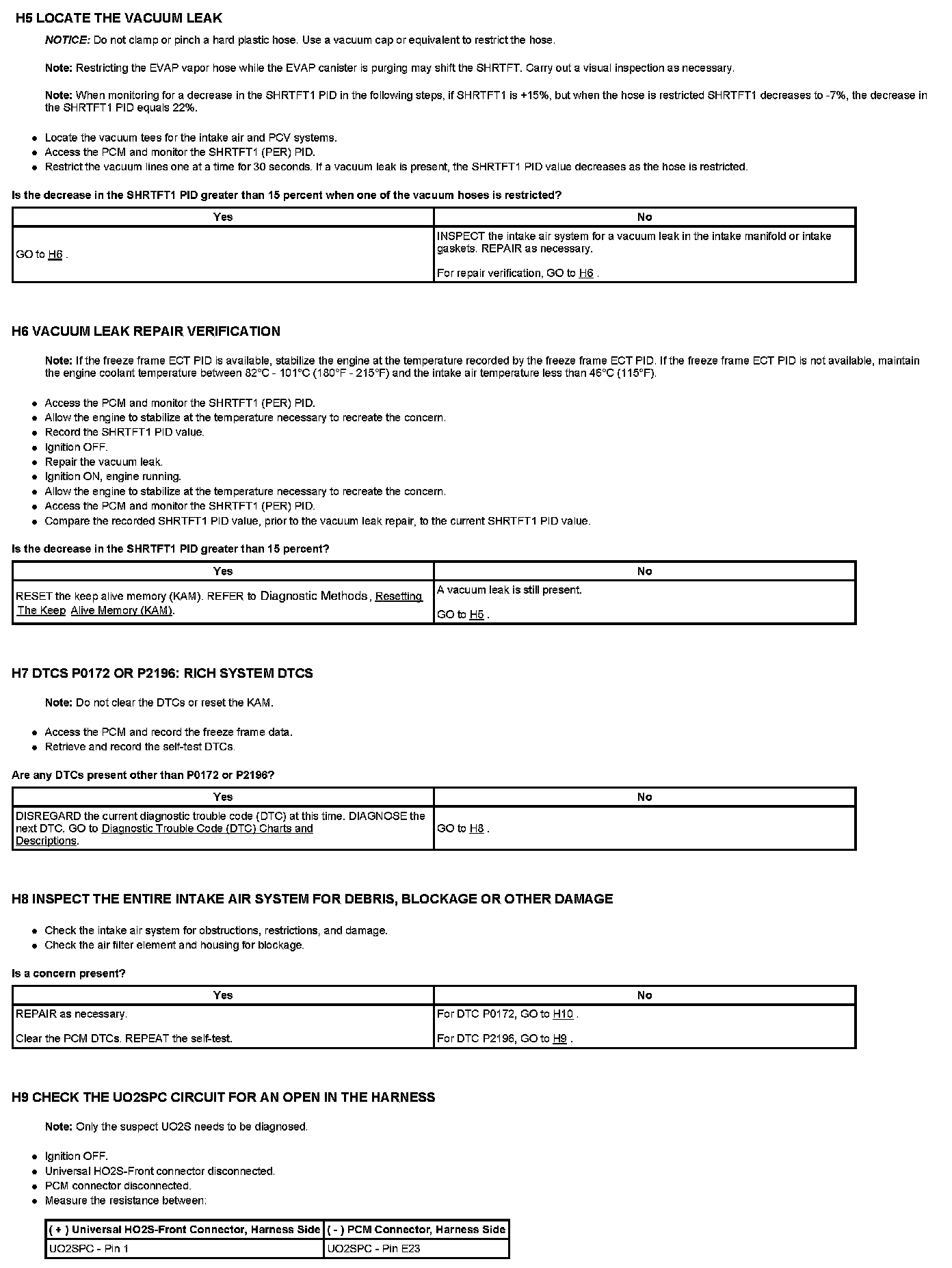

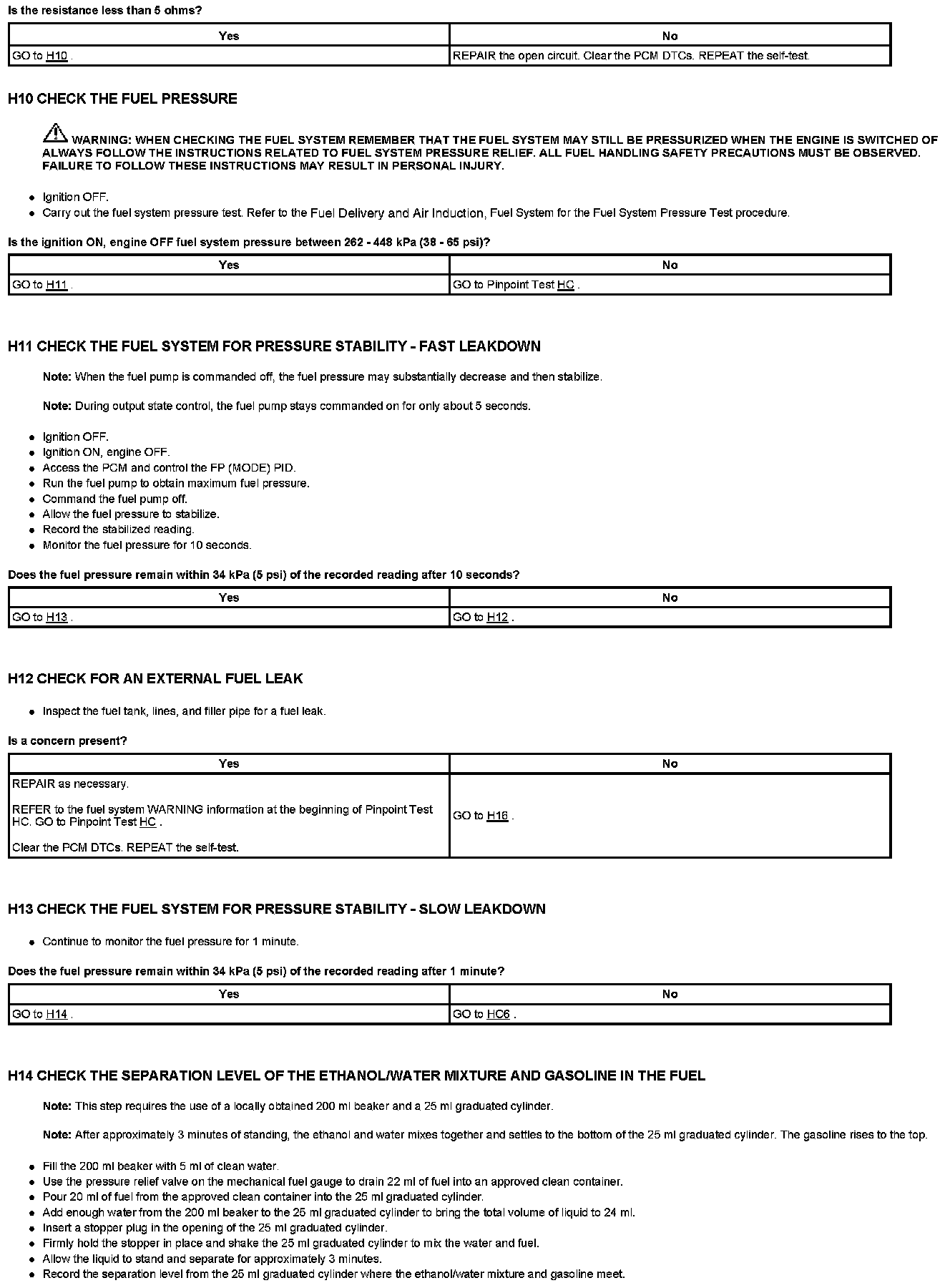

H: FUEL CONTROL







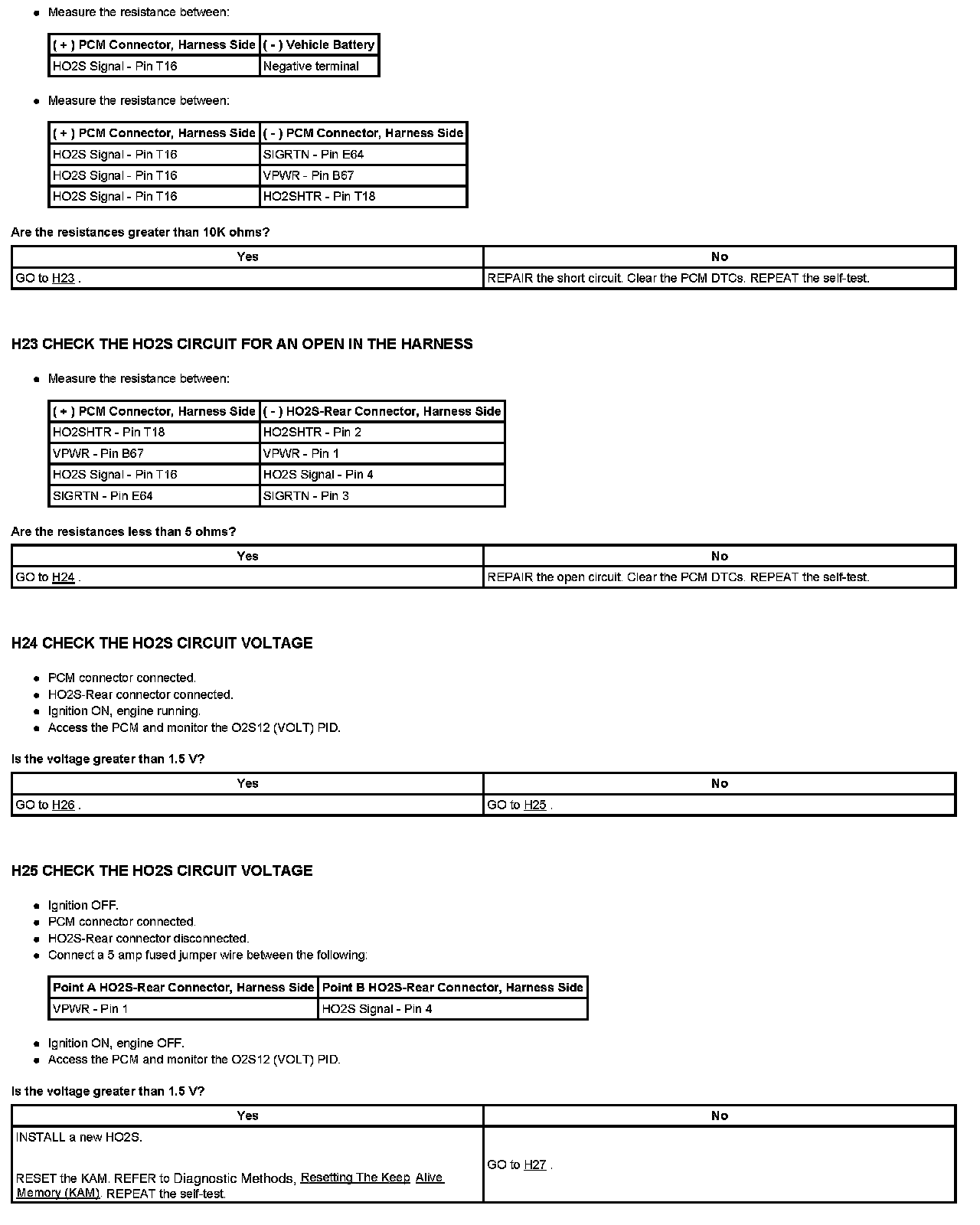

Heated Oxygen Sensor-Rear (HO2S-Rear) Connector












Universal HO2S-Front Connector

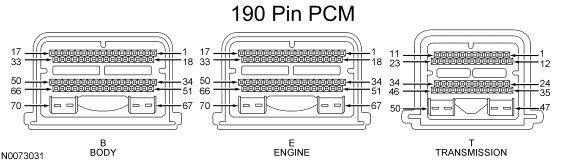

Powertrain Control Module (PCM) Connector
