LEMON Manuals
: Even more car manuals for everyone
Home
>>
Lincoln
>>
2012
>>
MKZ FWD L4-2.5L Hybrid
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>

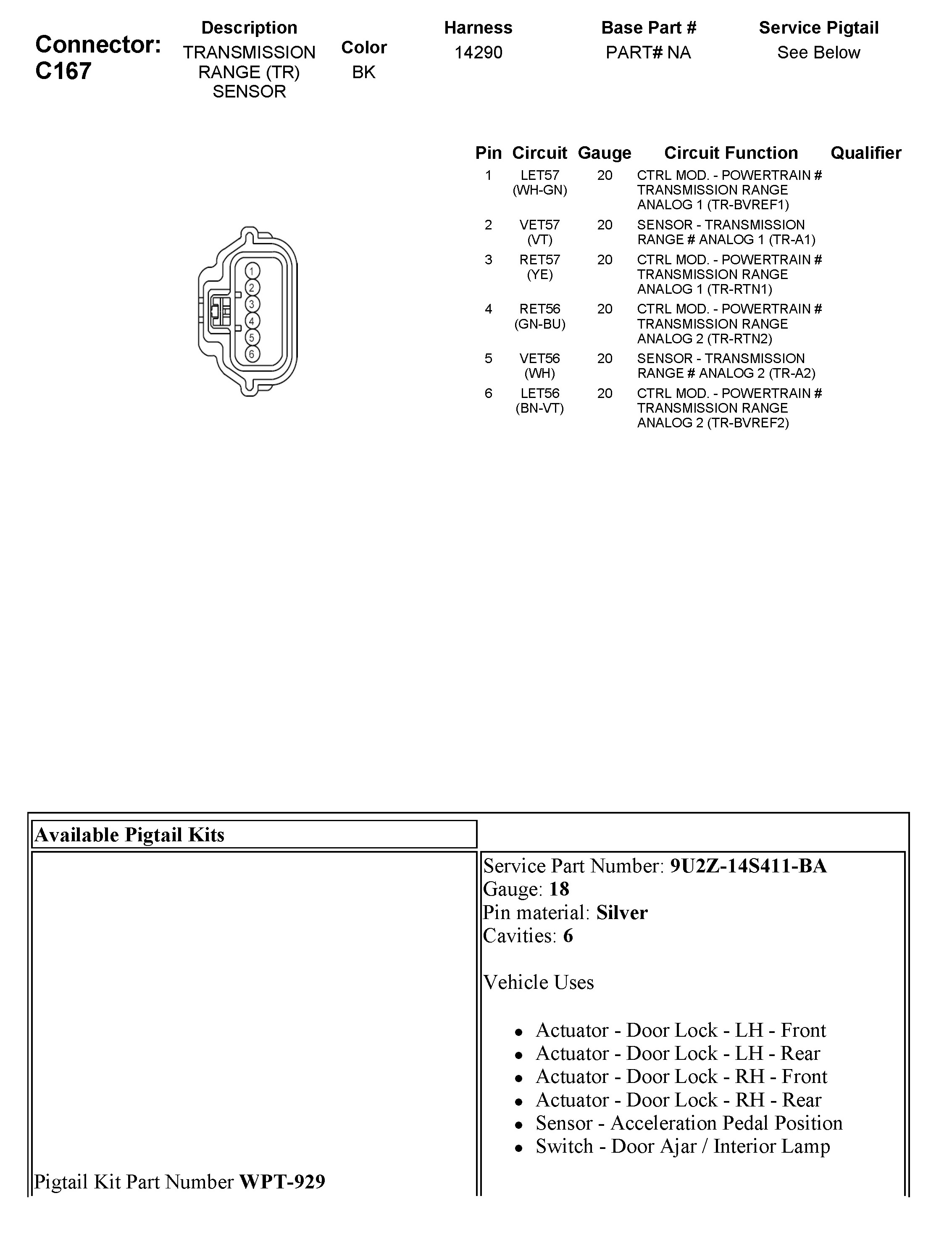

Transmission Position Sensor/Switch, CVT
Transmission Position Sensor/Switch, CVT
