Home >> Lincoln >> 2012 >> MKT FWD V6-3.7L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Power Seat Control Module >> C4250C Power-Fold Seat Module (PFSM)

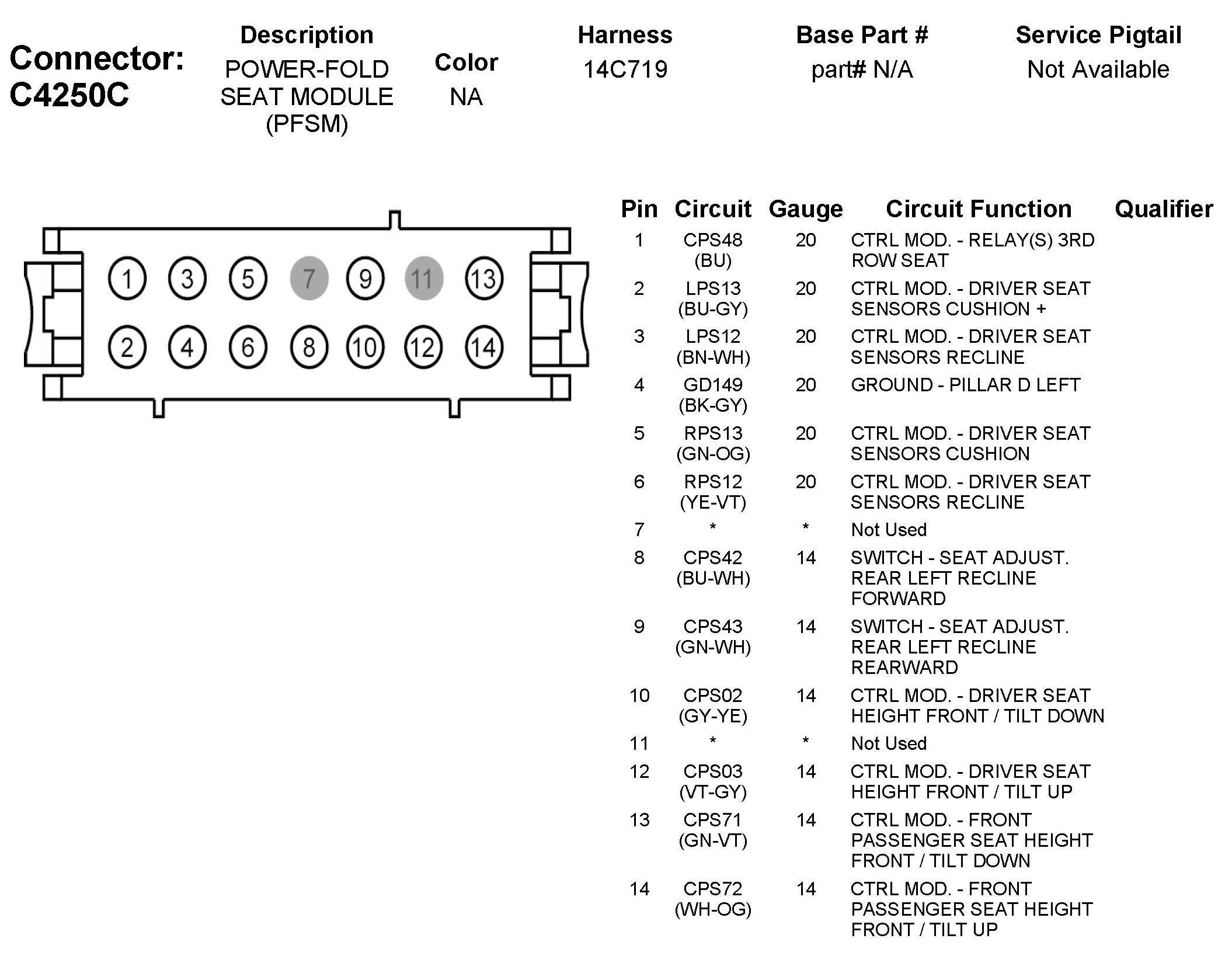

C4250C Power-Fold Seat Module (PFSM)
