Evaporative Emissions System
Evaporative Emissions System

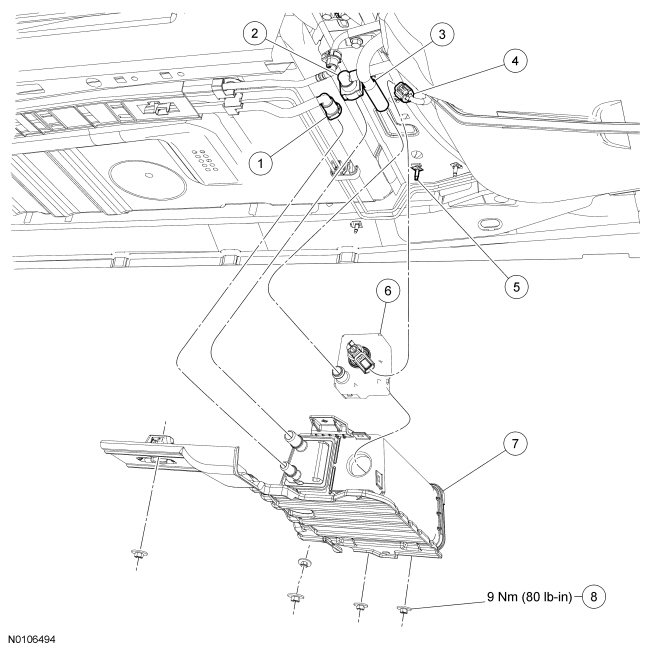

Evaporative Emission (
EVAP
) System Components - Exploded View
