Lincoln
>>
2012
>>
MKS AWD V6-3.7L
>>
Repair and Diagnosis
>>
Diagrams
>>

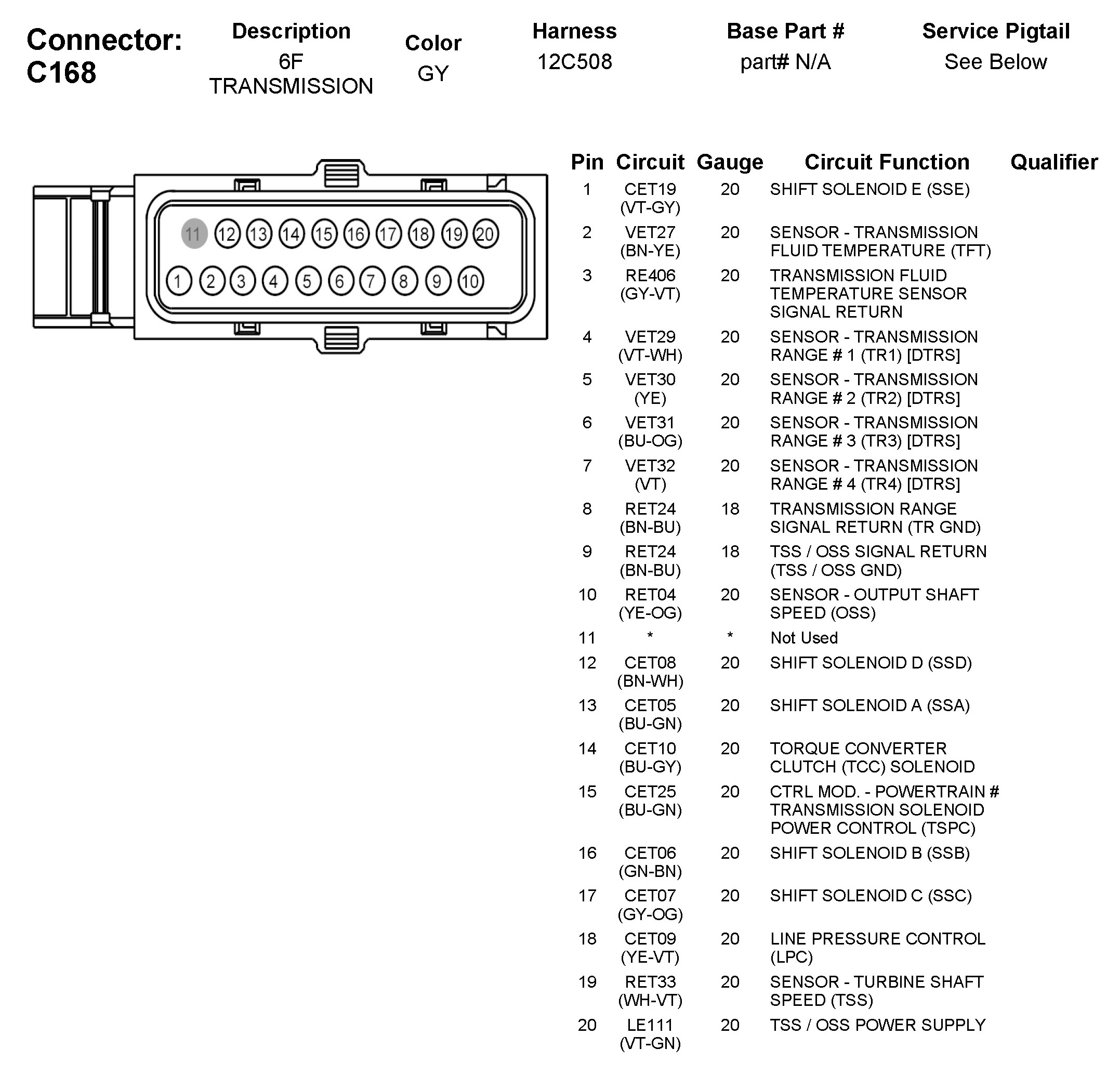

Connector Views
>>
Automatic Transmission/Transaxle
>>
System Diagram
System Diagram
