Home
>>
Lincoln
>>
2011
>>
Town Car V8-4.6L
>>
Repair and Diagnosis
>>
Diagrams
>>
Exploded Views
>>
Automatic Transmission/Transaxle
>>
System Diagram
System Diagram
Main Control Valve Body
Disassembly

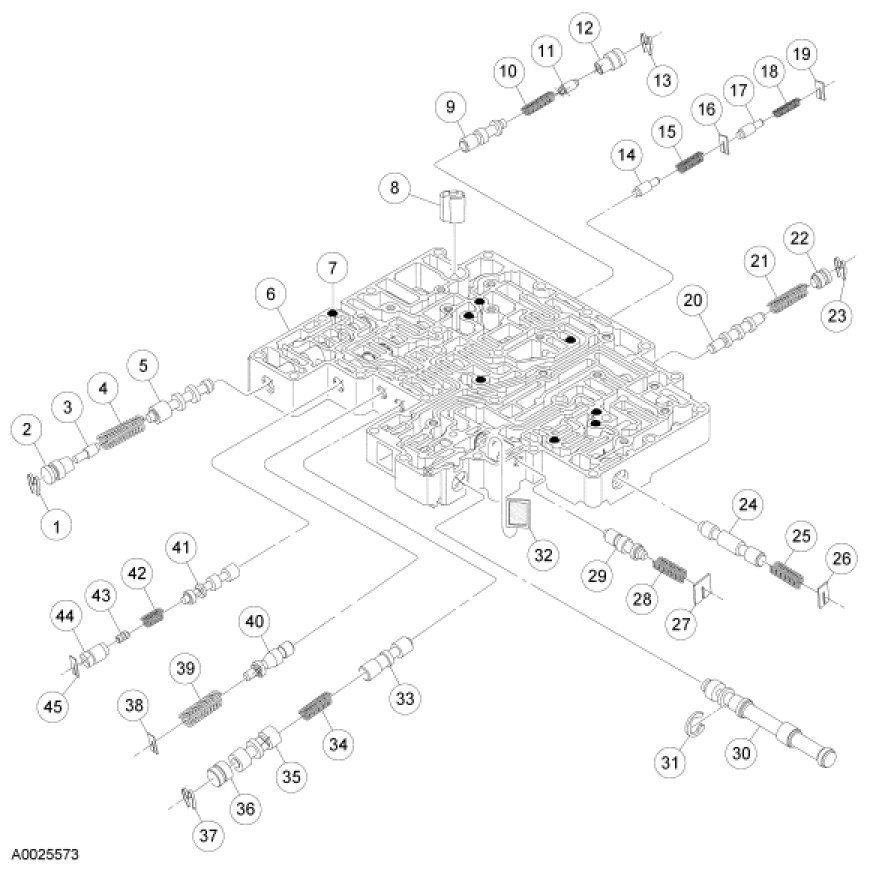

Main Control Valve Body - Disassembled View
