Home >> Lincoln >> 2011 >> MKZ FWD V6-3.5L >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Rear Door Window Motor

Rear Door Window Motor

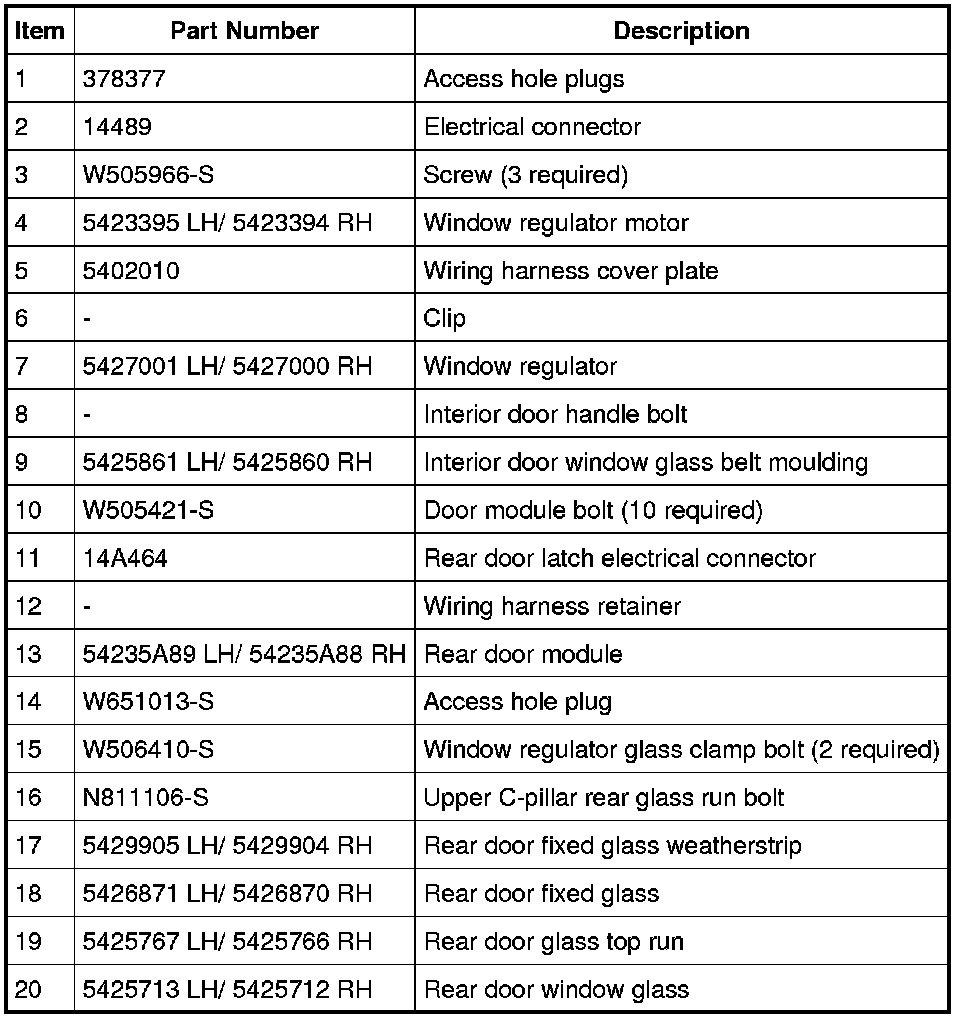

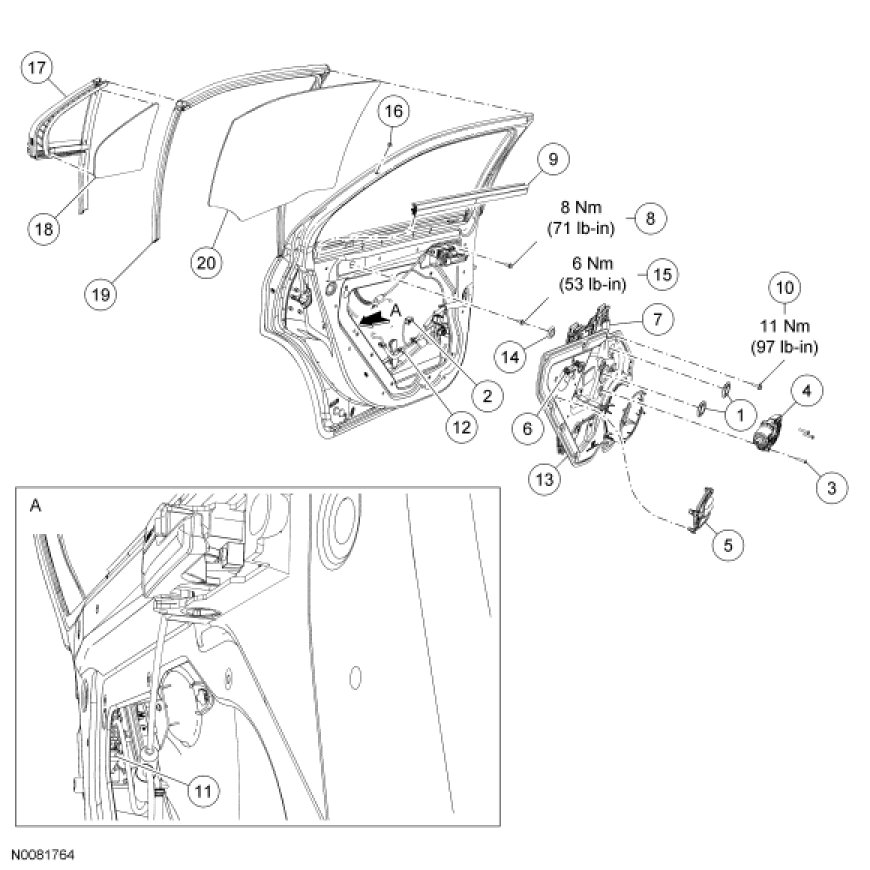

Glass, Frames and Mechanisms - Exploded View, Rear Door
