Home >> Lincoln >> 2011 >> MKZ AWD V6-3.5L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Seat Temperature Control Module >> C3305C Dual Climate Controlled Seat Module (DCSM)

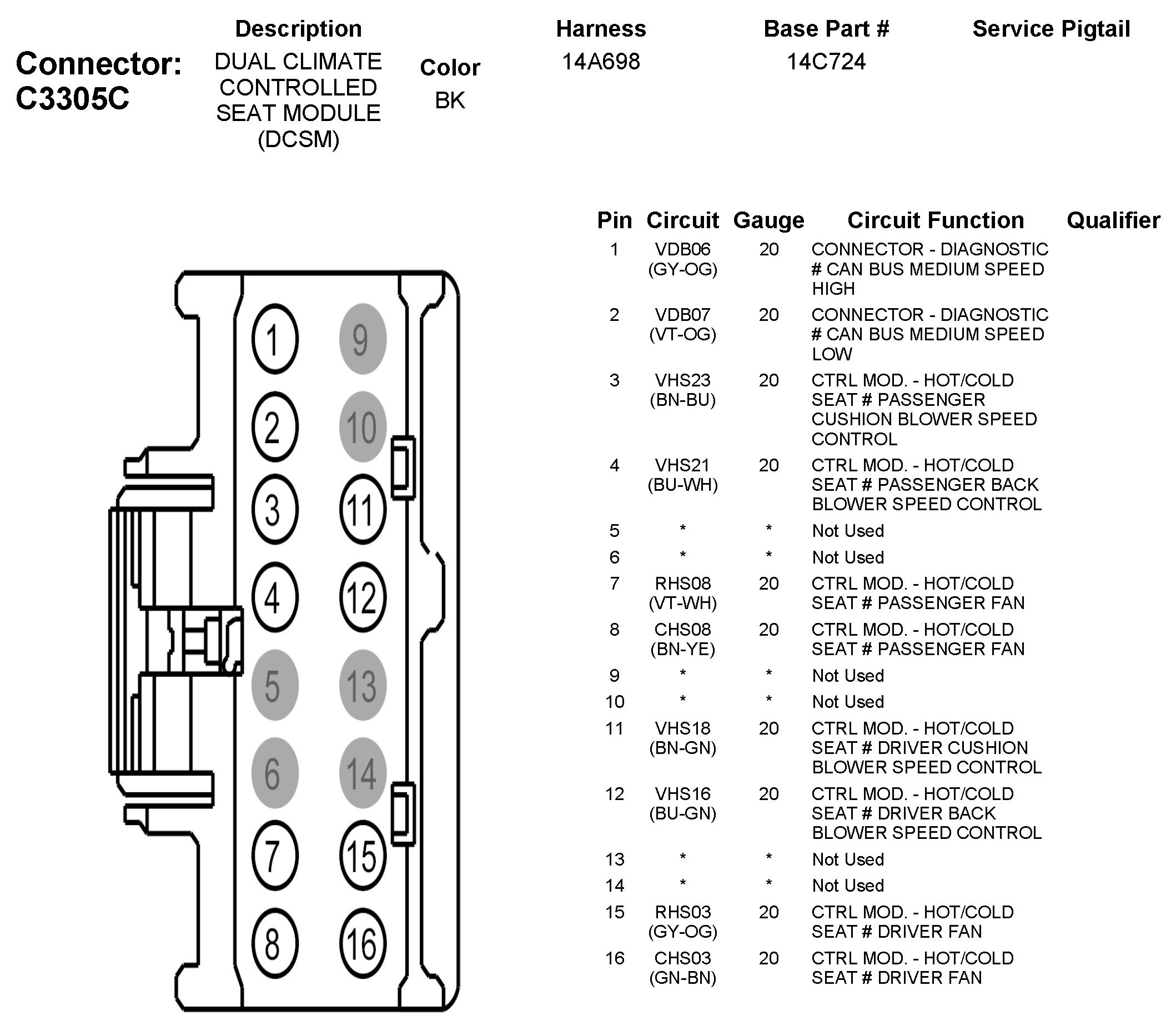

C3305C Dual Climate Controlled Seat Module (DCSM)
