Ambient Air Temperature Sensor

Ambient Air Temperature Sensor









Removal and Installation

1. Remove the front bumper cover. For additional information, refer to Bumpers Service and Repair.

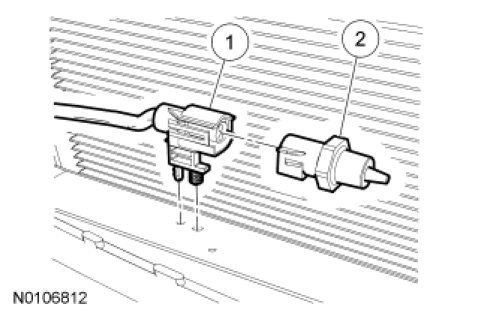

2. Detach the ambient temperature sensor electrical connector pin-type retainer from the front bumper beam.

3. Disconnect the ambient temperature sensor electrical connector and remove the ambient temperature sensor.

4. To install, reverse the removal procedure.
