Wiper and Washer Systems




Wiper and Washer System - Exploded View

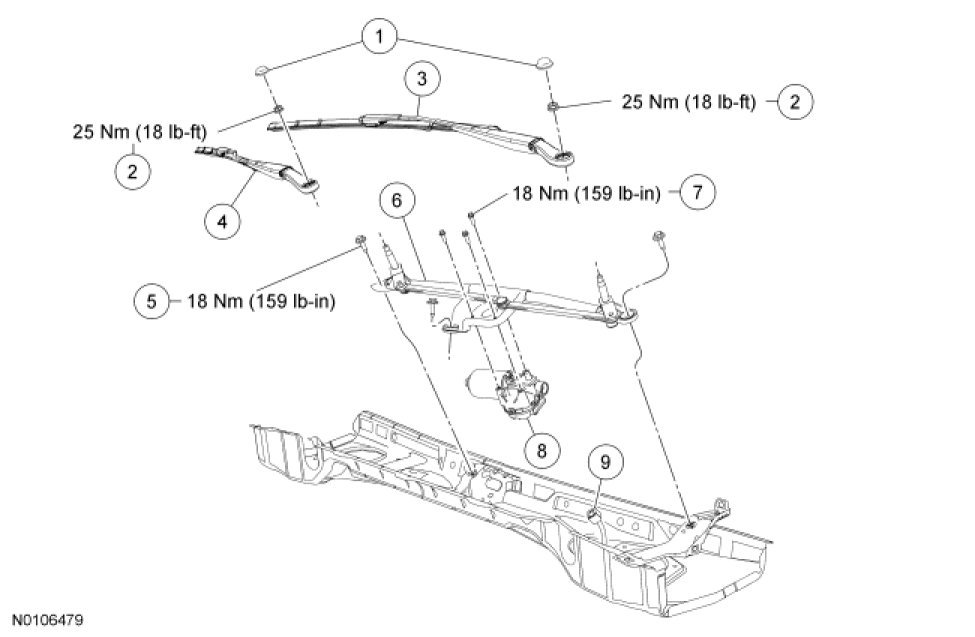

Front Wipers

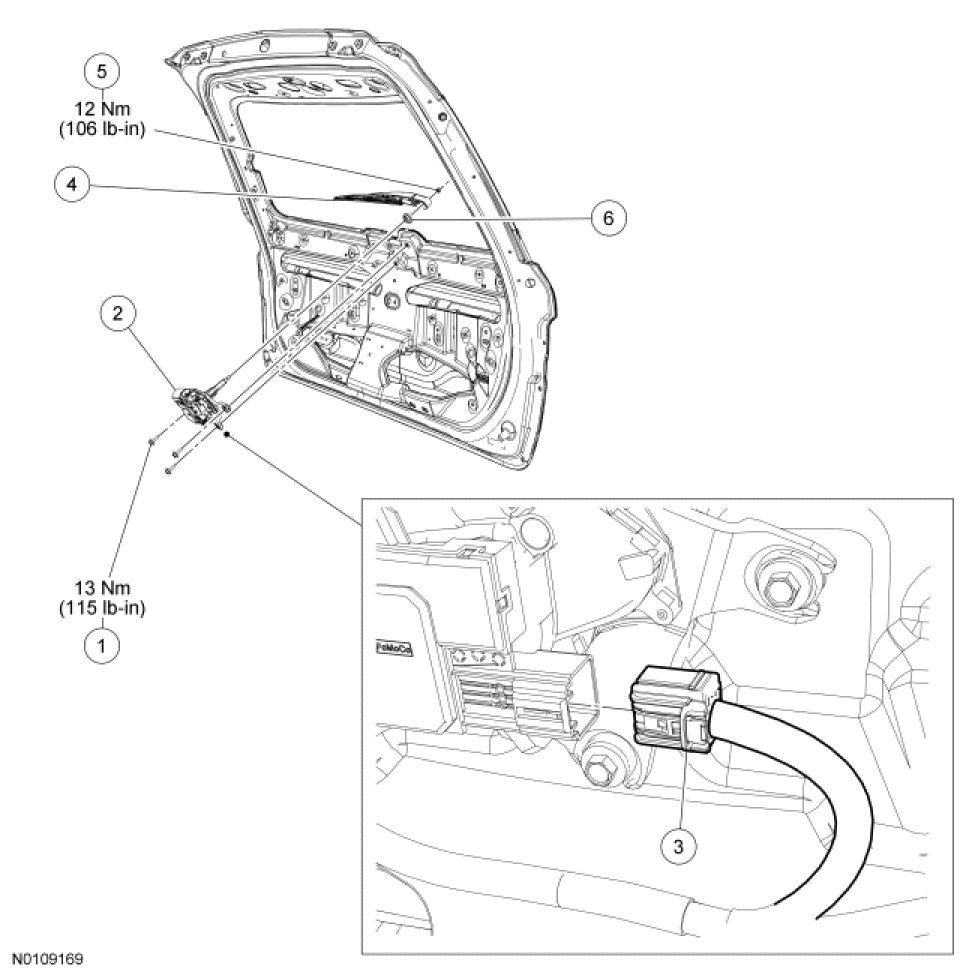

Rear Wiper

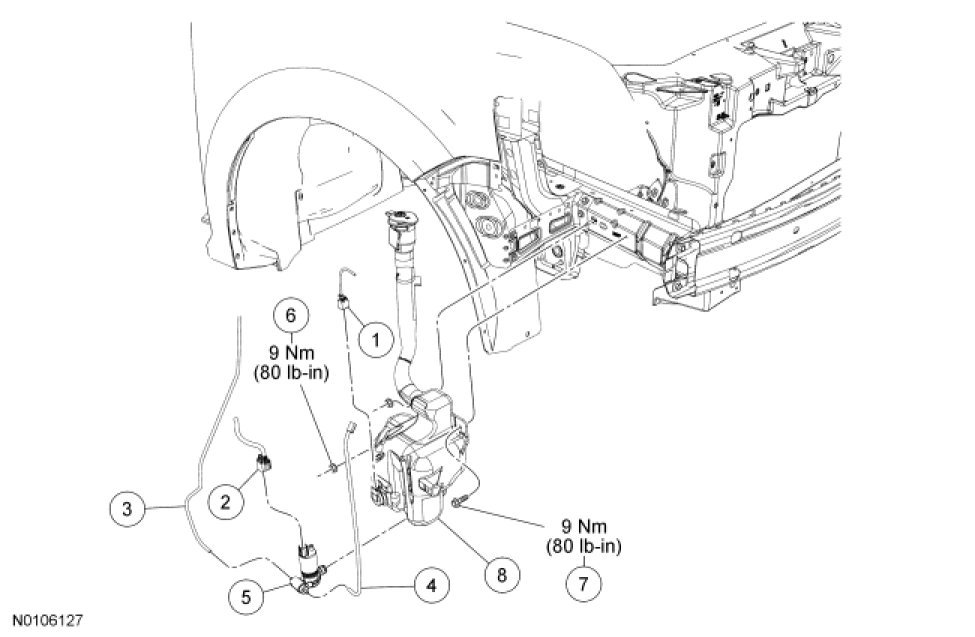

Washer Pump and Reservoir
