Exterior Mirrors - Exploded View

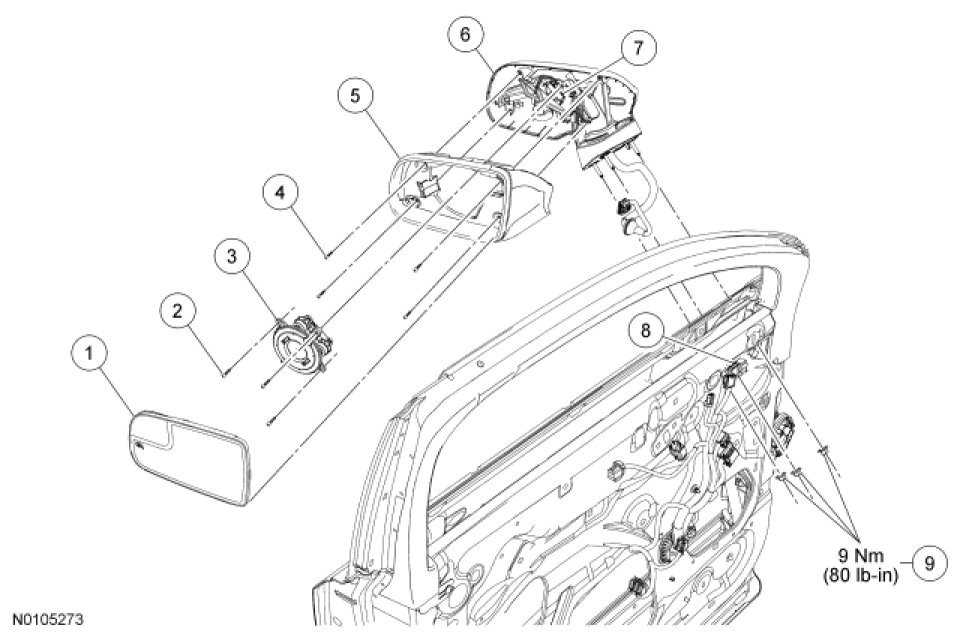

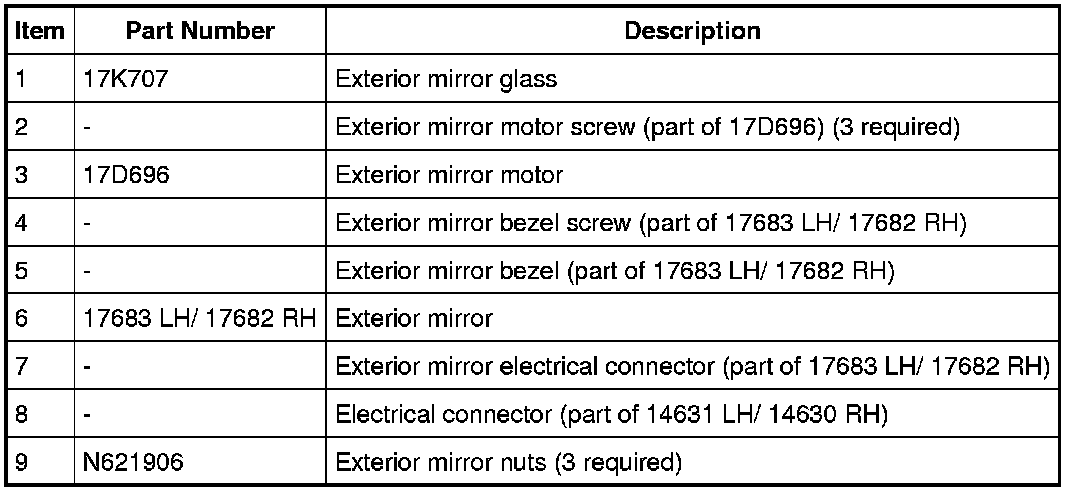

Exterior Mirrors - Exploded View
Exterior
Mirrors
- Exploded View
NOTE:
LH shown, RH similar.
