Rear Entertainment Module (RETM)

Rear Entertainment Module (RETM)

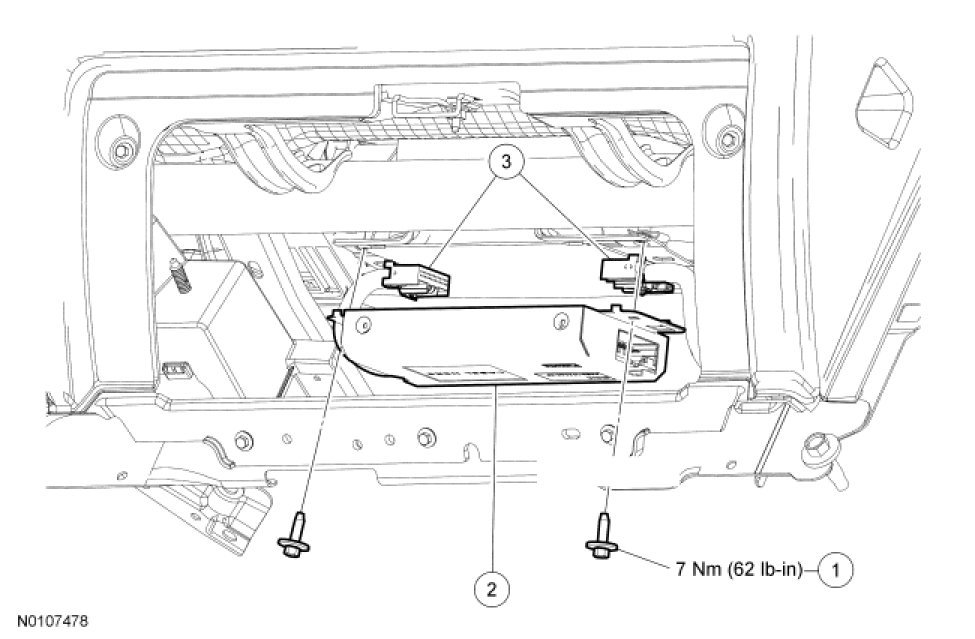

NOTE: The glove compartment is shown removed for clarity only.









Removal and Installation

1. Open the glove compartment completely.

2. Disconnect the Rear Entertainment Module (RETM) electrical connectors.

3. Remove the 2 screws and the RETM.
- To install, tighten to 7 Nm (62 lb-in).

4. To install, reverse the removal procedure.
