Seat - Exploded View, Front




Seat - Exploded View, Front

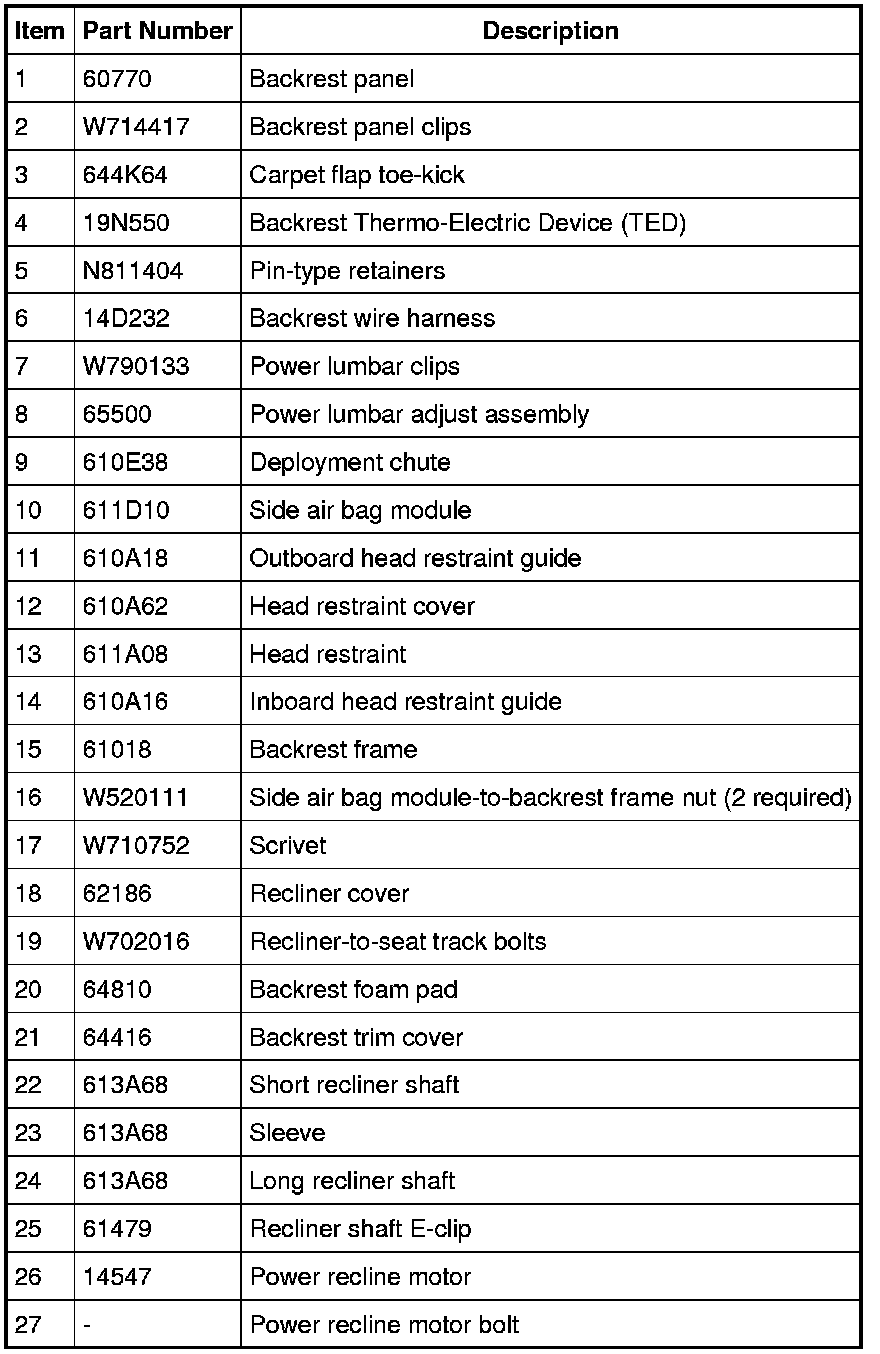

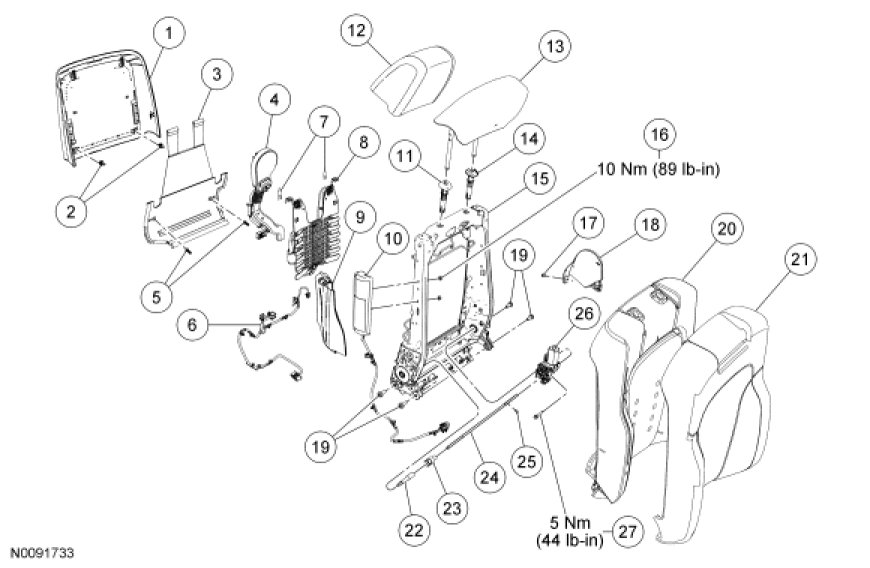

Passenger Seat Backrest

NOTE: Passenger backrest shown, driver backrest similar.

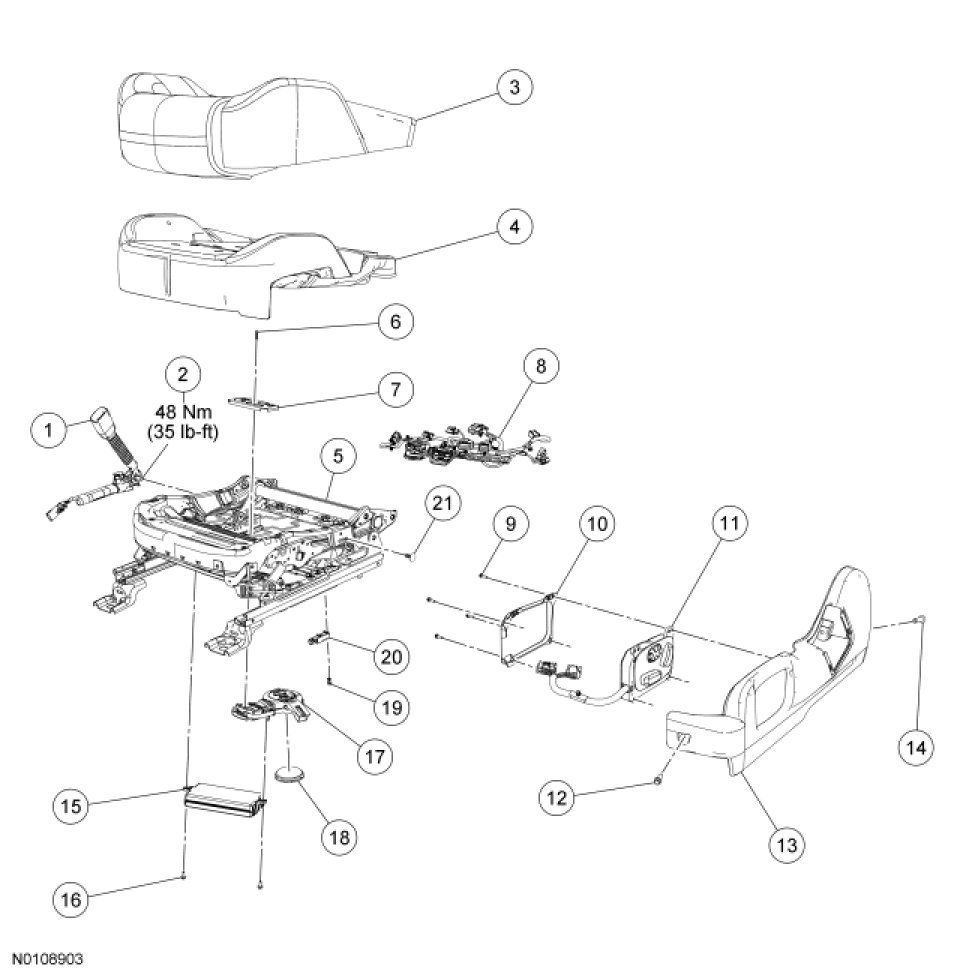

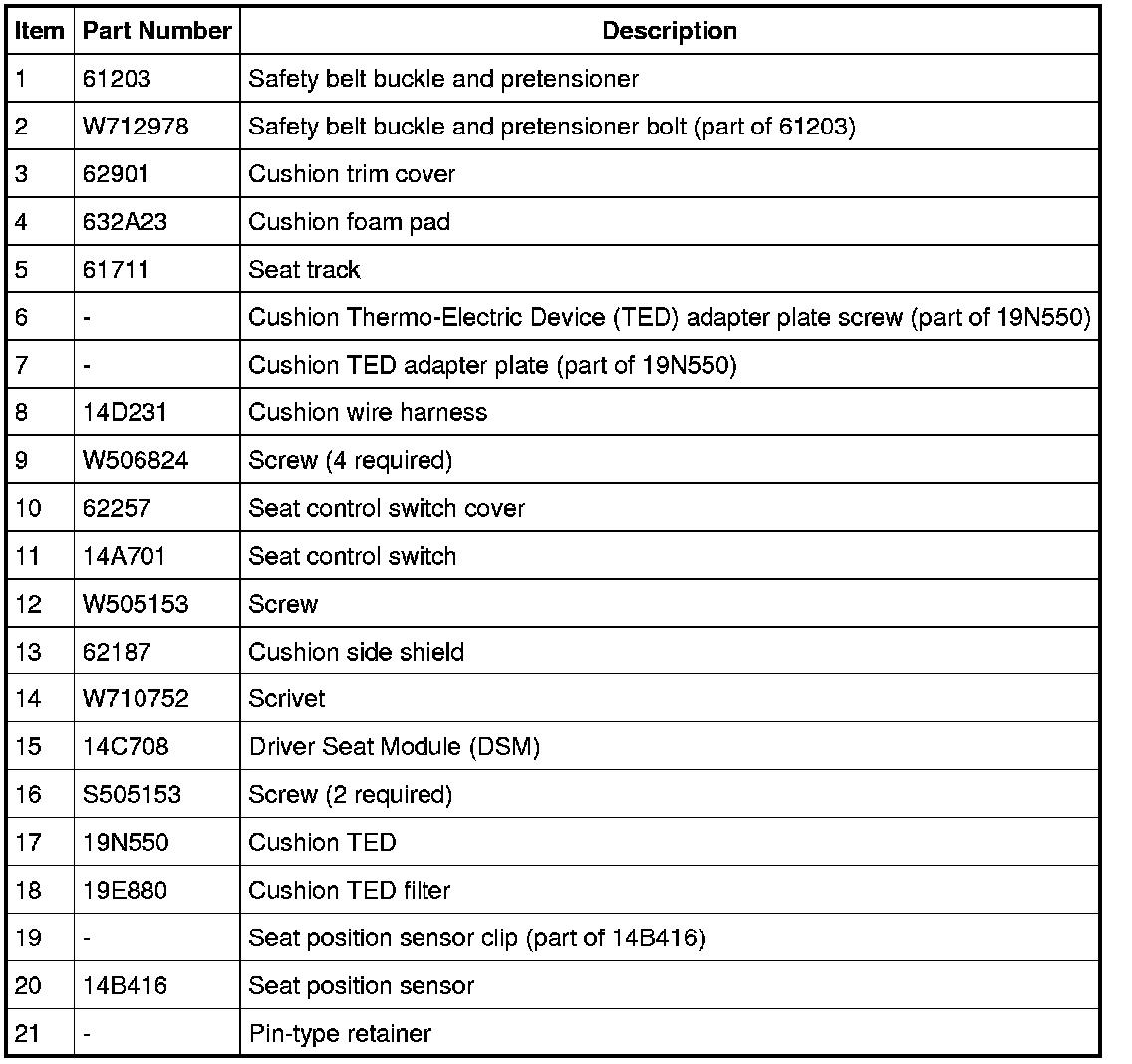

Driver Seat Track

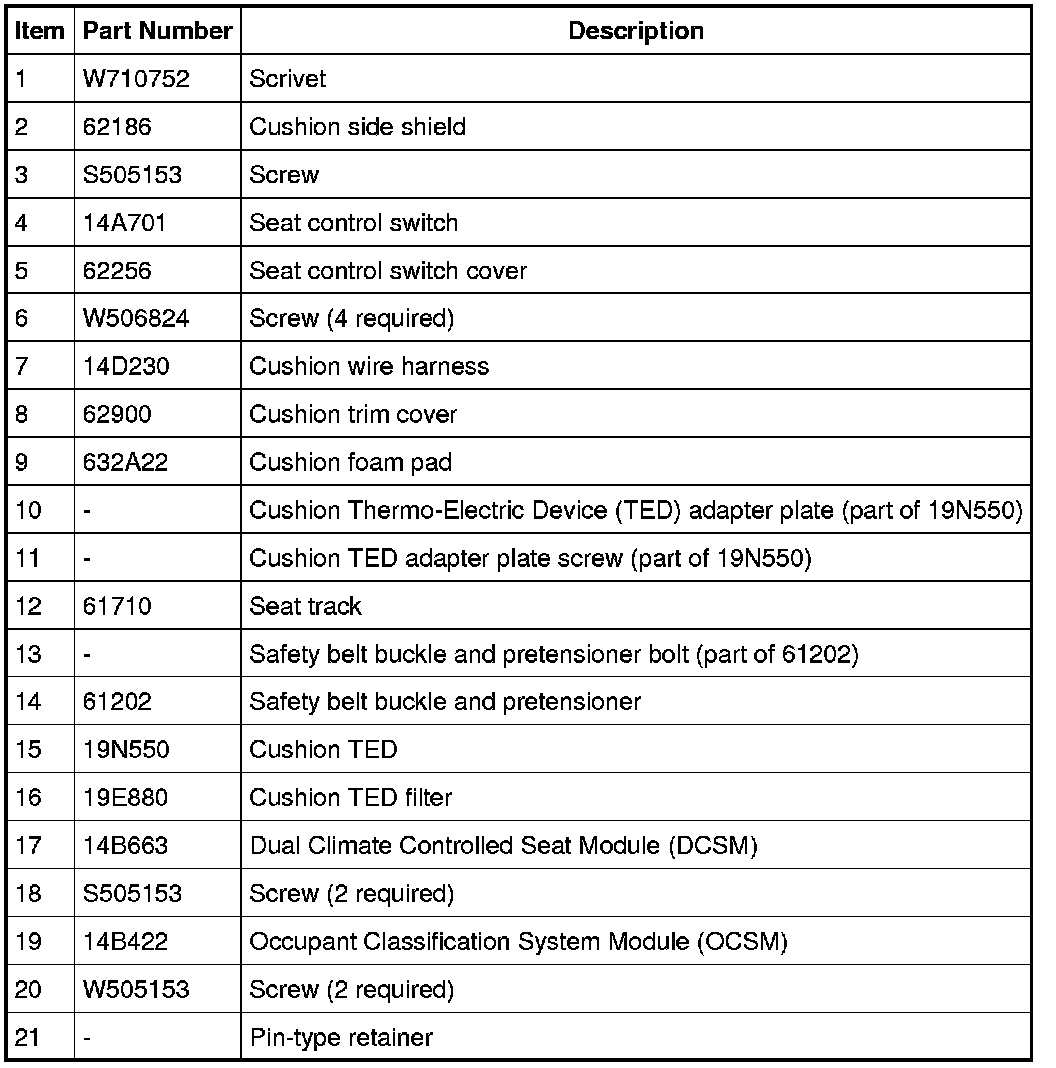

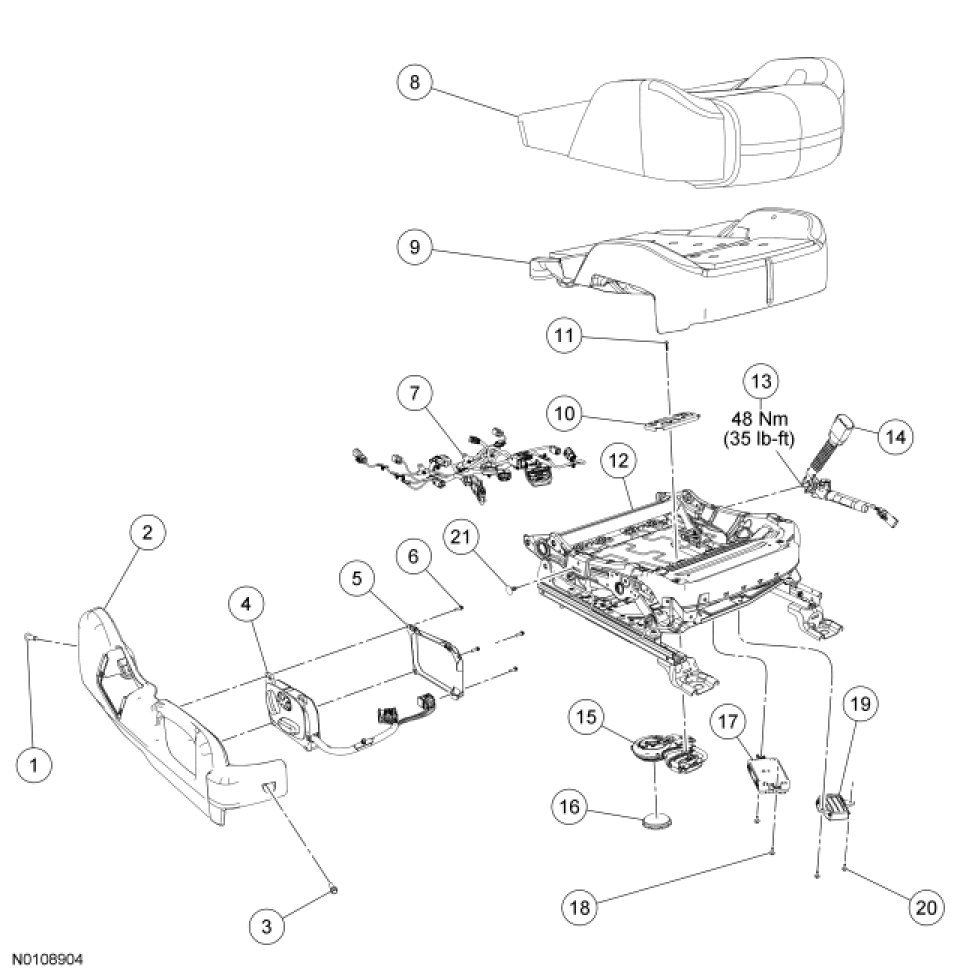

Passenger Seat Track
