Global Positioning System Module: Service and Repair

Global Positioning System Module (GPSM)









Removal and Installation

1. Remove the Instrument Panel Cluster (IPC). For additional information, refer to Instrumentation, Message Center, and Warning Chimes Instrument Panel Cluster (IPC).

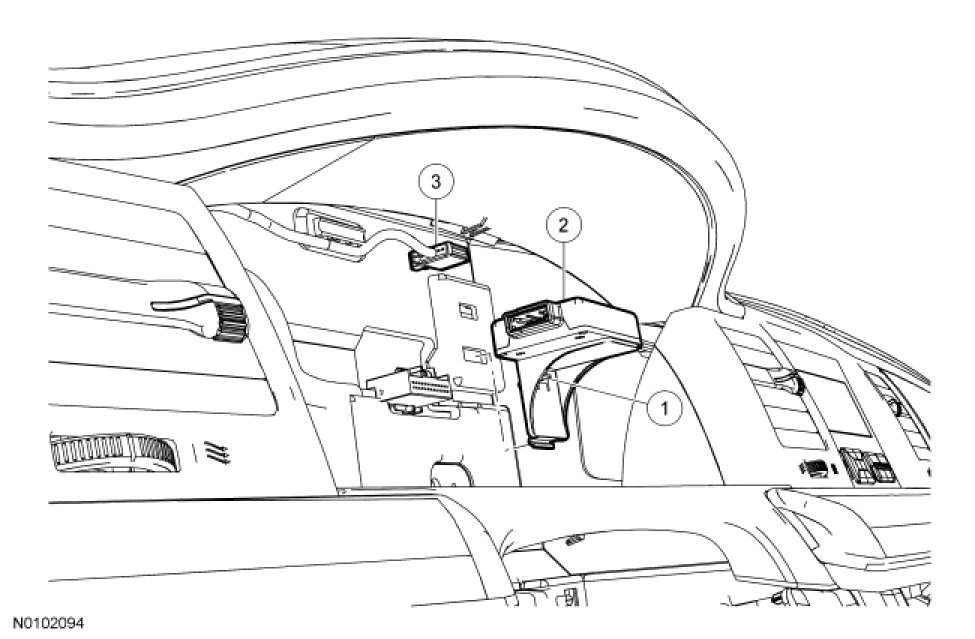

2. Release the locking tab, rotate the bracket downward, and remove the Global Positioning System Module (GPSM).
- Disconnect the electrical connector.

3. To install, reverse the removal procedure.
