Exploded View Images




Main Control Valve Body

Disassembly

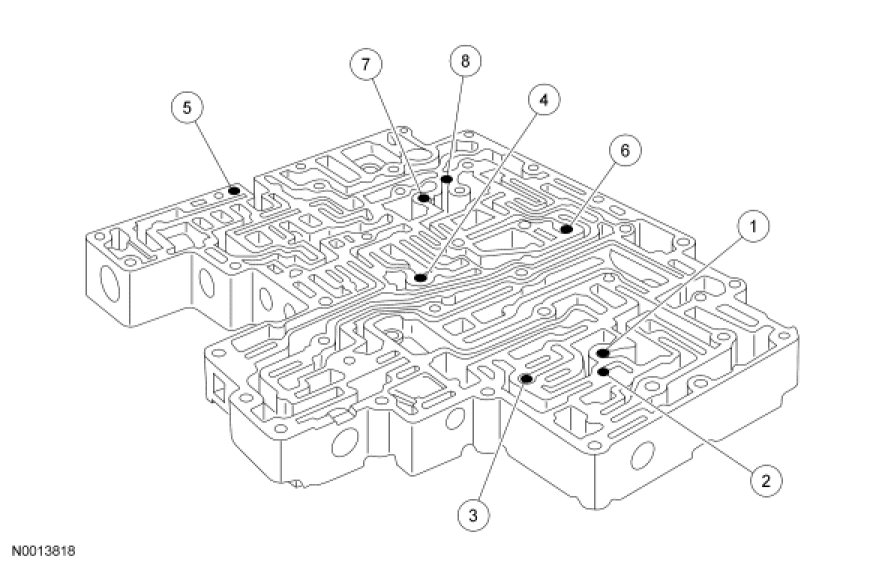

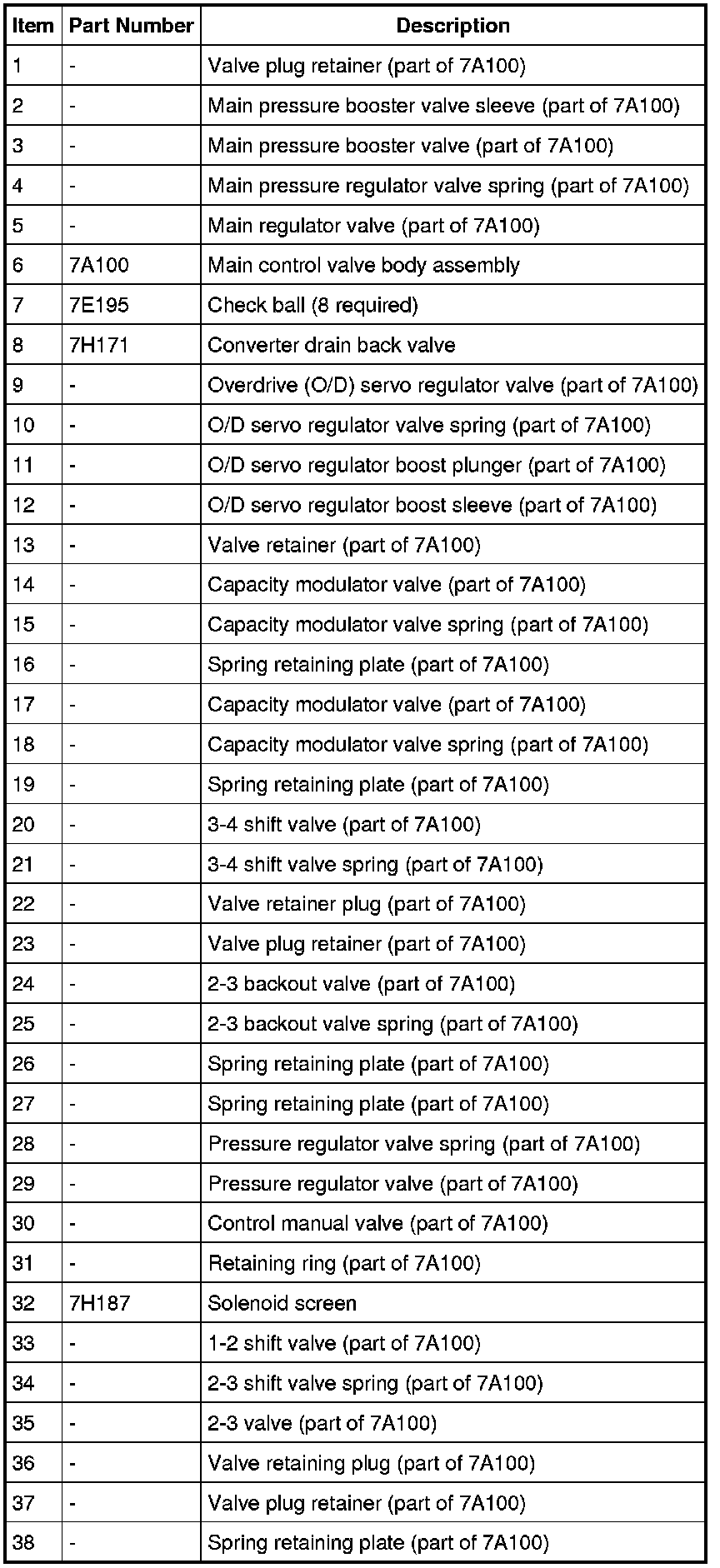

Main Control Valve Body - Disassembled View














Note the location of the 8 coasting booster valve shuttle balls.
