Flex Plate
Flex Plate

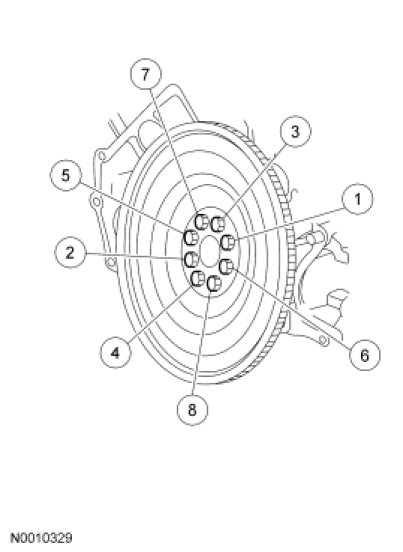

Install the flexplate and the 8 bolts in the sequence shown.
Tighten to
80 Nm (59 lb-ft).
