Fuel Tank and Filler Pipe - Exploded View
Fuel Tank and Filler Pipe - Exploded View
Fuel Tank and Filler Pipe - Exploded View

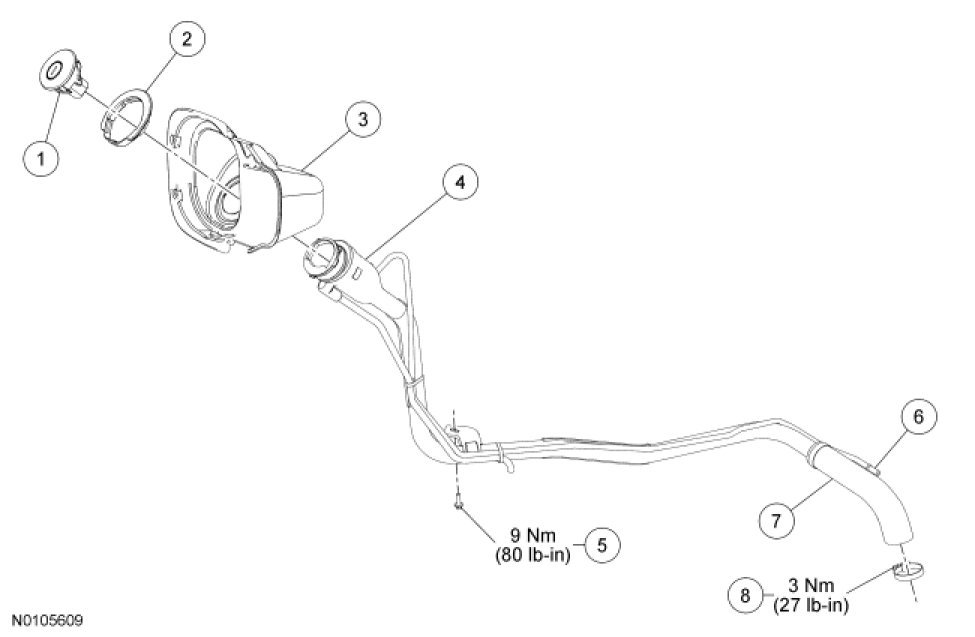

Fuel Tank Filler Pipe Assembly

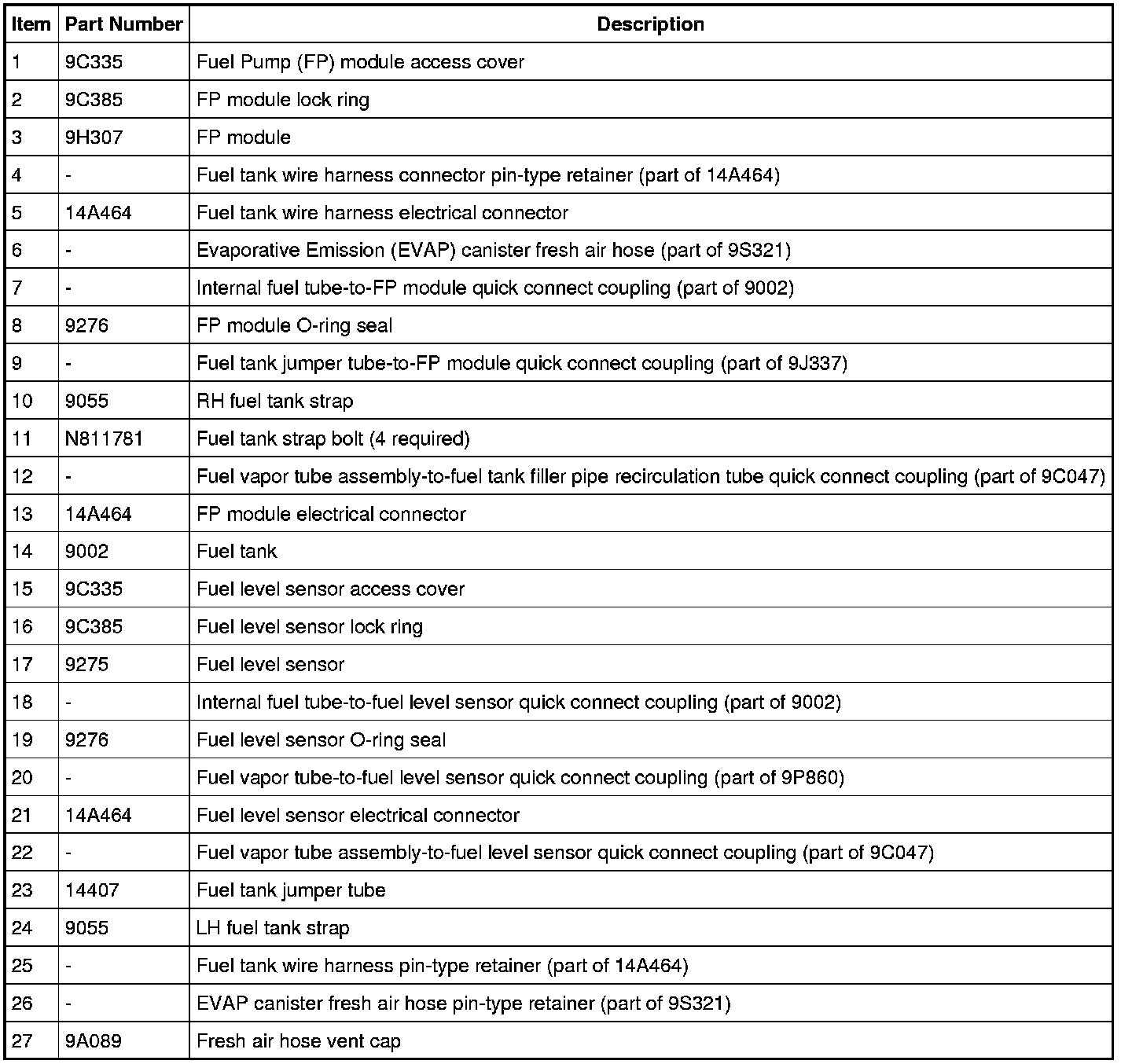

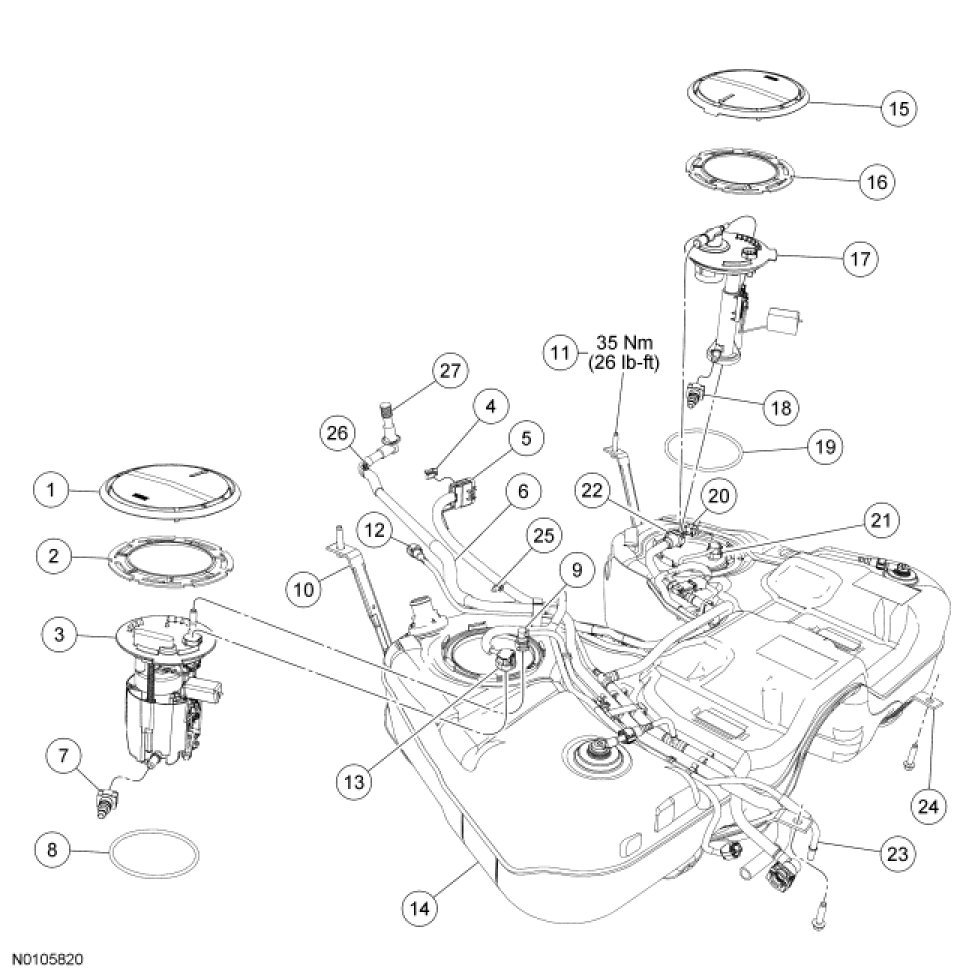

Fuel Tank Assembly
