Fuel Tank And Filler Pipe - Exploded View




Fuel Tank and Filler Pipe - Exploded View



Fuel Tank Filler Pipe Assembly

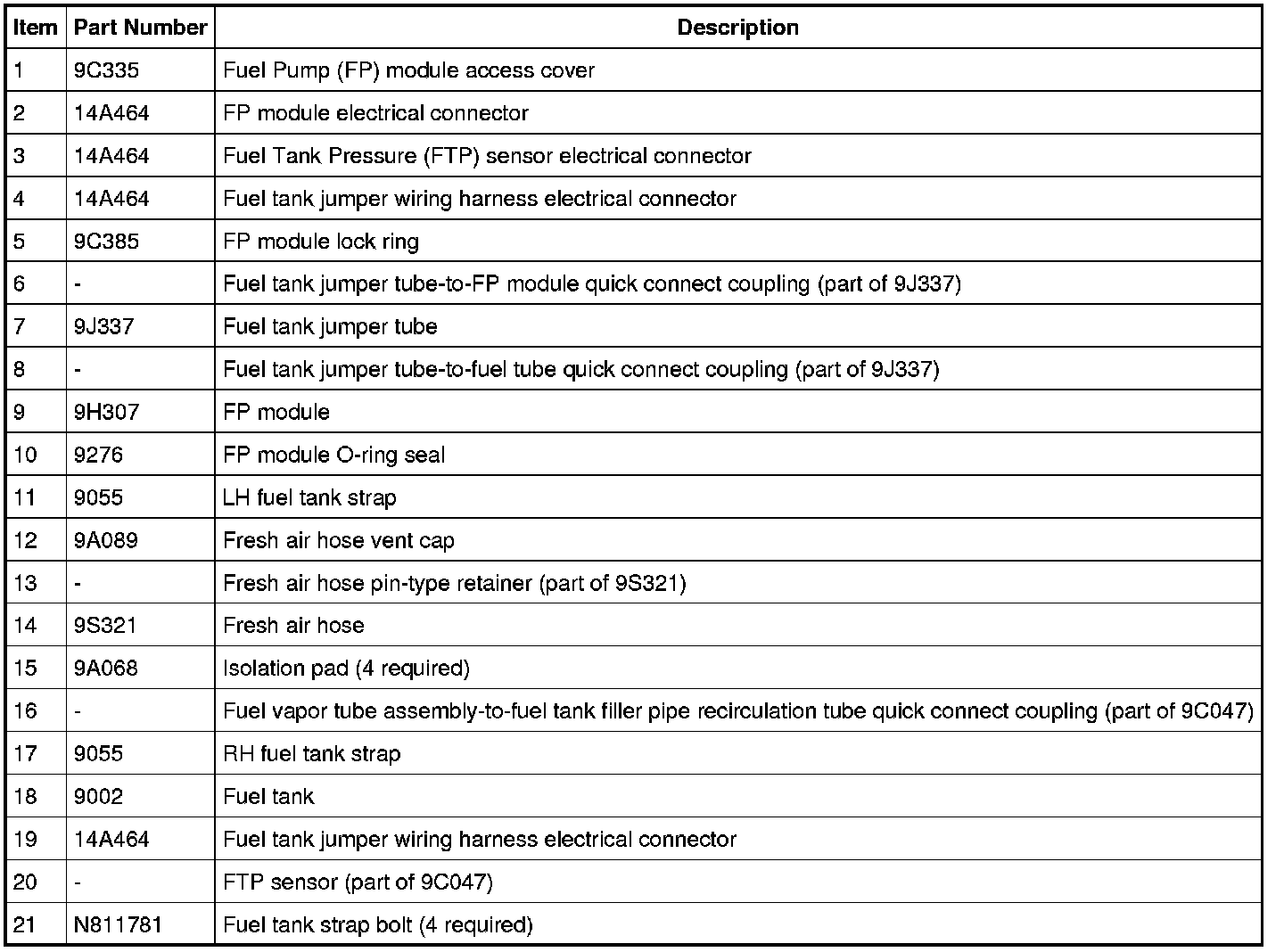

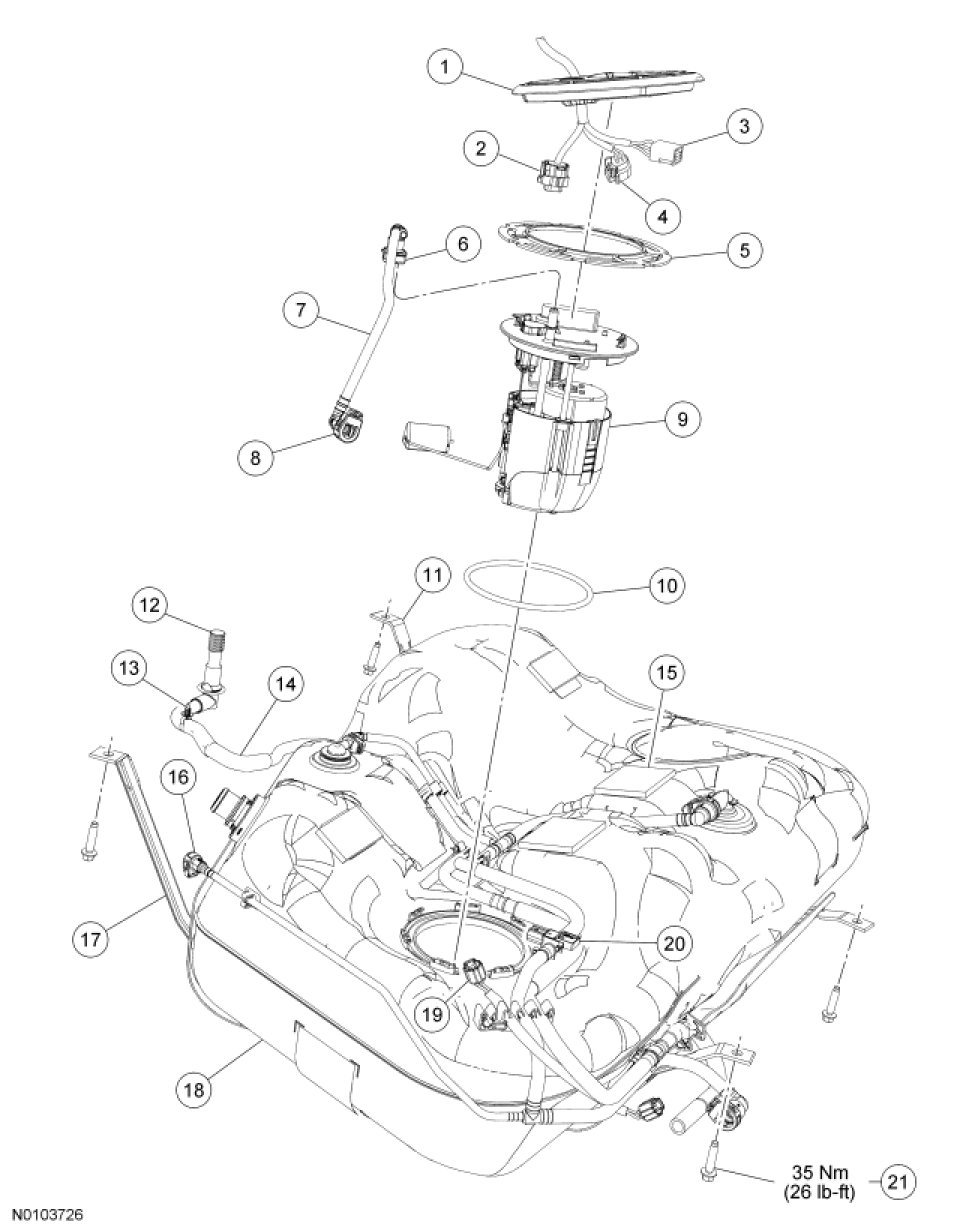

L-Shaped Fuel Tank

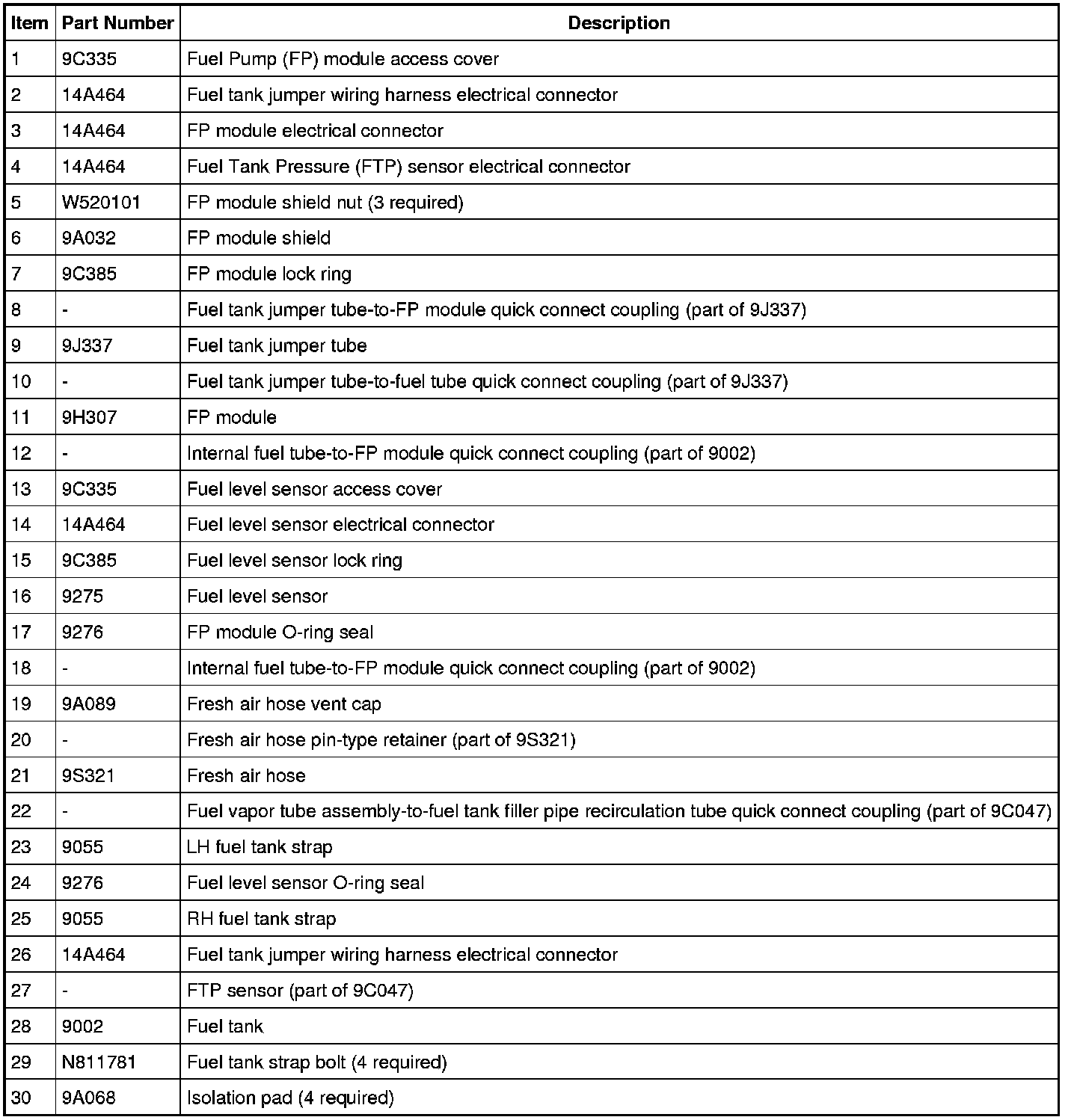

Saddle Type Fuel Tank
