Home >> Lincoln >> 2009 >> Town Car V8-4.6L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Air Bag Control Module

Air Bag Control Module

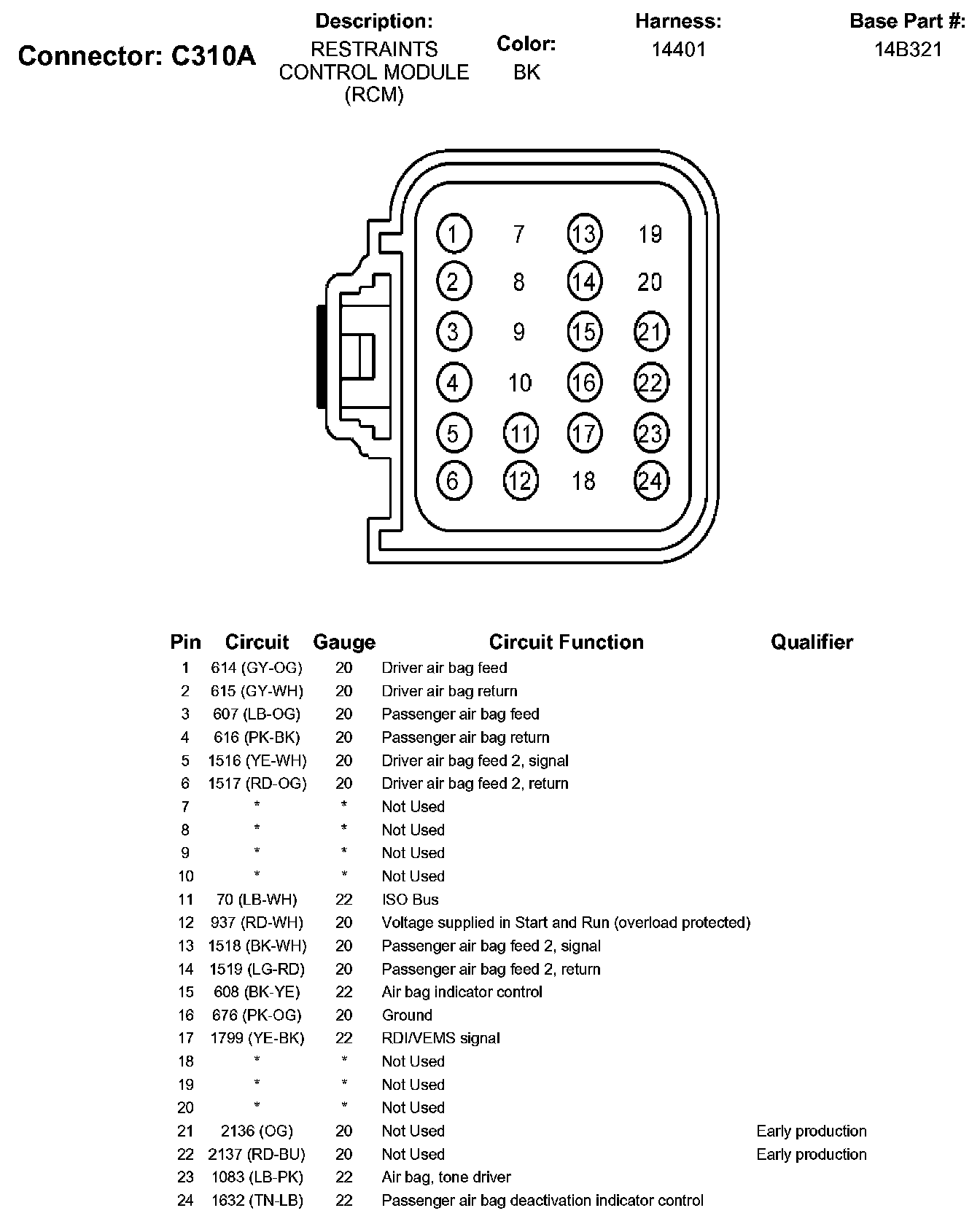

Part 1:

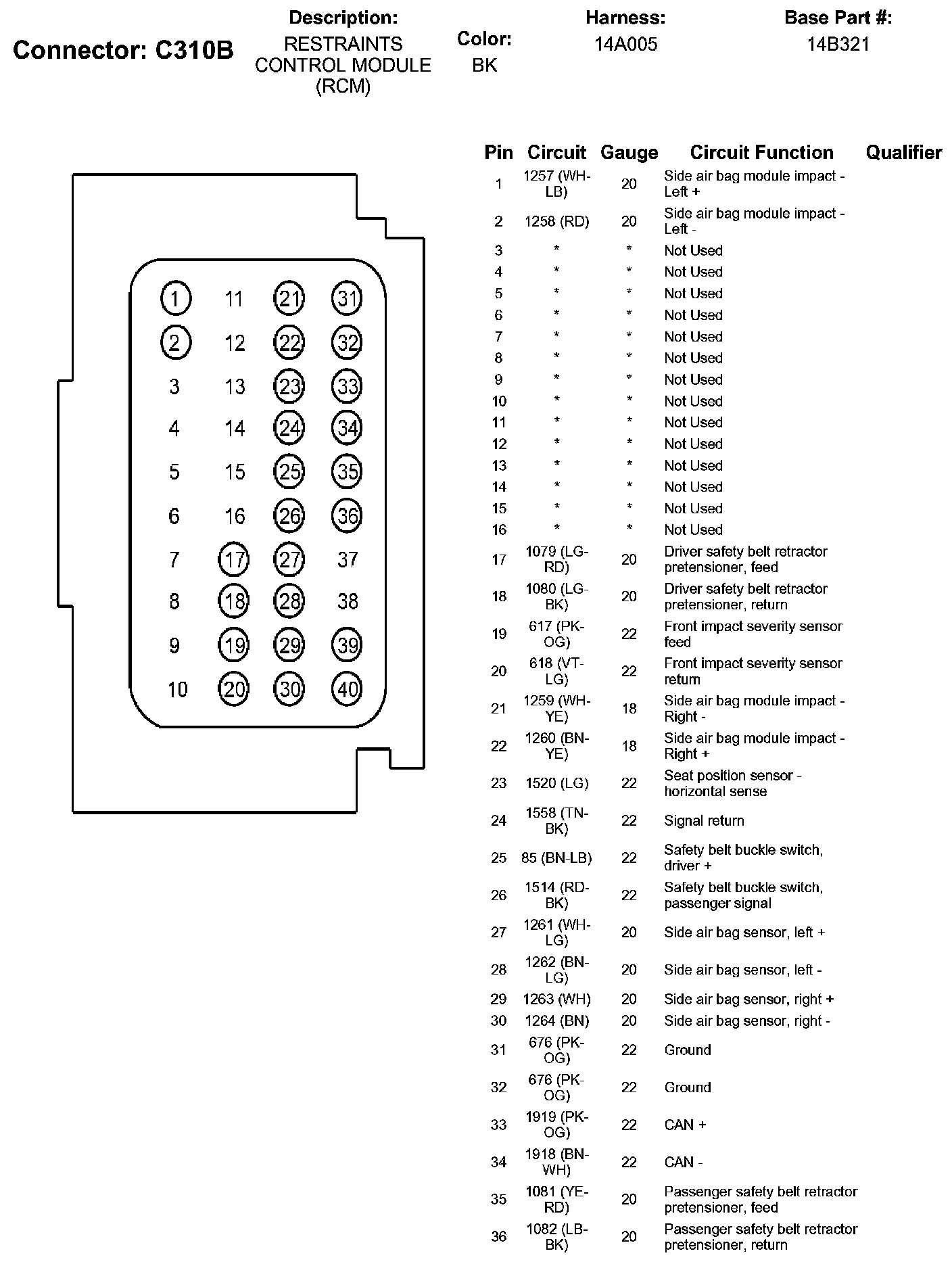

Part 2:
