Home >> Lincoln >> 2009 >> MKS FWD V6-3.7L >> Repair and Diagnosis >> Lighting and Horns >> Headlamp >> Headlamp Control Module >> Diagrams >> Headlamp Control Module

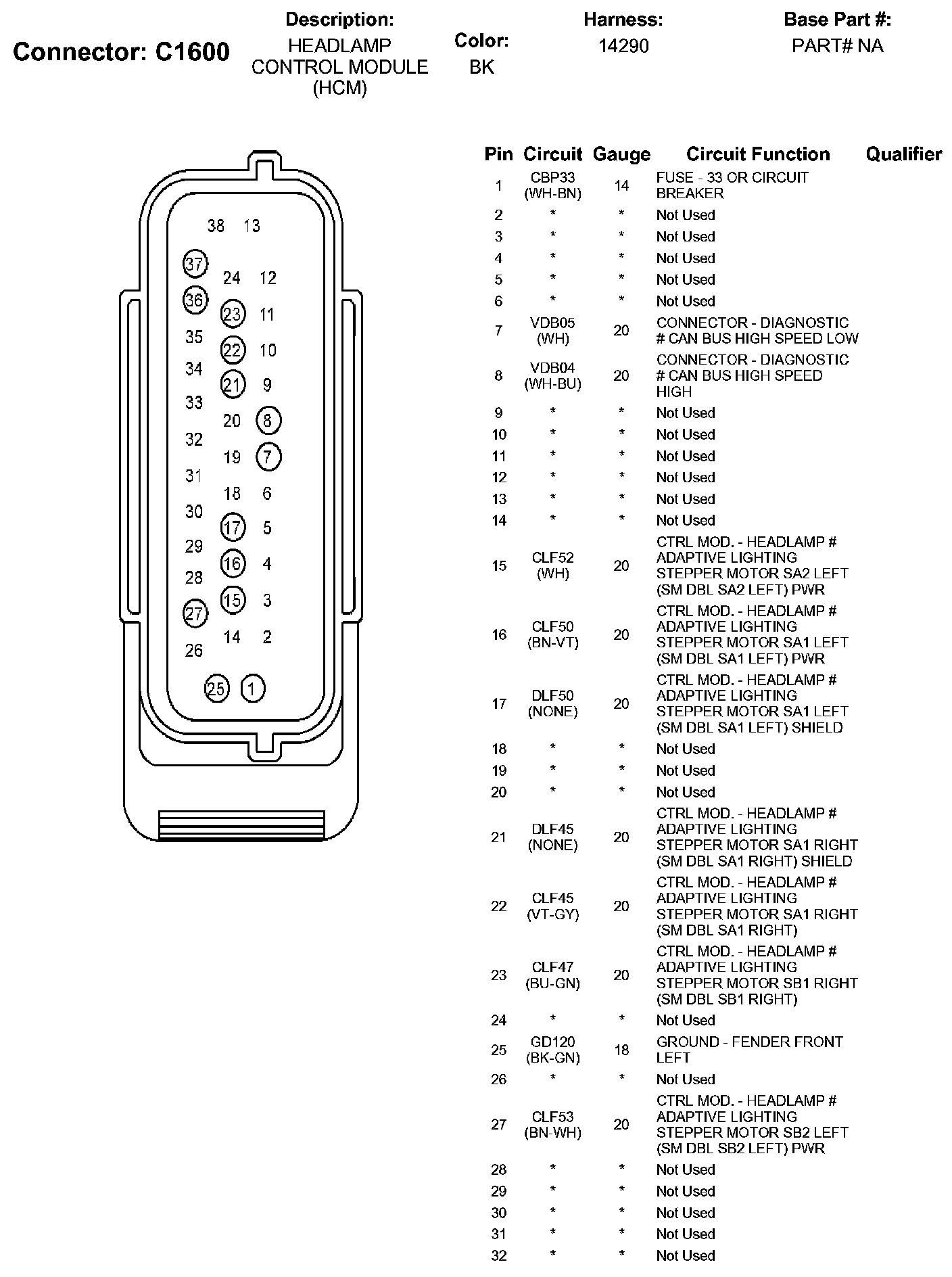

Headlamp Control Module

Part 1:



Part 2:
