Home >> Lincoln >> 2009 >> MKS AWD V6-3.7L >> Repair and Diagnosis >> Power and Ground Distribution >> Fuse >> Locations >> Power Distribution Box

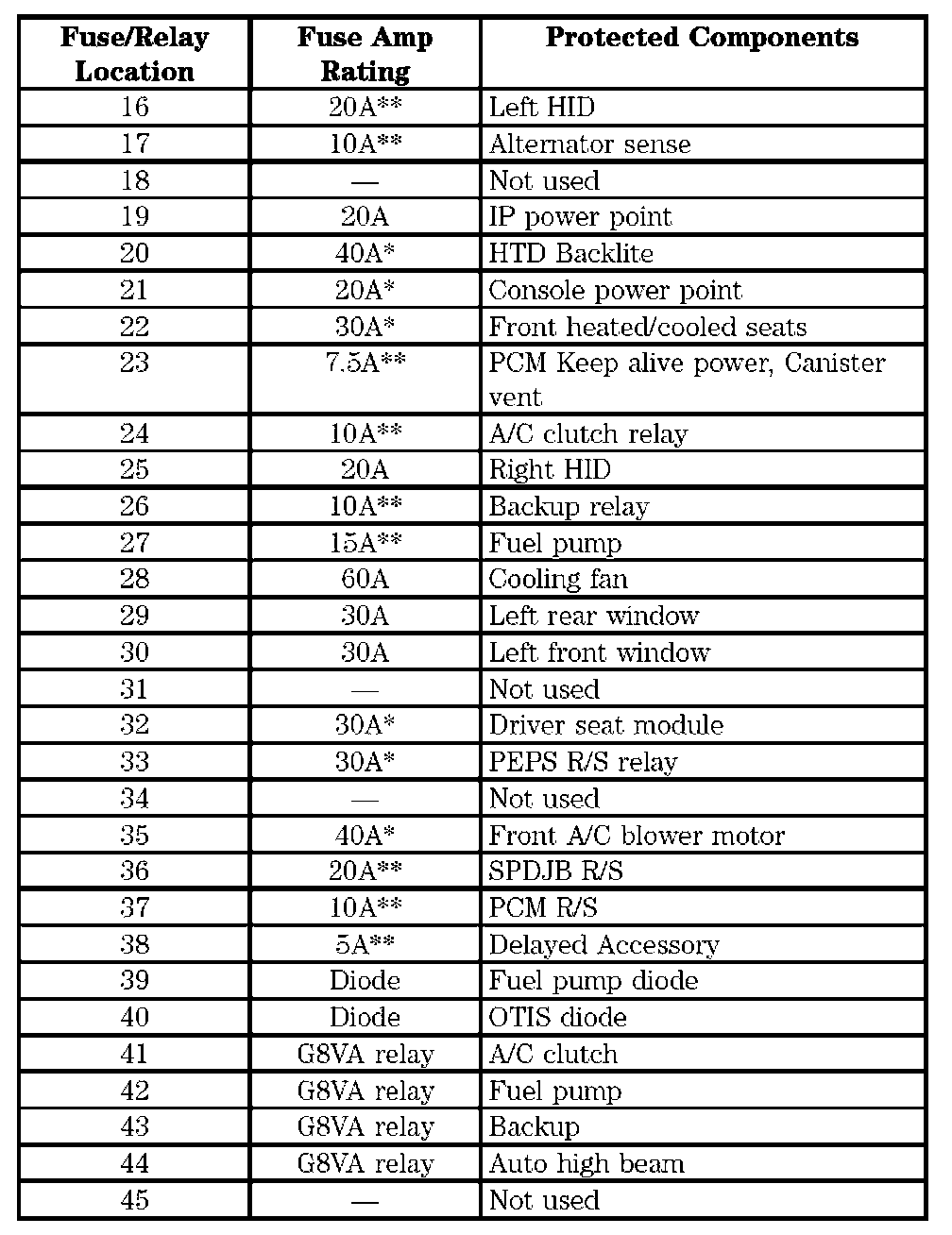

Power Distribution Box

Note: Thw power distribution panel is located in the engine compartment.
