Home >> Lincoln >> 2009 >> MKS AWD V6-3.7L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Seat Occupant Sensor >> Occupant Classification Sensor (OCS) 2

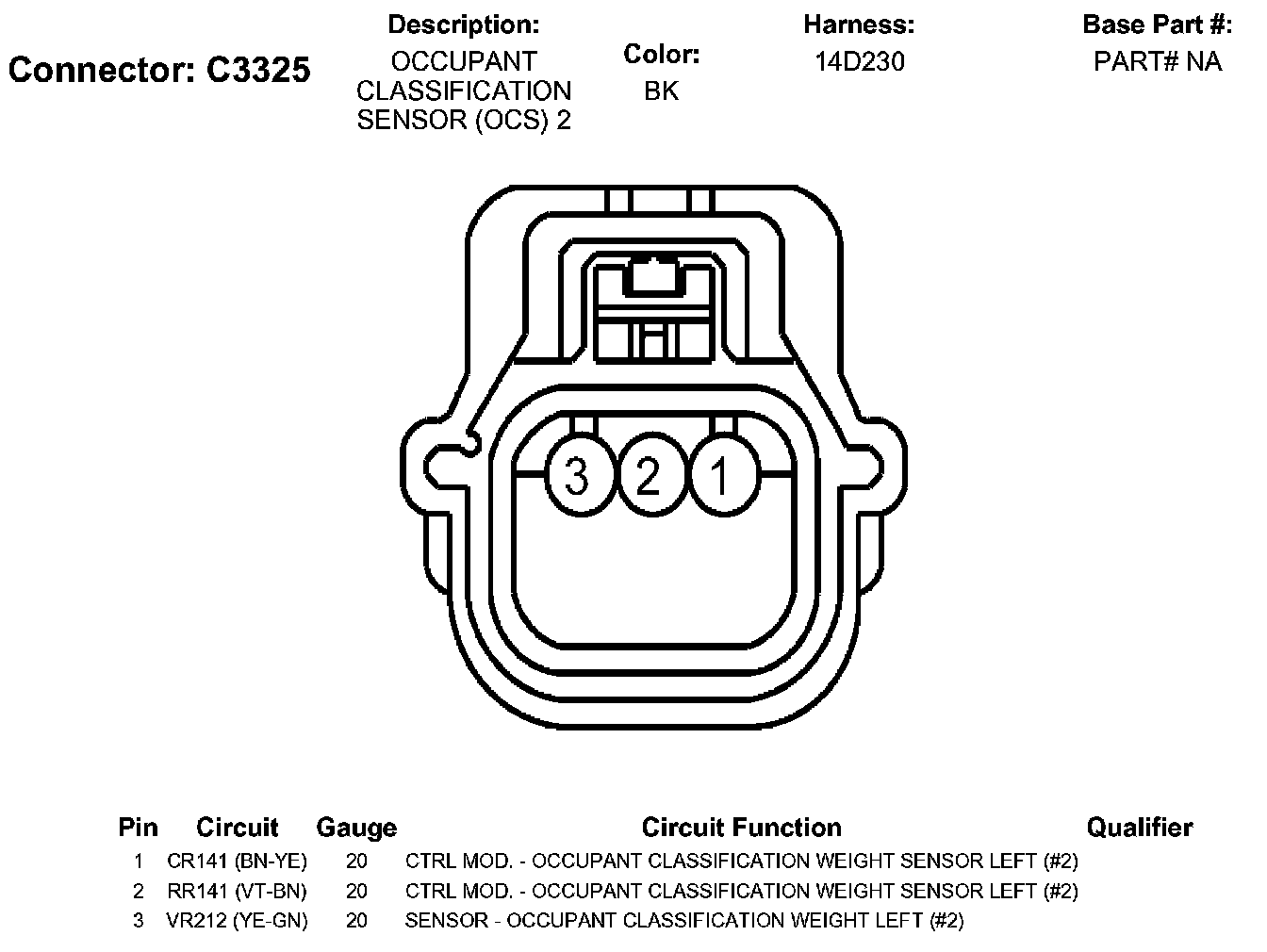

Occupant Classification Sensor (OCS) 2
