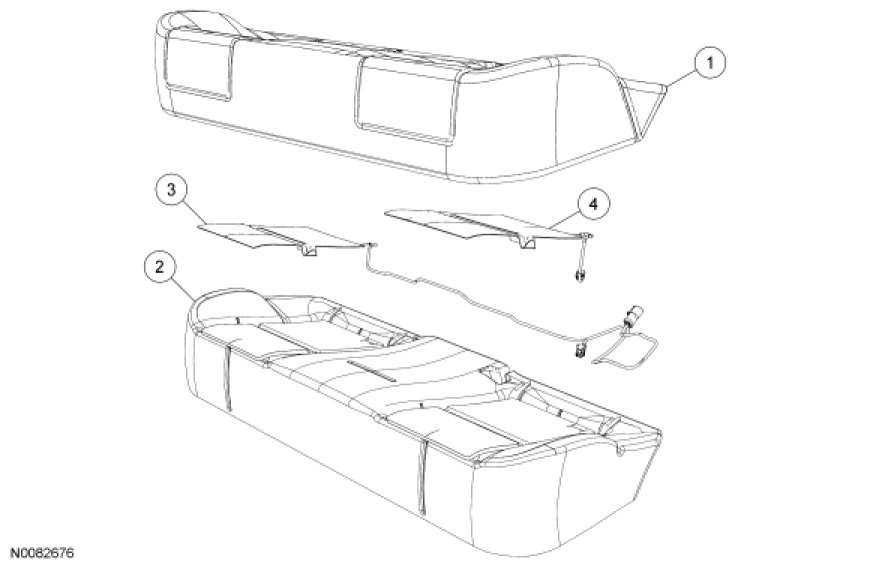

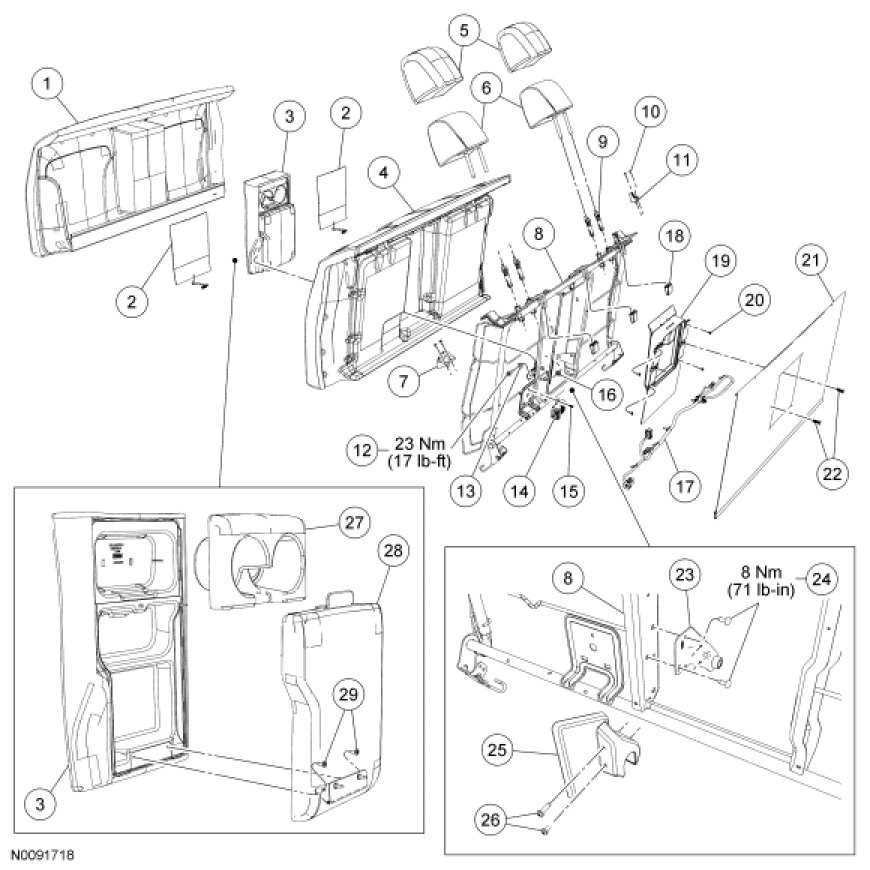

Seat - Exploded View, Rear




Seat - Exploded View, Rear



















1. For additional information, refer to the procedures.
