Home >> Lincoln >> 2008 >> Mark LT 2WD V8-5.4L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Seat Temperature Control Module >> Heated Seat Module, Driver Side Front

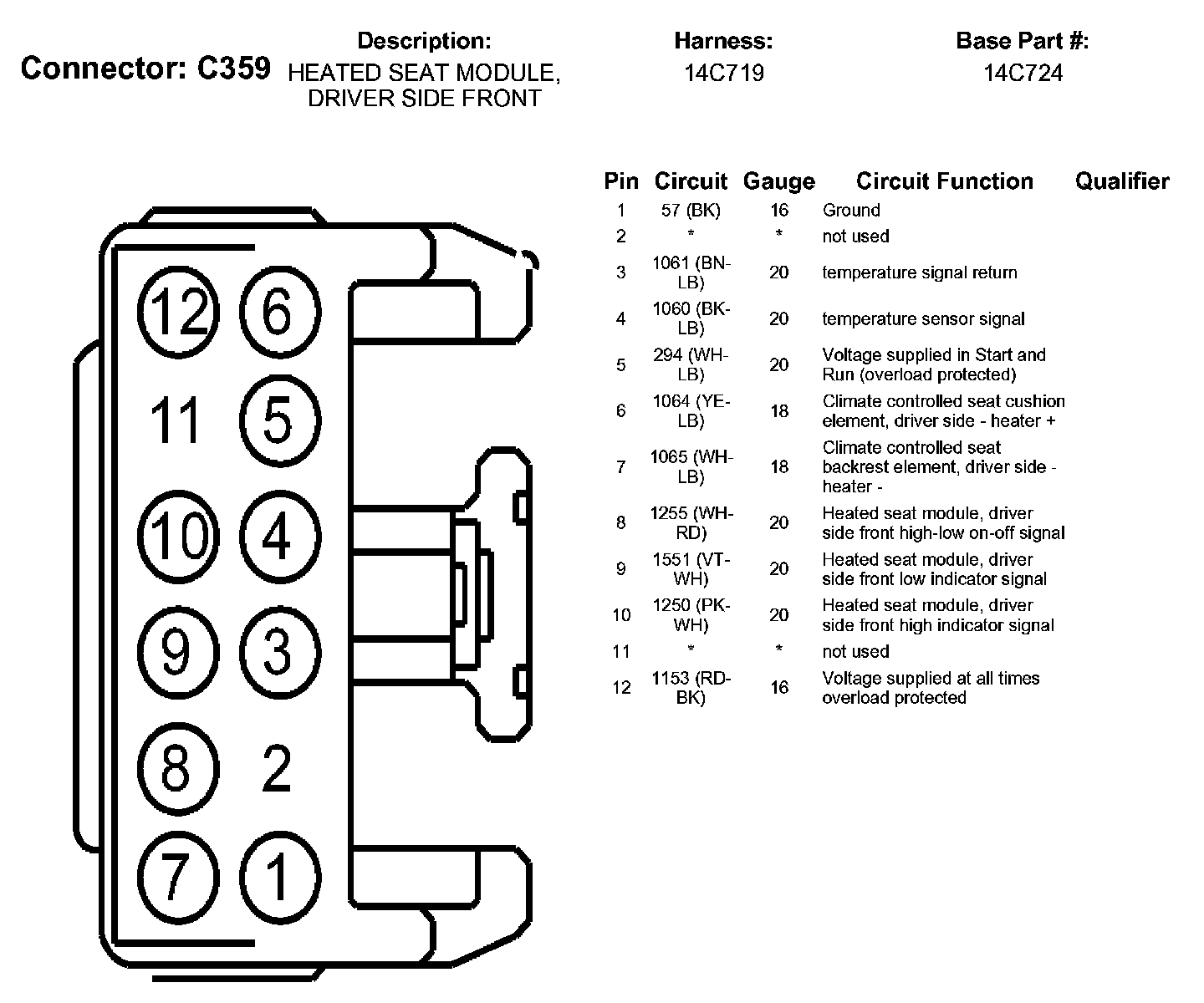

Heated Seat Module, Driver Side Front

C359:
