Smart Junction Box (SJB)

ALLDATA Editor's Note: Ford identifies this one component by 2 different names. Users have reported success comparing these images to determine Application/ID or Location of Fuses and Relays with the Smart Junction Box / Passenger Compartment Fuse Panel.

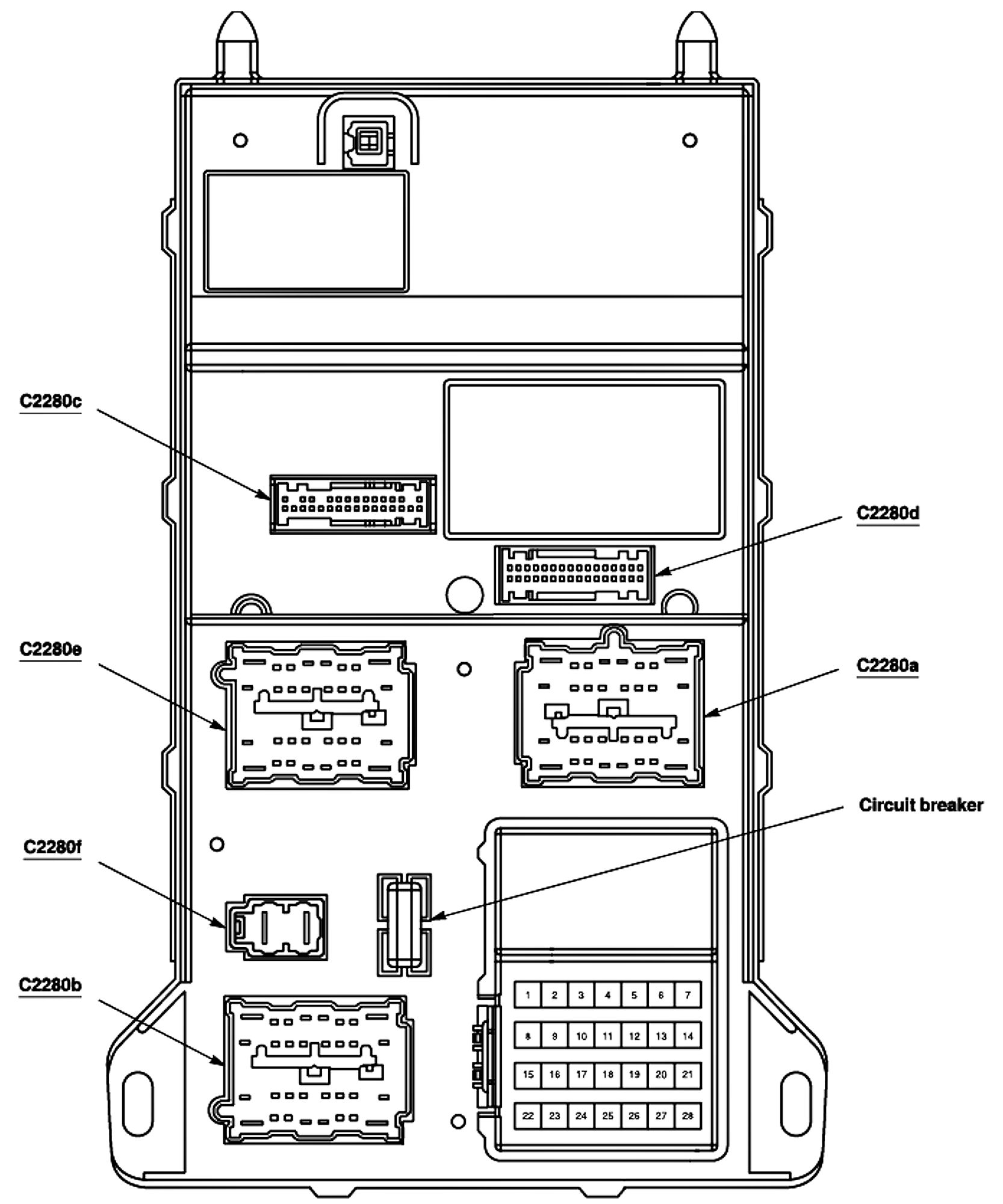

Smart Junction Box (SJB) / Passenger Compartment Fuse Panel:

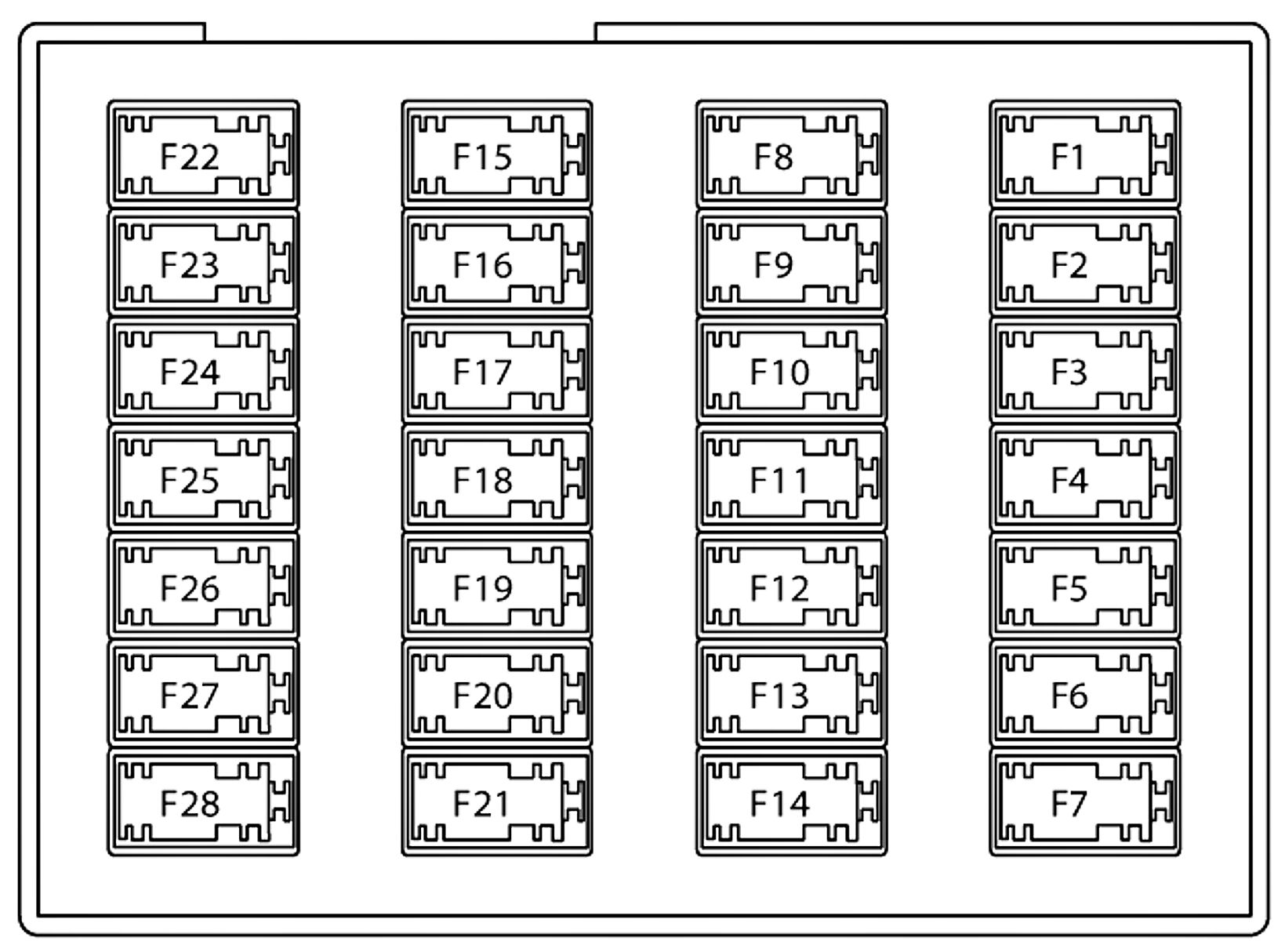

Fuse:

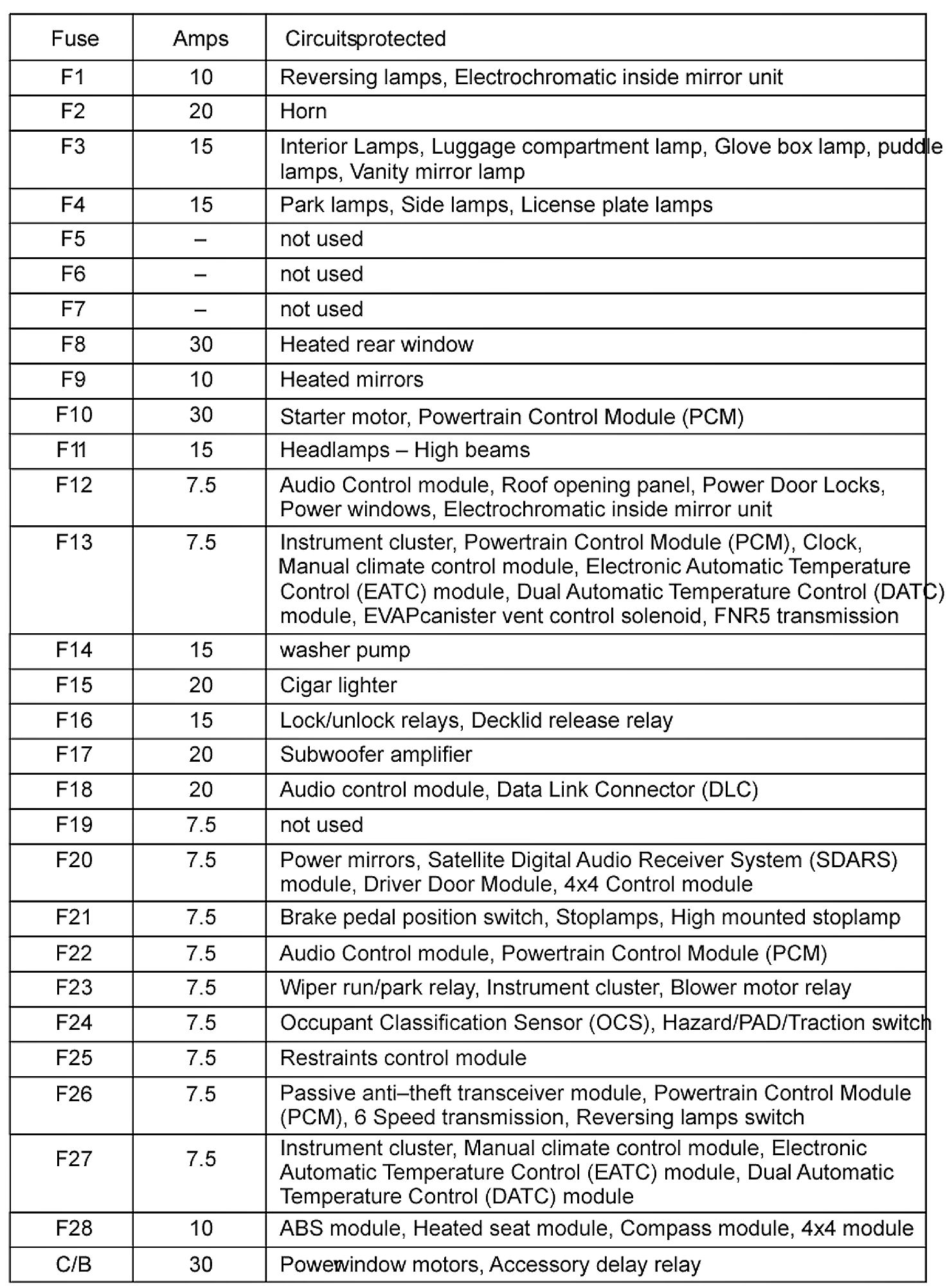

Smart Junction Box (SJB) / Passenger Compartment Fuse Panel:
